Chart 8 Check Engine Warning Light
Chart 8 Check Engine Warning Light

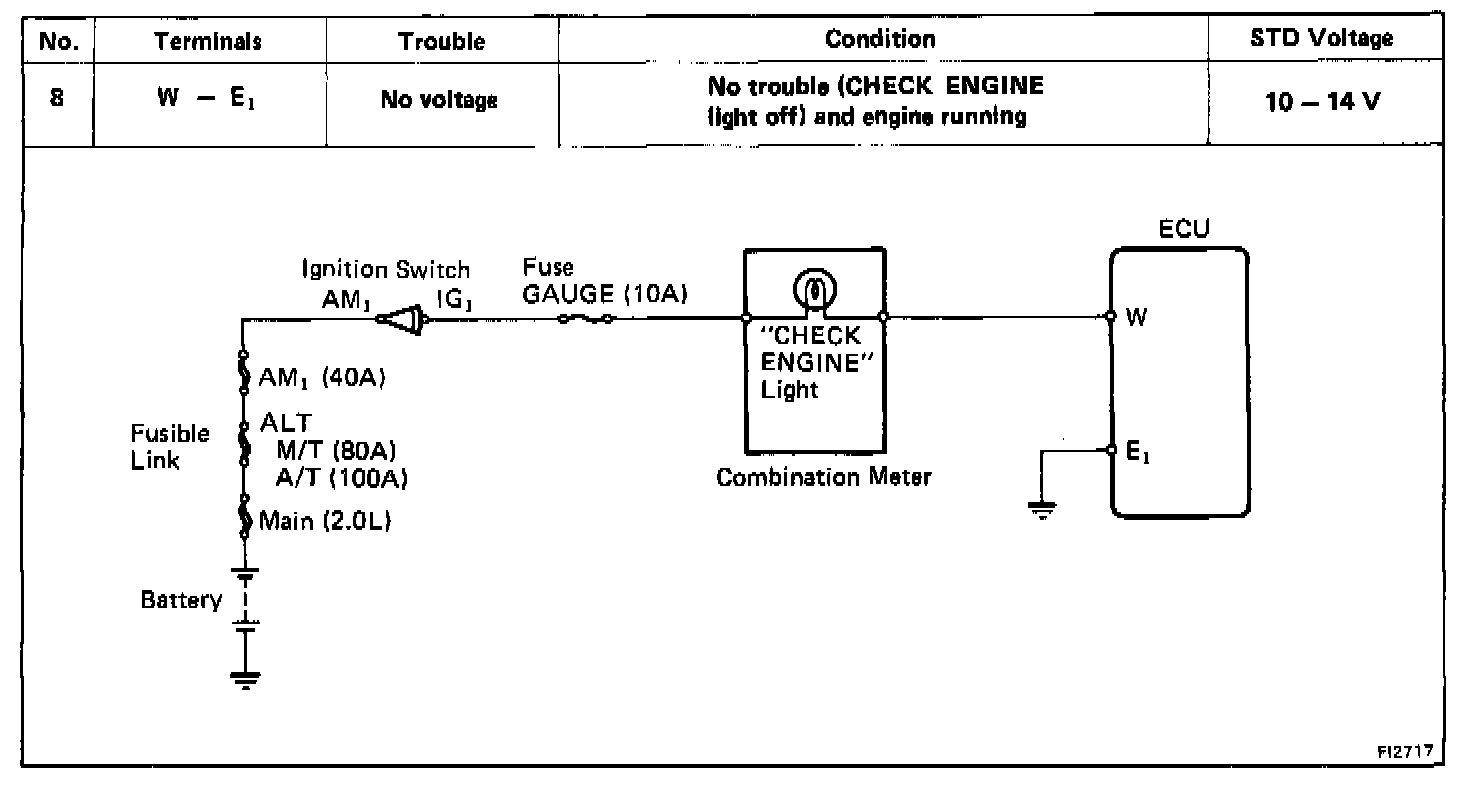

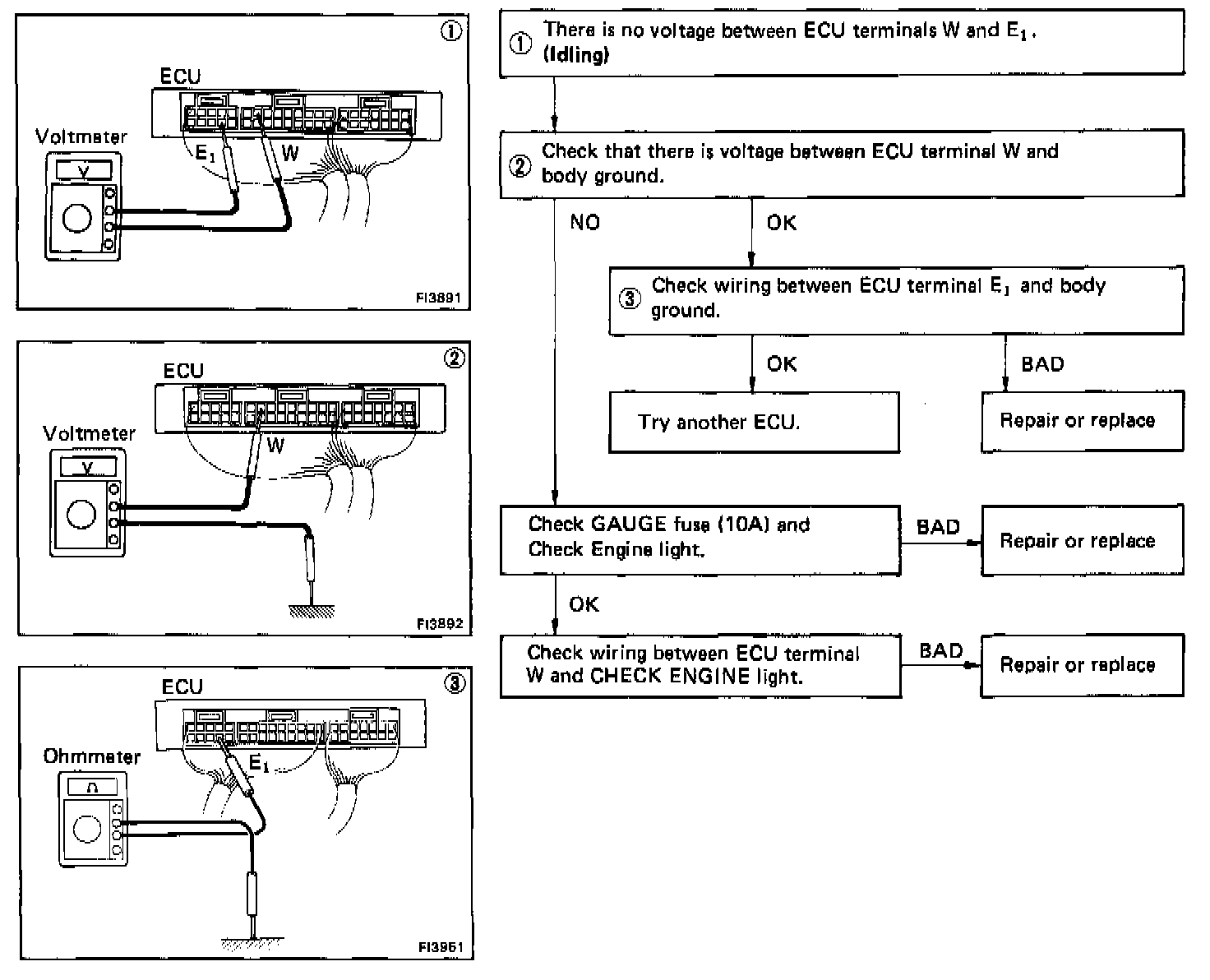

Chart No. 8 - No "Check Engine" light
