Chart 4 Water Temperature Sensor
Chart 4 Water Temperature Sensor

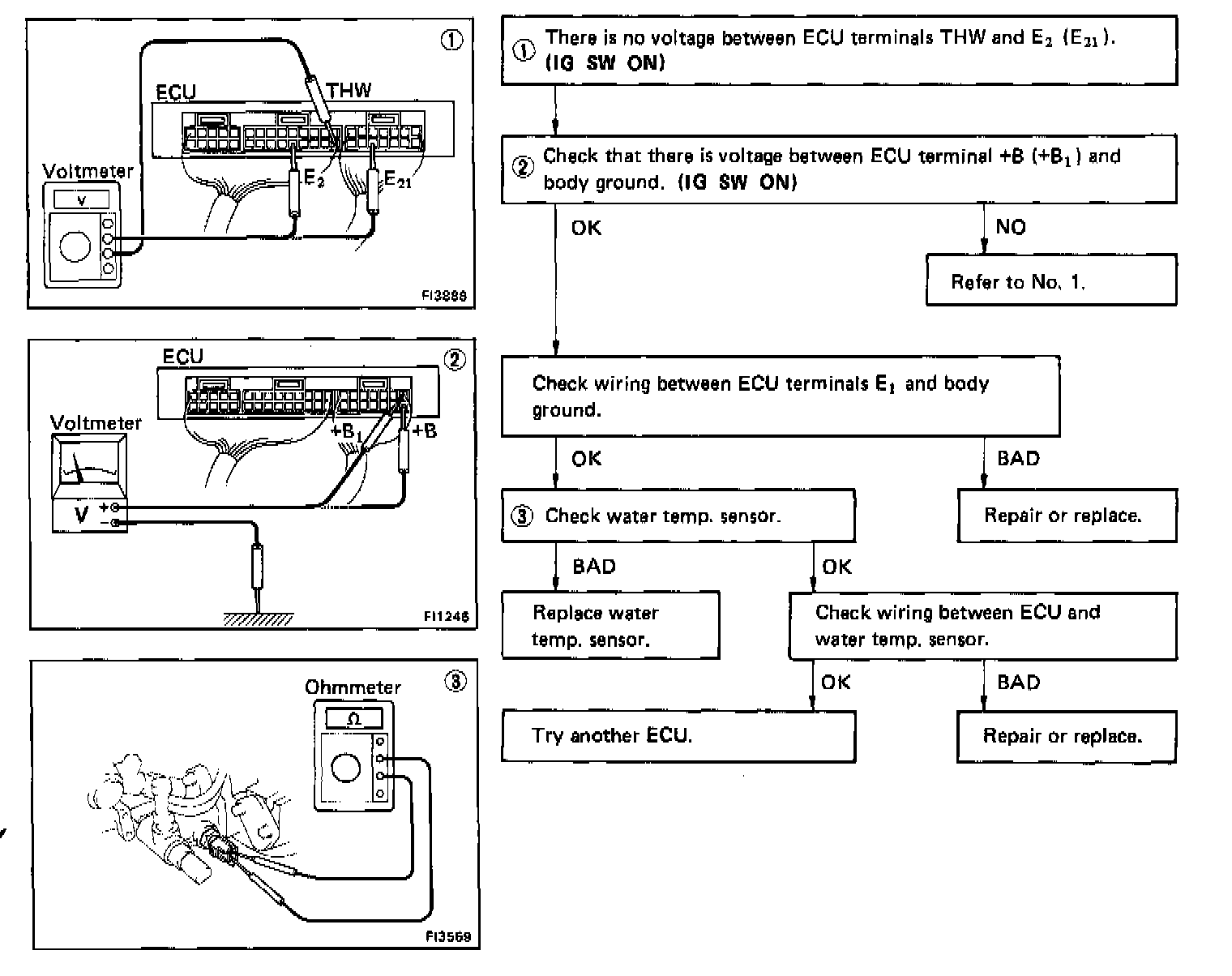

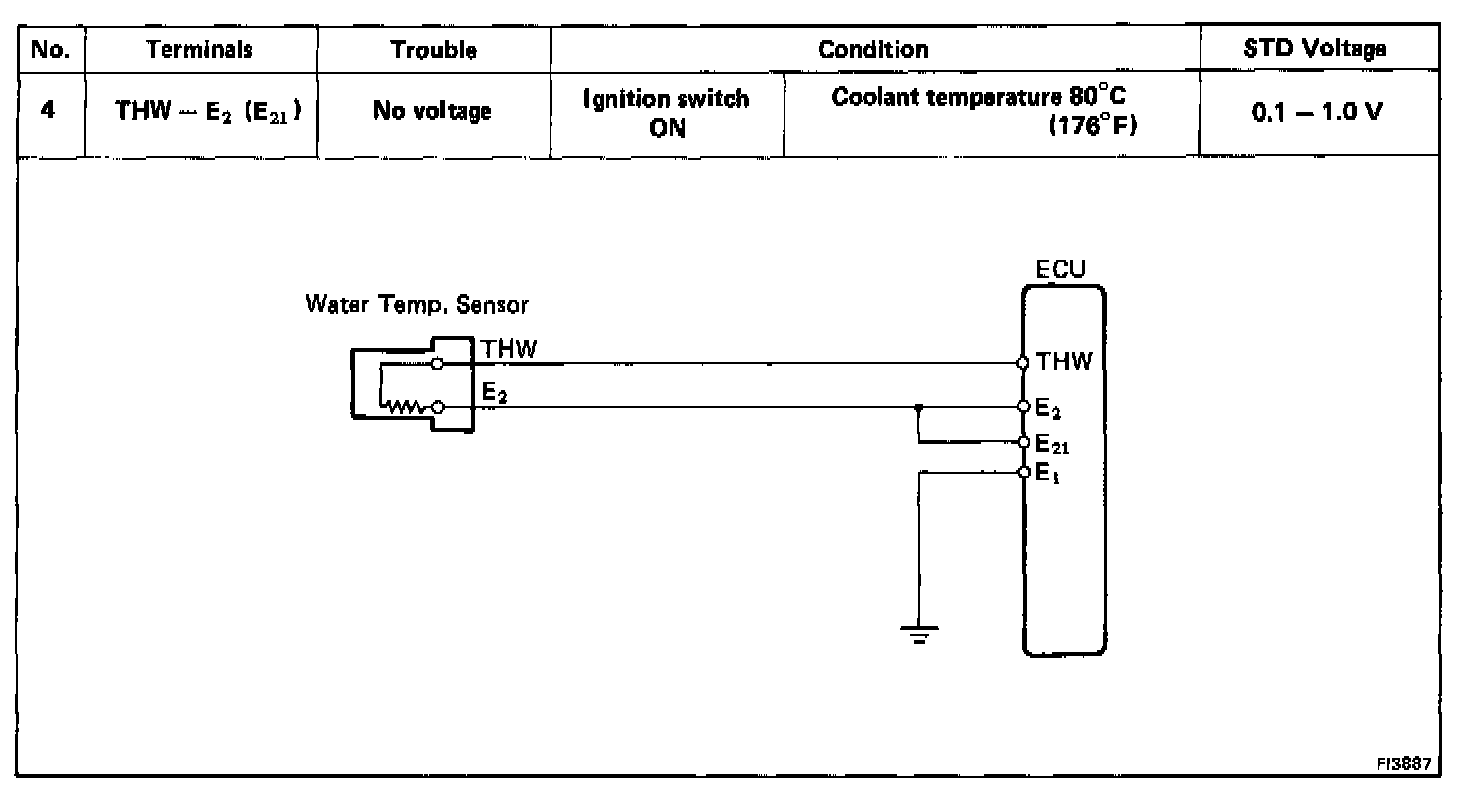

Chart No. 4 - Water temperature sensor
