Chart 3 Air Flow Meter / Air Temperature Sensor
Chart 3 Air Flow Meter / Air Temperature Sensor

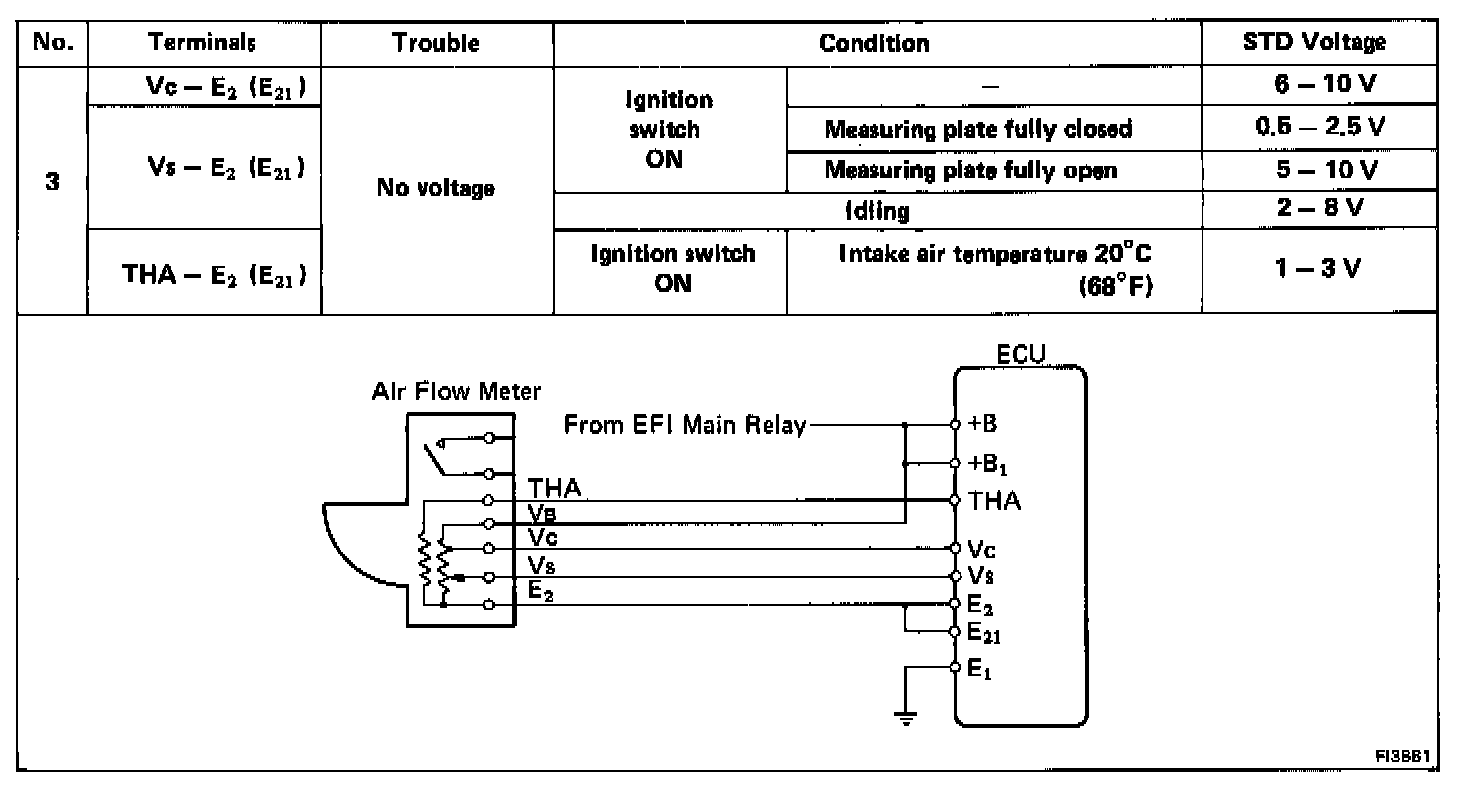

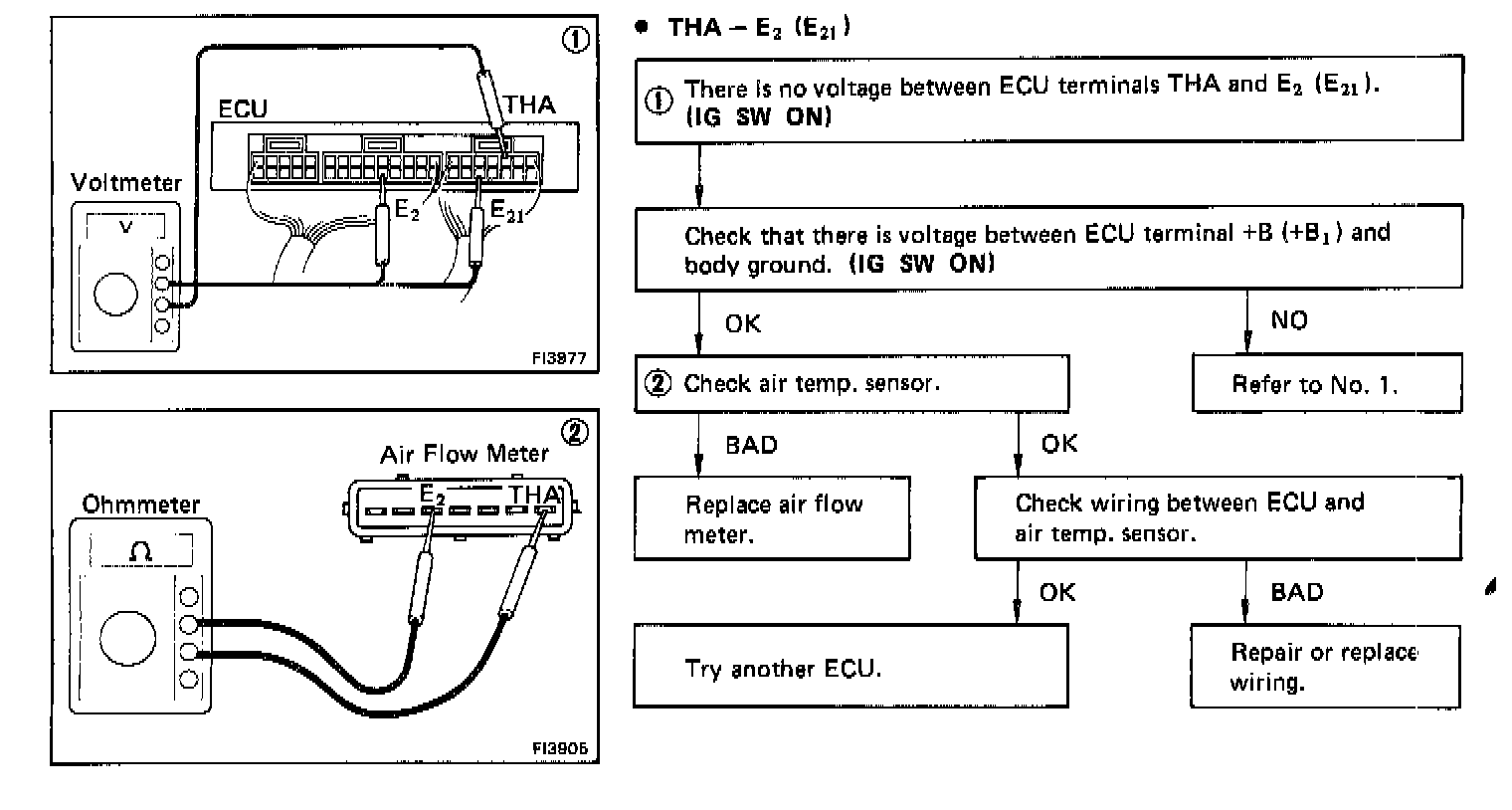

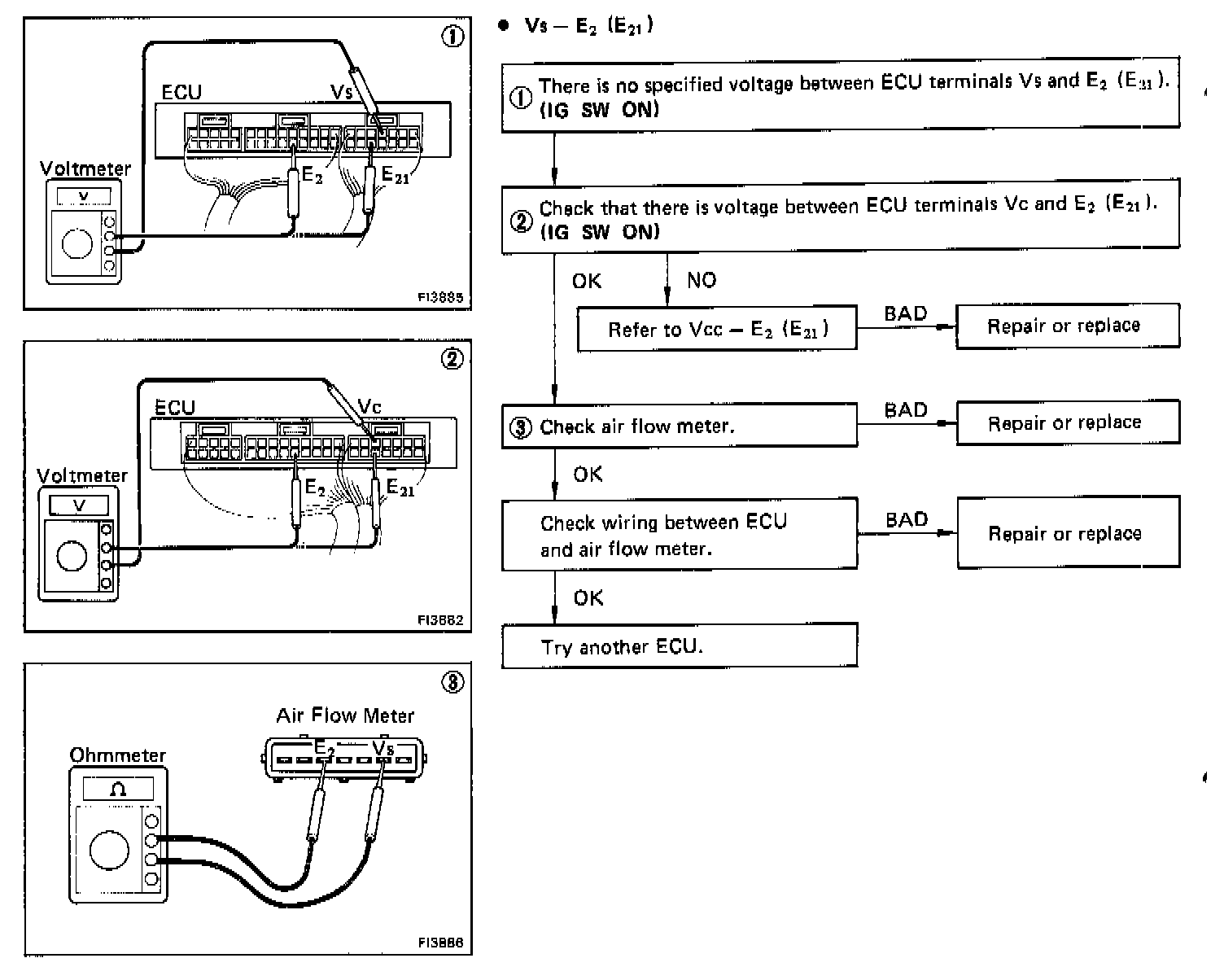

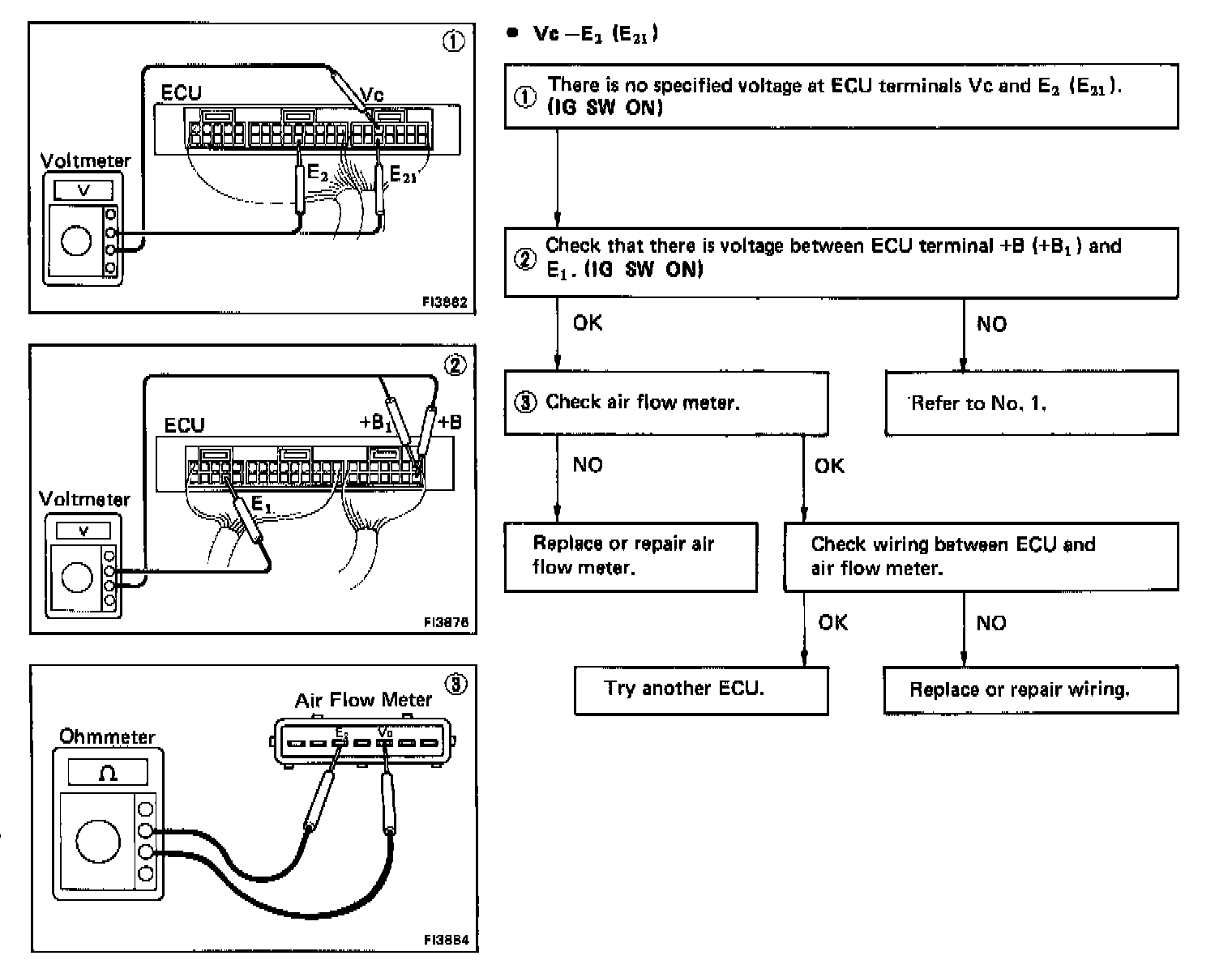

Chart No. 3 - Air flow meter
