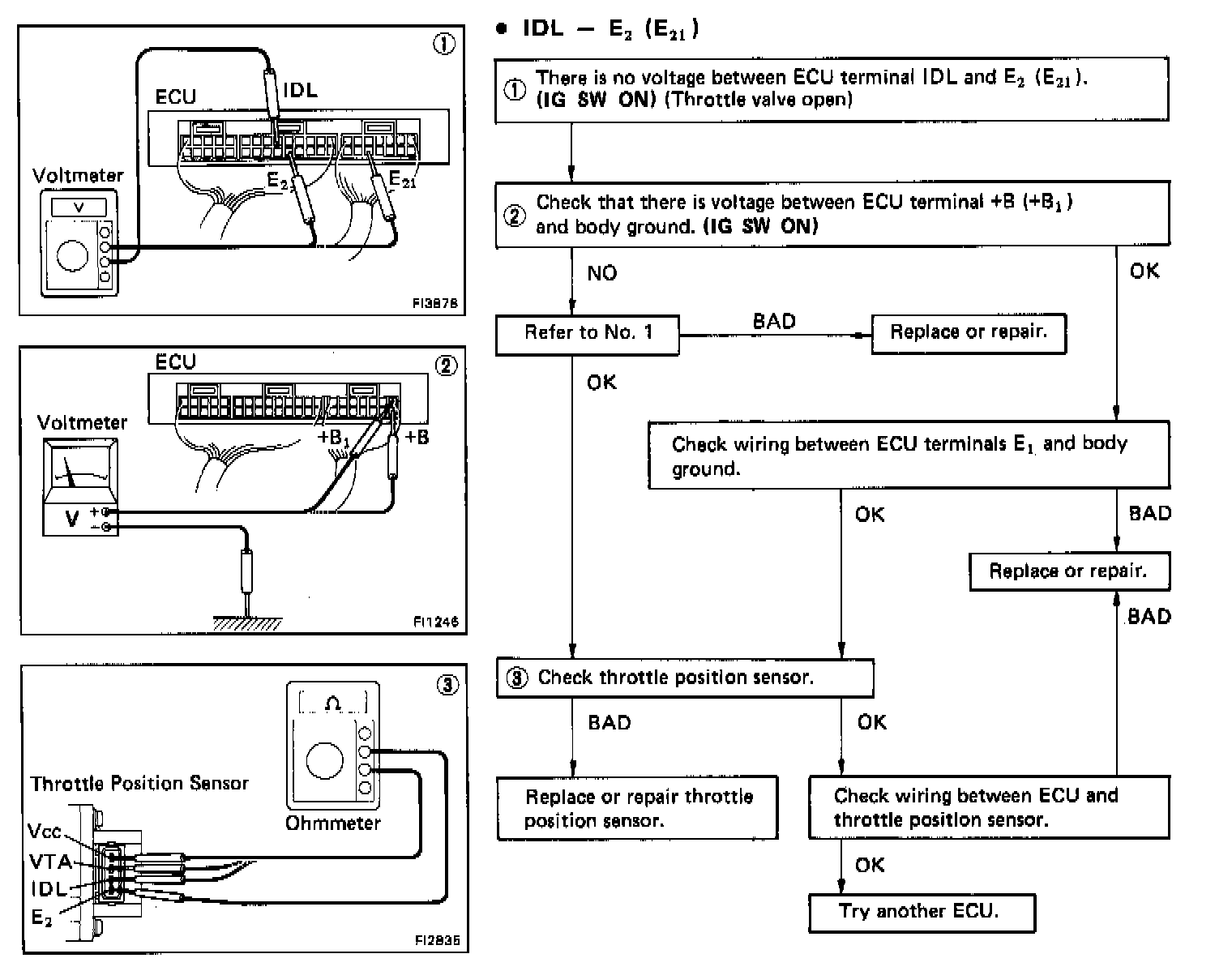

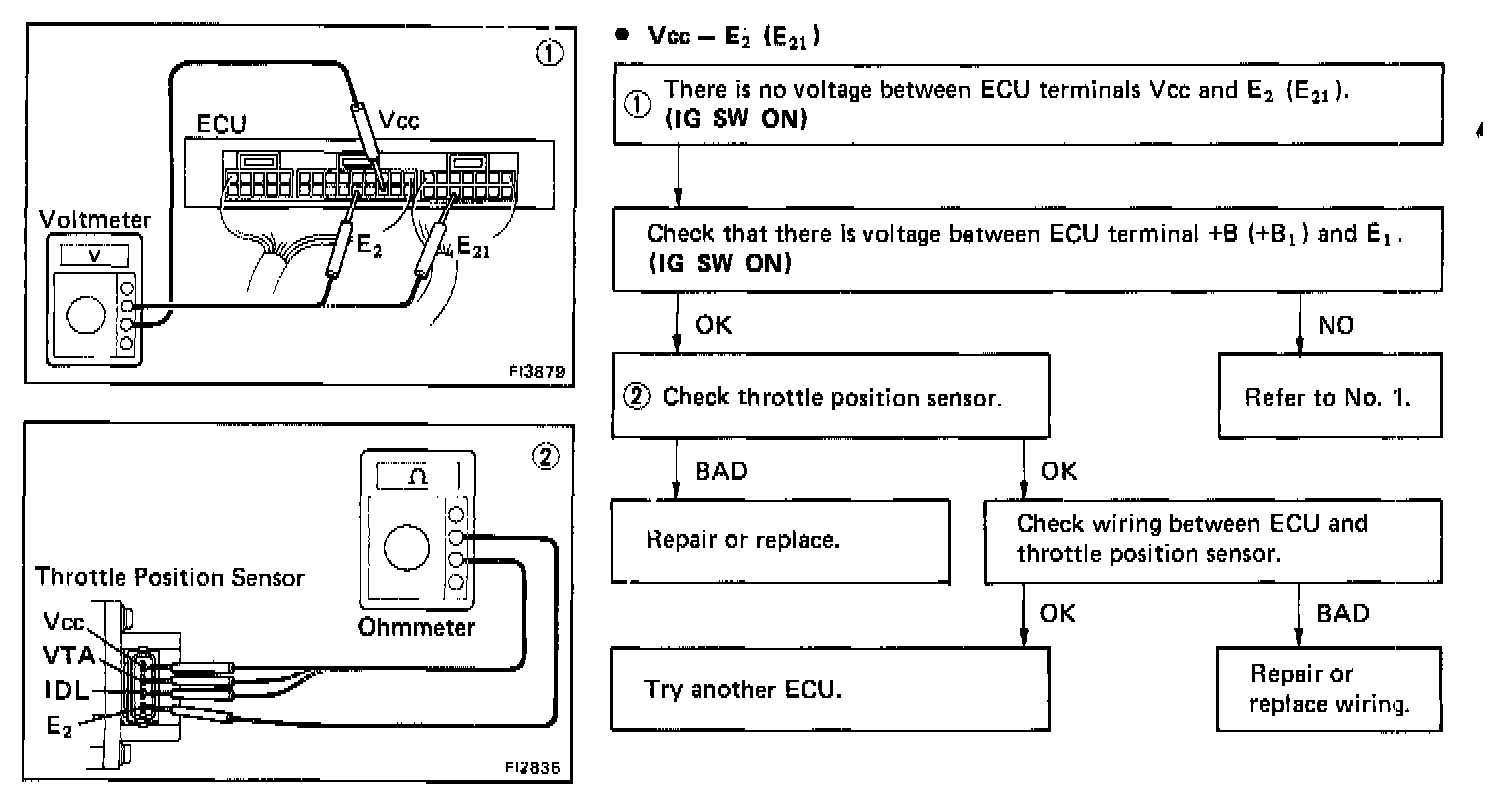

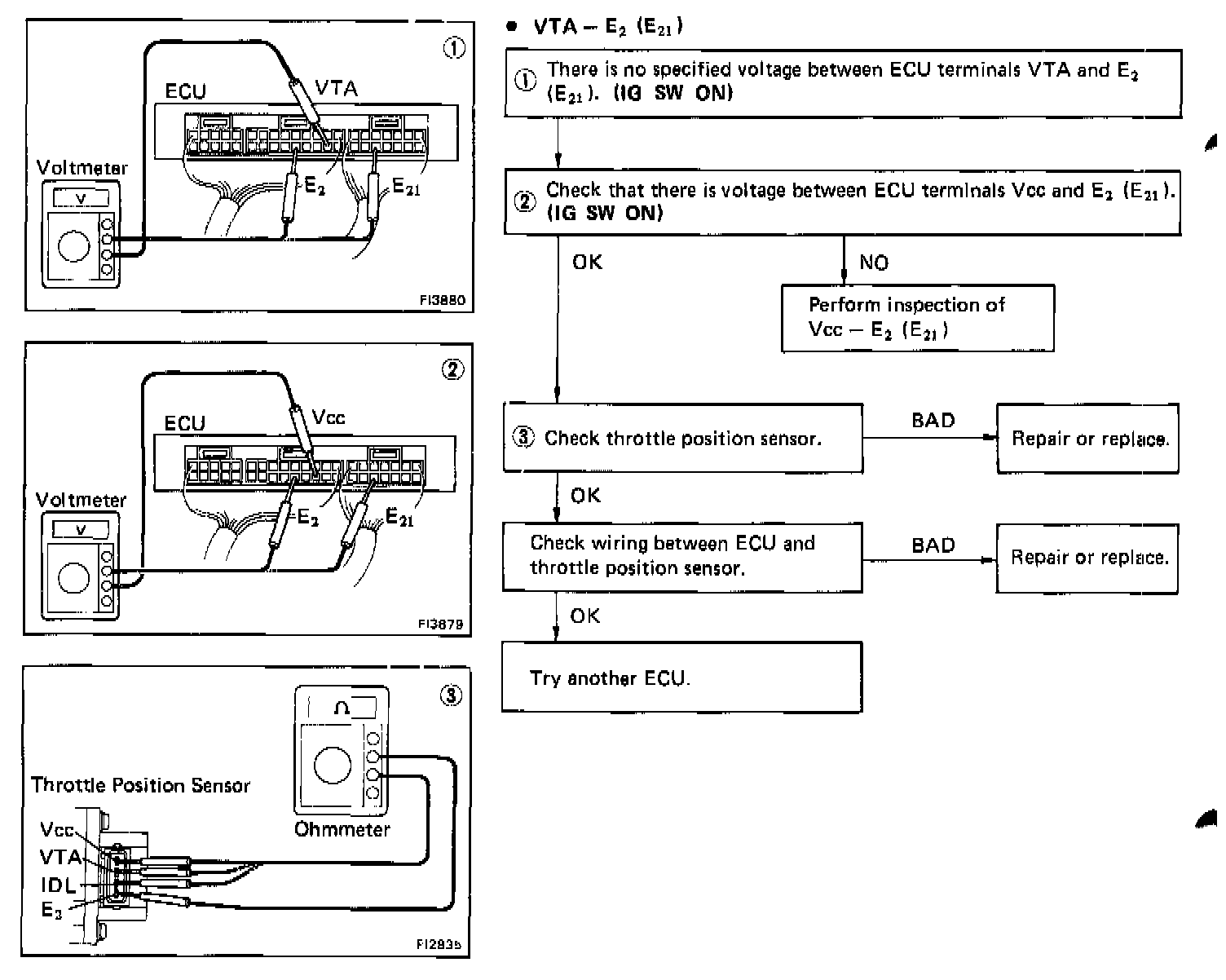

Chart 2 Throttle Position Sensor
Chart 2 Throttle Position Sensor

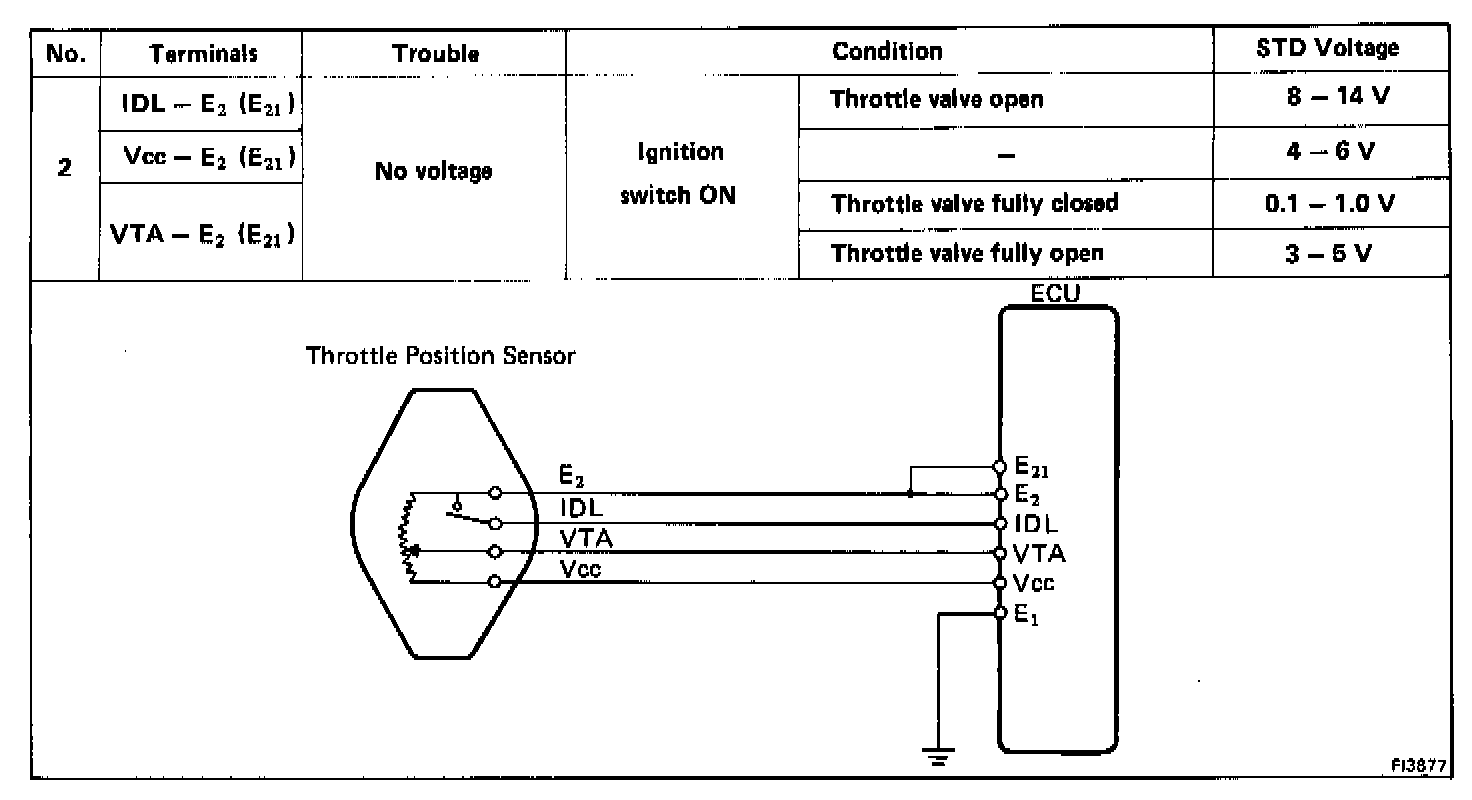

Chart No. 2 -
Throttle position sensor
