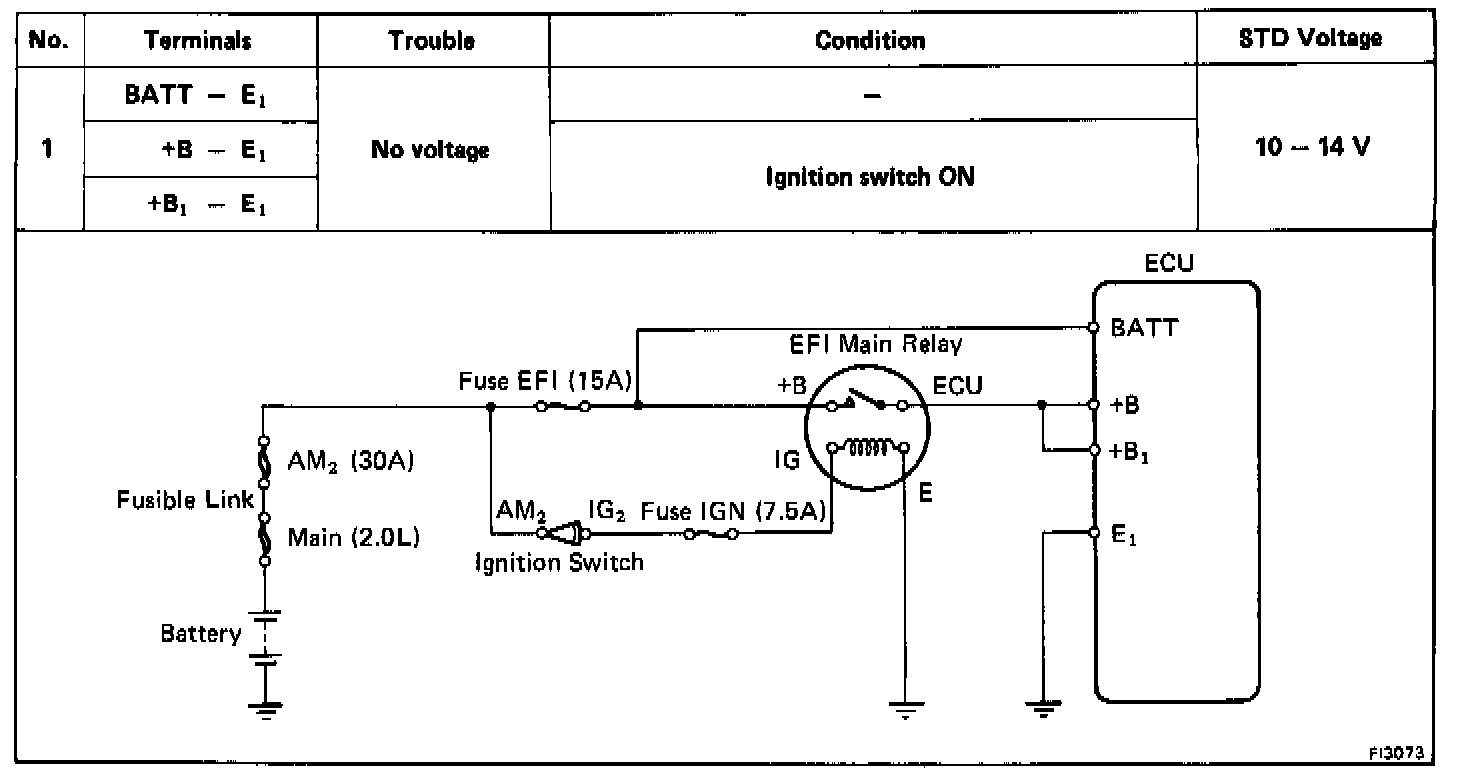

Chart 1 ECU Power Supply / Main Relay
Chart 1 ECU Power Supply / Main Relay

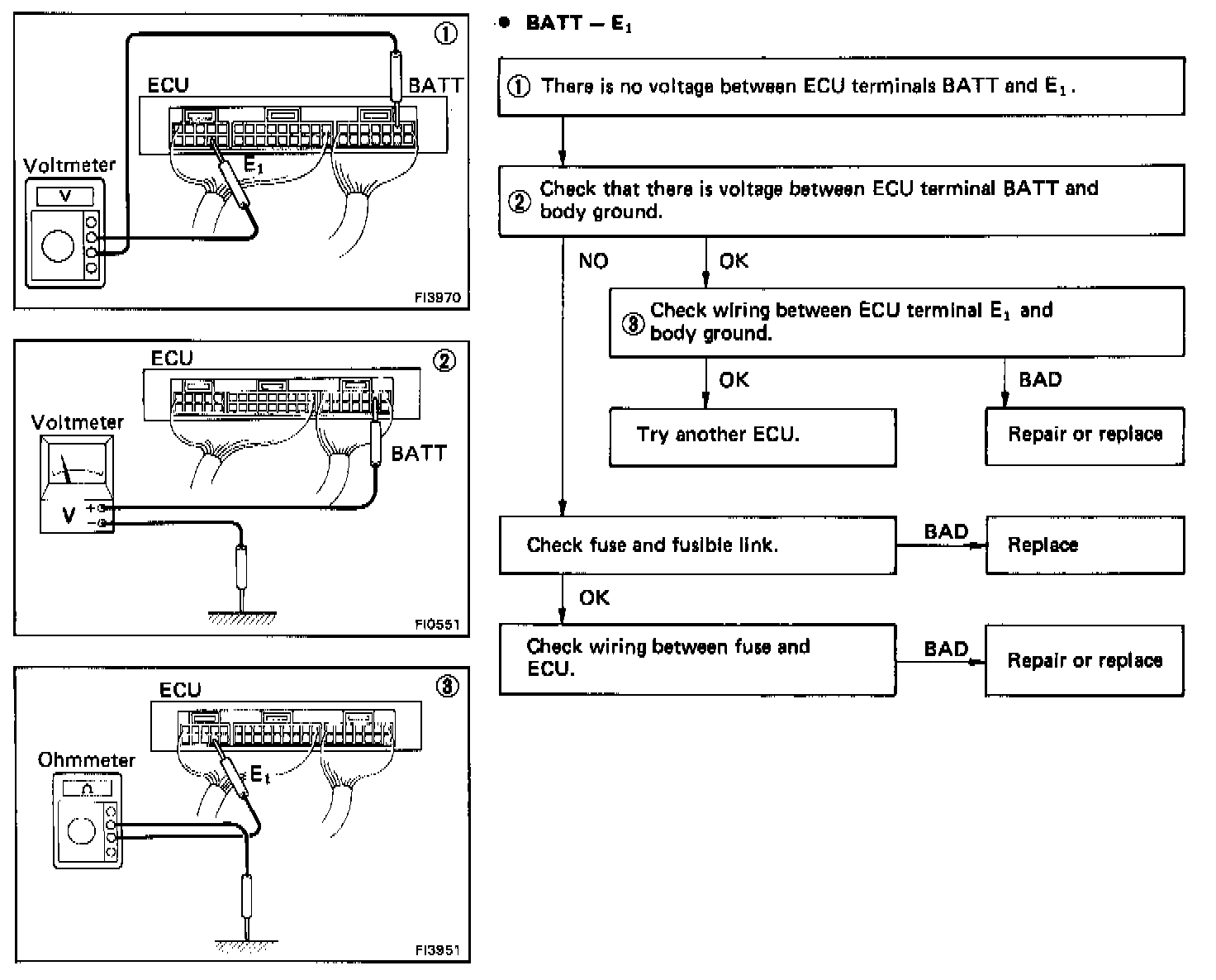

Chart No. 1 - No voltage between ECU terminals BATT and E1
