"Check Engine" Light Circuit Test (Except 4WD A/T)
"Check Engine" Light Circuit Test (Except 4WD A/T)

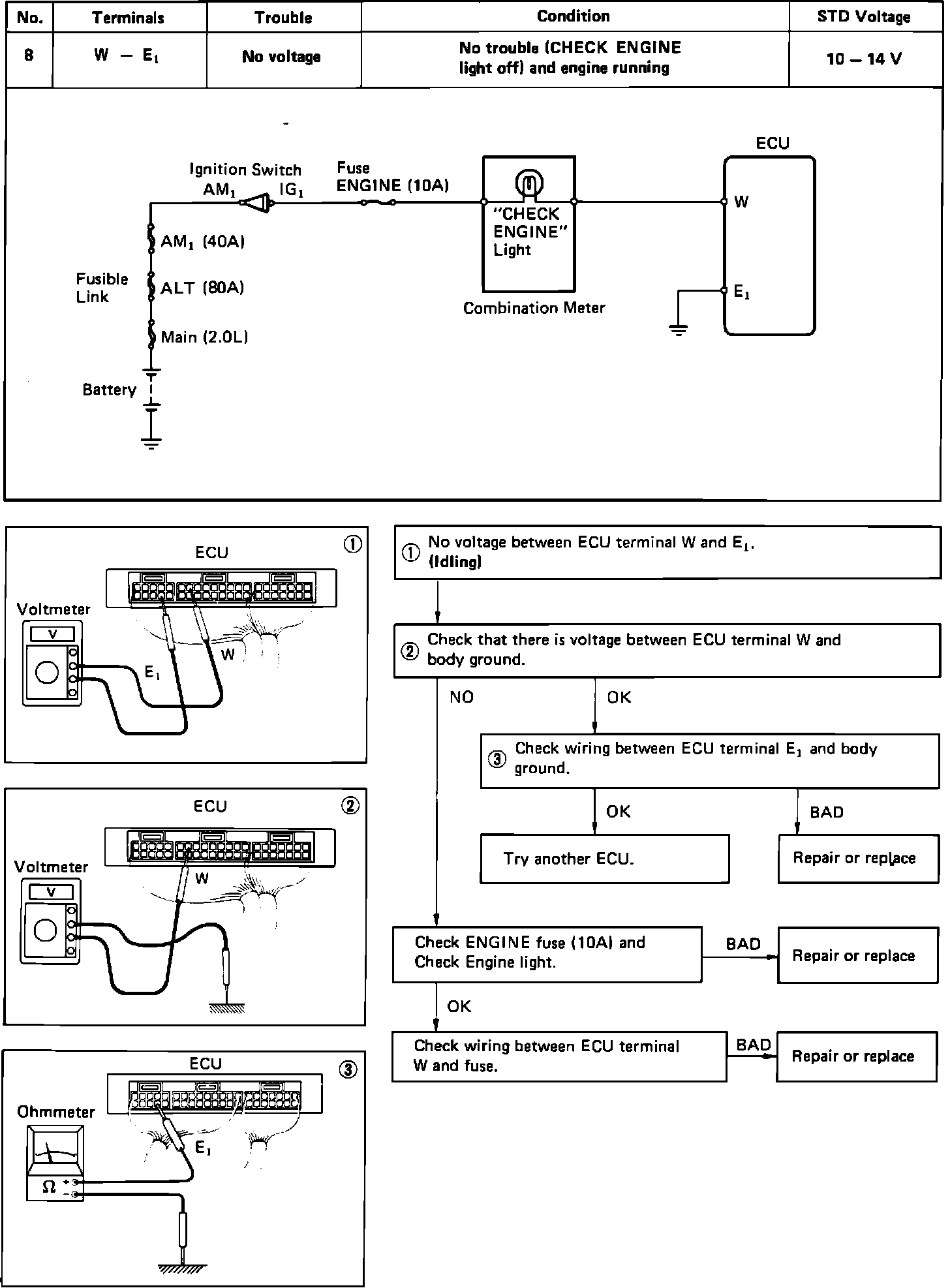

"Check Engine" Light Circuit Test:
