A/T Technical Data
A/T Technical Data

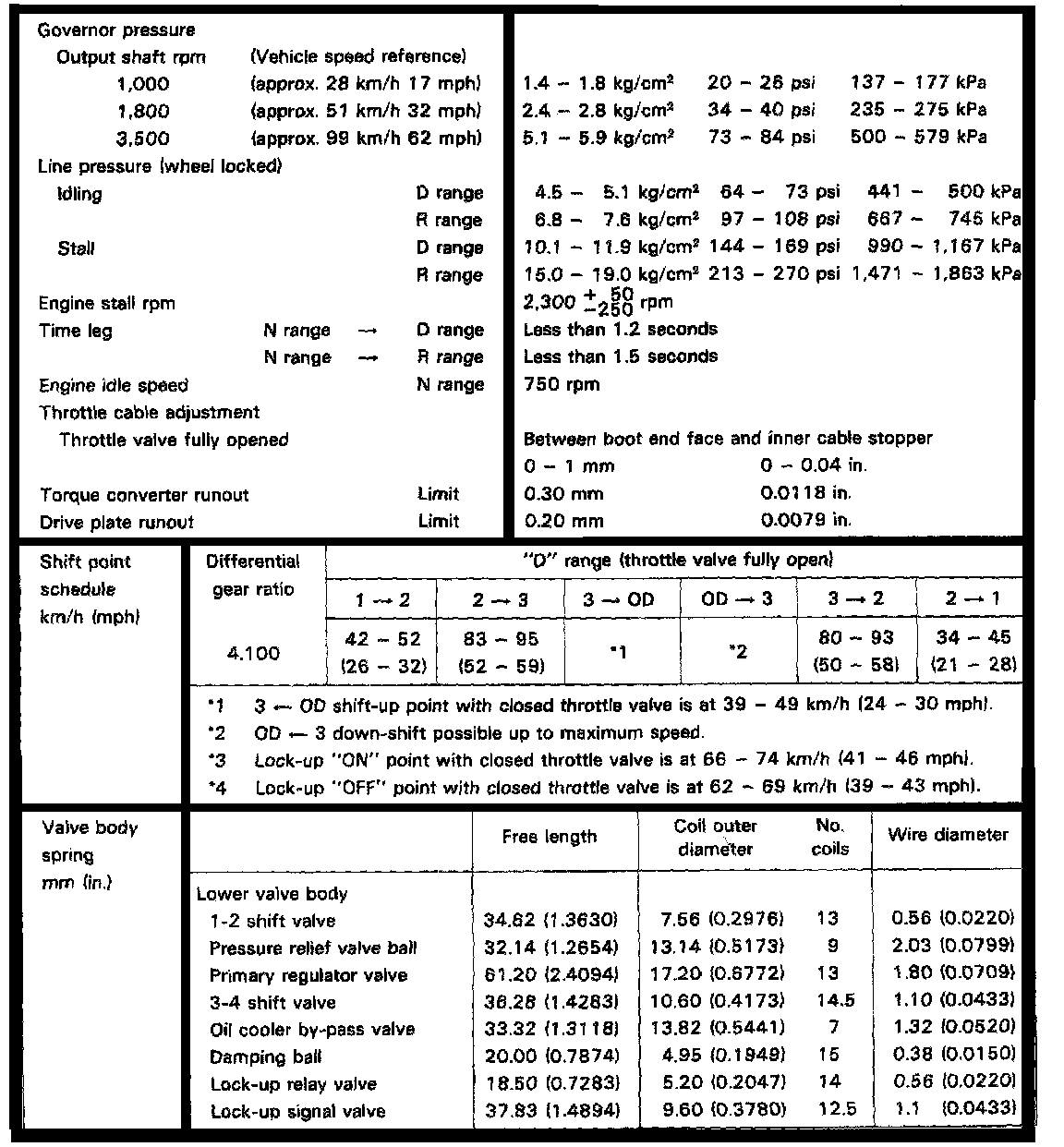

A45DF/DL 3-spd O/D A/T, Pressure/Shift Points:

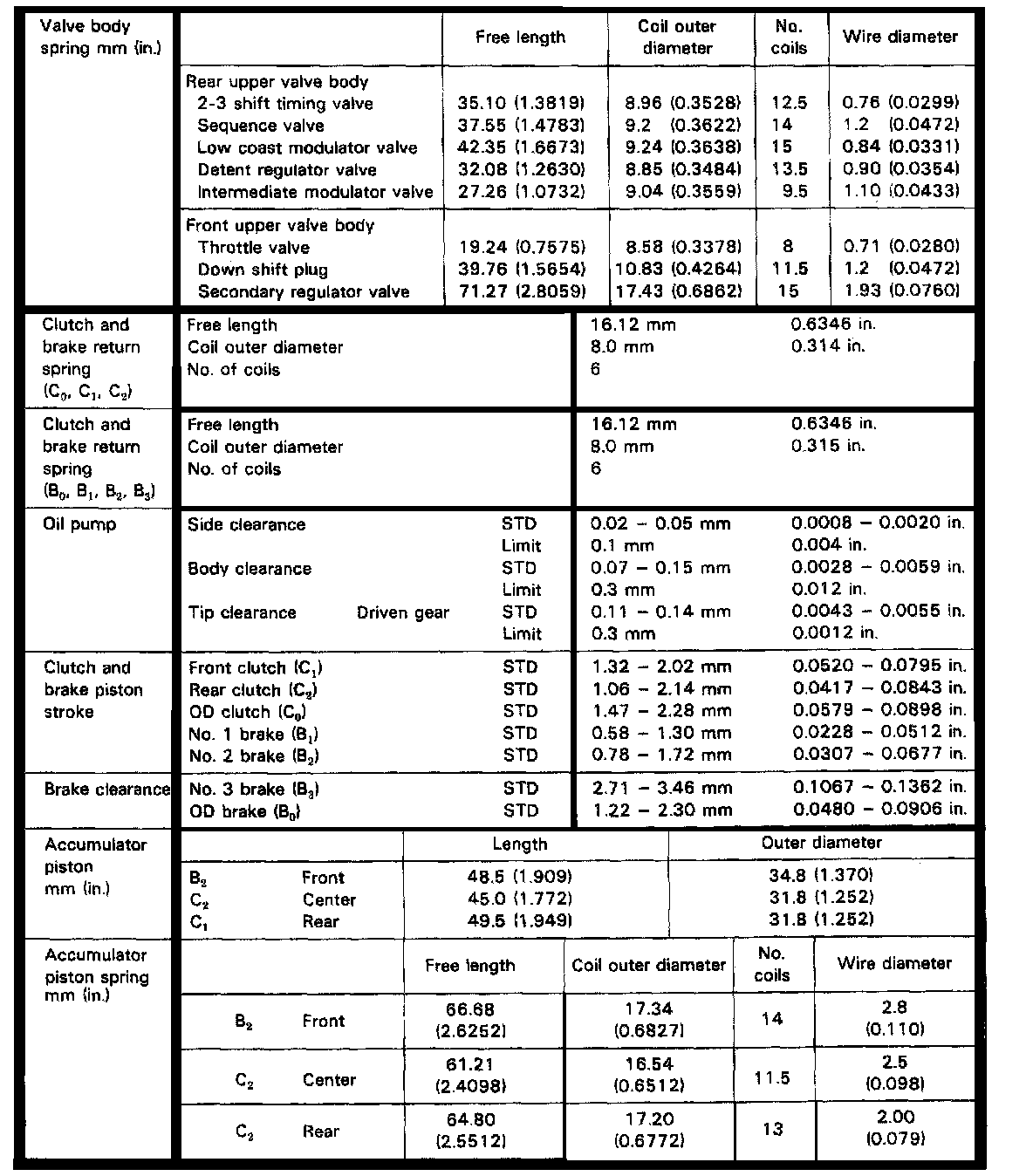

A45DL/DF 3-SPD O/D A/T, Valve Body/Clutch And Brake:
A45DL/DF 3-spd O/D A/T, Bushing Clearance:
