Windshield Washer - Performance Lags
REFERENCE BODYNUMBER 006
DATE 5-31-85
MODEL YR
CONDITION:
Windshield washer fluid weeps from washer nozzles. Washer performance lags as system pressurizes.
POSSIBLE CAUSE:
Hose material expands and contracts as system is cycled.

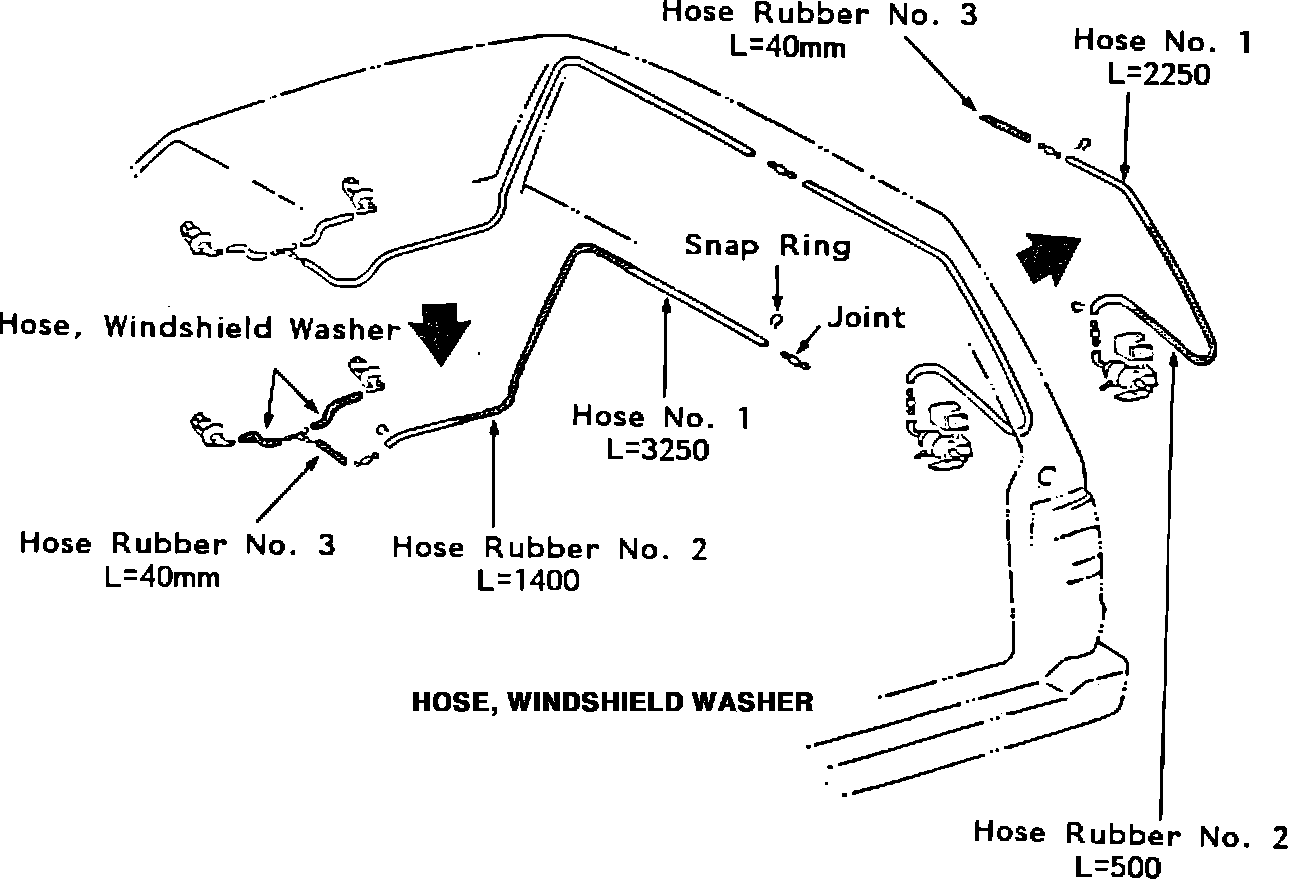

Hose, Windshield Washer:
CORRECTION:
Hose material has been changed to a more rigid type, reducing the above condition. Also a more positive connection is made using snap rings at each hose connector with the exception of the hose from the Tee to the washer nozzles.
PRODUCTION EFFECTIVE:
Applicable Models VIN Production Date
YR22, YR26 JT3YR2#V*F5059480 December 1984
YR27 JT4YR27V*F0023690 December 1984
PART NUMBER INFORMATION:
Previous Part Number New Part Number Part Name
90446-06013 * 90099-33299 Hose windshield washer
90099-33332 Hose No. 3
85343-87003 * 85343-87002 Hose No. 1 Front
85343-87005 Hose No. 2 Front
85343-87002 85354-87001 Hose No. 1 Rear
* 85343-87004 Hose No. 2 Rear
85369-28030 Ring, Snap
Note: * Previous vehicles must change these parts as a set only.
