M/T - Shift Fork Snap Ring Modifications
89toyota10TRANSMISSION &
REFERENCE CLUTCH
NUMBER 018
DATE 10-06-89
MODEL YR2#, YR3, RN5#
TITLE G SERIES M/TM SHIFT FORK SHAFT SNAP RING MODIFICATIONS
To increase the retention and improve the durability of the shift fork snap rings, the following modifications have been made:
1) The thickness of the snap ring has been increased 1 mm - 1.5 mm.

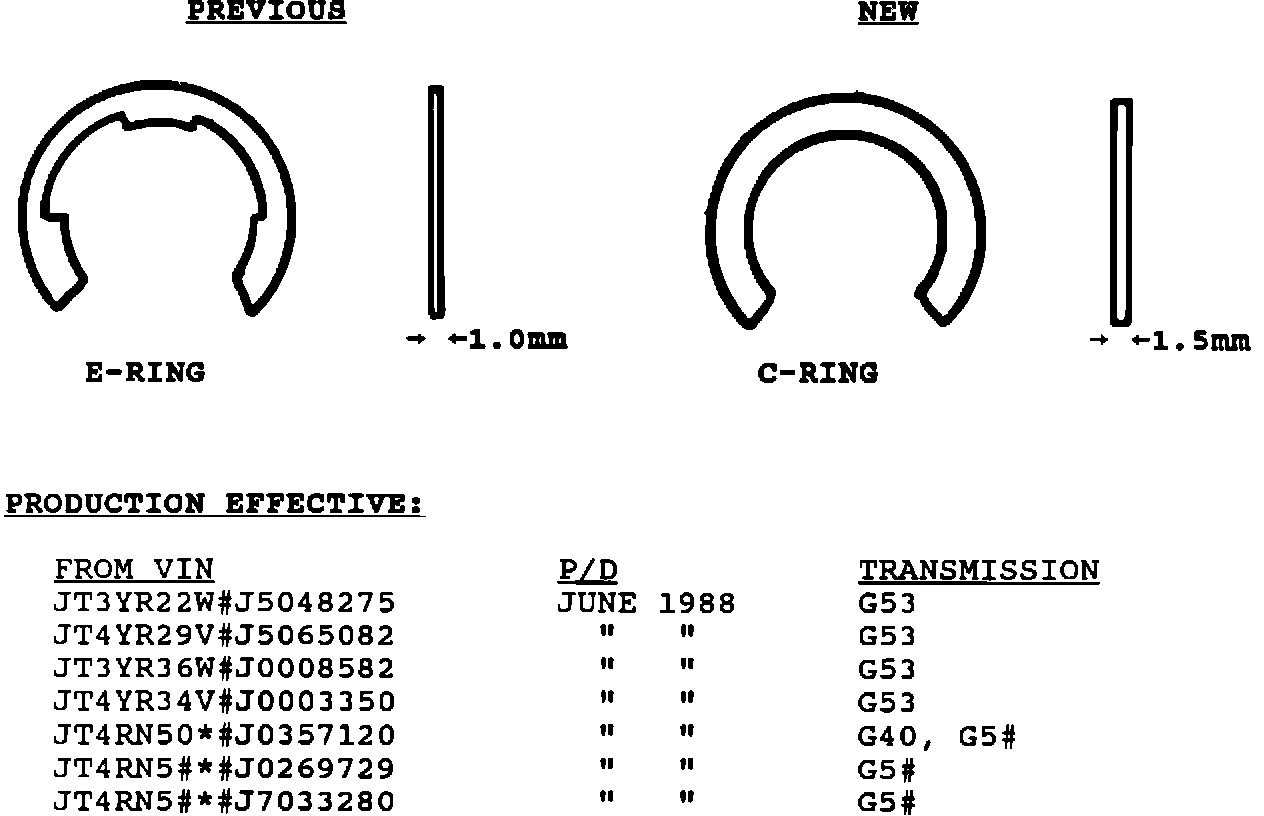

2) Shape of snap ring has been changed from an E-Ring to C-Ring. (see illustration)
3) Shift Fork Shafts have been modified to accept the new C-Ring.

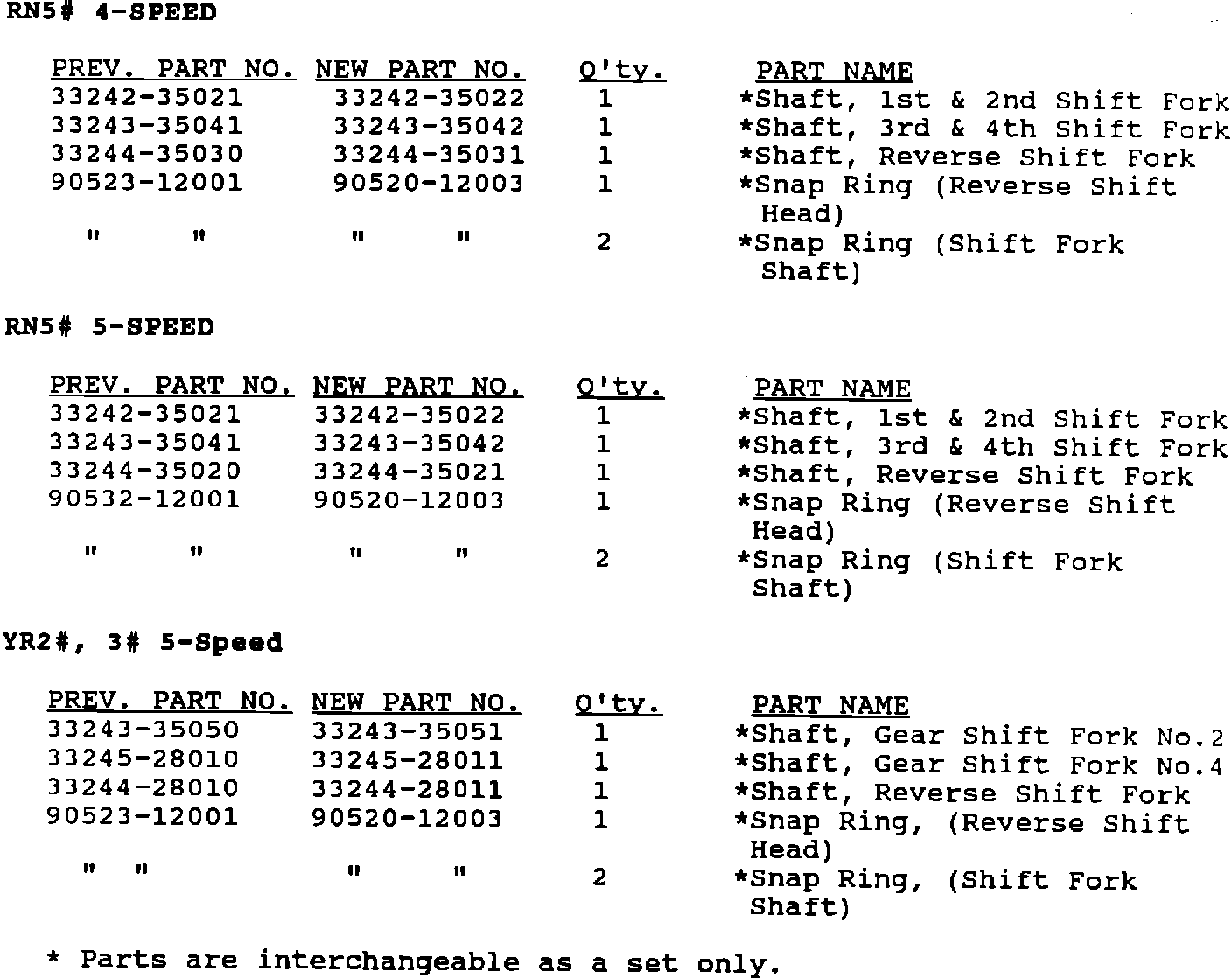

PART NUMBER INFORMATION:
