Speedometer Gear, M/T: Service and Repair

SPEEDOMETER DRIVEN GEAR OIL SEAL REPLACEMENT (2WD)

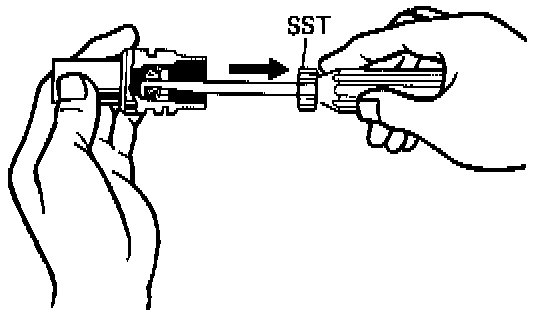

(a) Using SST, remove the oil seal.
SST 09921-00010

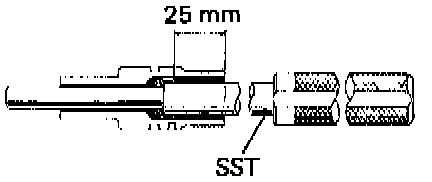

(b) Using SST, install a new oil seal.
SST 09201-60011
Drive in depth: 25 mm (0.98 in.)
