Seals and Gaskets: Service and Repair

OIL SEAL REPLACEMENT (2WD)

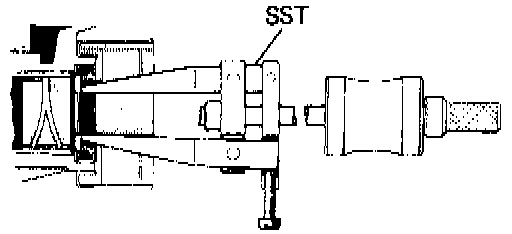

(a) Using SST, remove the oil seal.
SST 09308-00010 or
09308-10010 w/ output shaft installed

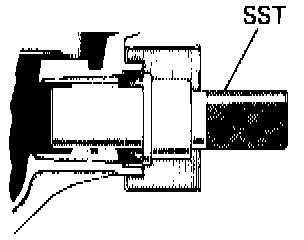

(b) Using SST, drive in a new oil seal.
SST 09325-20010

OIL SEAL REPLACEMENT (4WD)

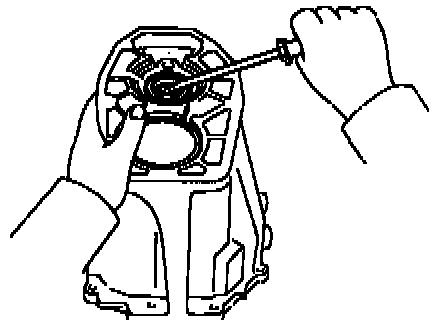

(a) Using a screwdriver, pry out the oil seal.

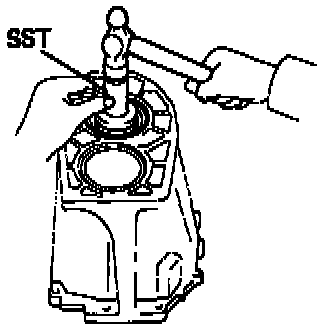

(b) Using SST, drive in a new oil seal.
SST 09325-12010
