Extension Housing: Service and Repair

REVERSE RESTRICT PIN REPLACEMENT

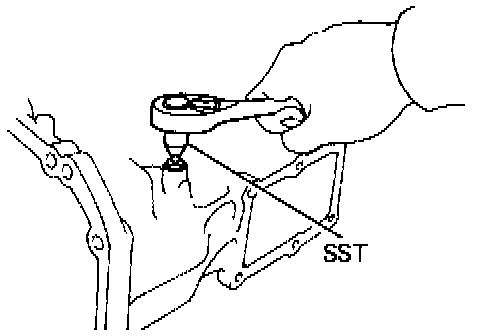

(a) Using SST, remove the screw plug.
SST 09313-30021

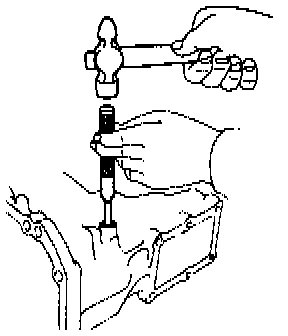

(b) Using a pin punch and hammer, drive out the slotted spring pin.
(c) Pull off the lever housing and slide Out the shaft.
(d) Install the lever housing.
(e) Using a pin punch and hammer, drive in the slotted spring pin.
(f) Apply liquid sealer to the plug.
Sealant:
Part No.08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

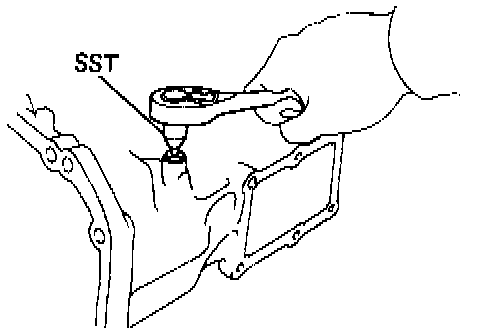

(g) Install and torque the screw plug.
Torque: 250 kg-cm (18 ft-lb, 25 N-m)
