G52 Transmission

FRONT BEARING RETAINER OIL SEAL REPLACEMENT

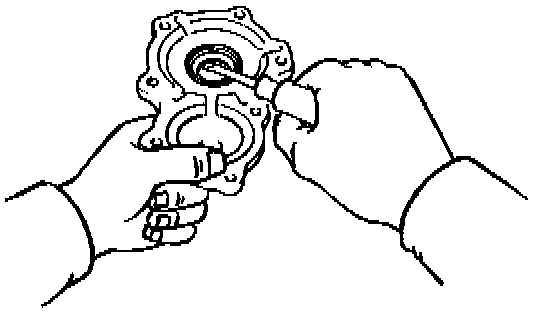

(a) Using a screwdriver, pry out the oil seal.

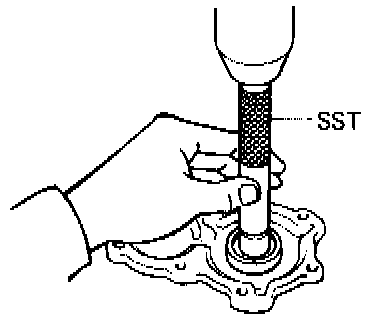

(b) Using SST, press in a new oil seal.
SST 09223-50010
Drive in depth:
12.2 - 13.2 mm (0.480 - 0.520 in.)
Transmission case installation surface
