Fuel - Injection Pump Pulley Modified

REFERENCE ENGINE
NUMBER 016
DATE 2-7-86
MODEL PICKUP (LN)

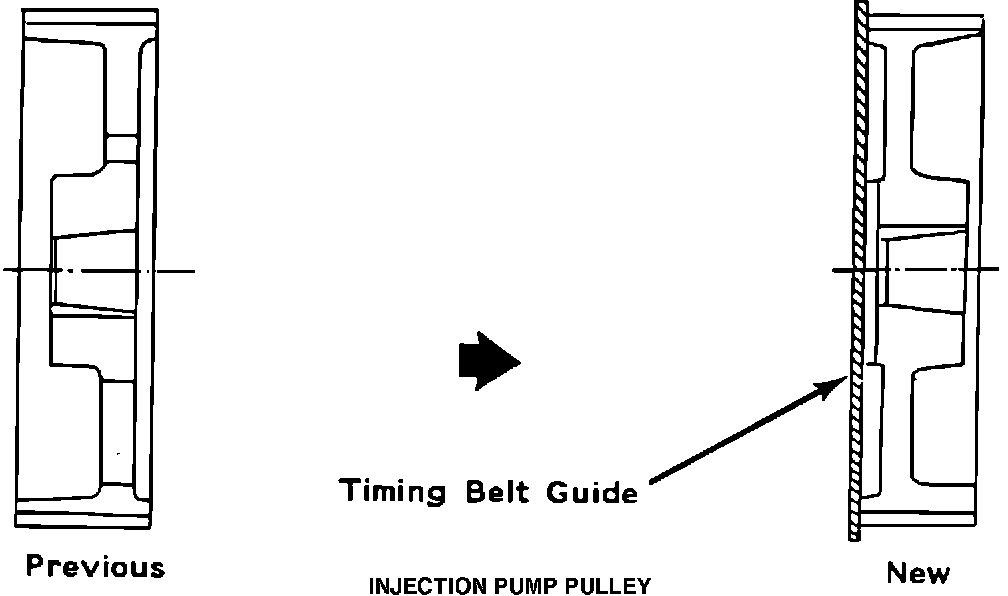

Injection Pump Pulley:




A guide plate has been added to the injection pump pulley to insure proper timing belt positioning..
PRODUCTION EFFECTIVE:


From Engine No. Production Date
2L-1065218 July 1985

PART NUMBER INFORMATION:

Previous Part No. New Part No.
Part Name
13613-54020 13603-54020
Pulley, Injection Pump Drive
