Toyota Truck
>>
1985
>>
Pickup 2WD L4-2466cc DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Glow Plug System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

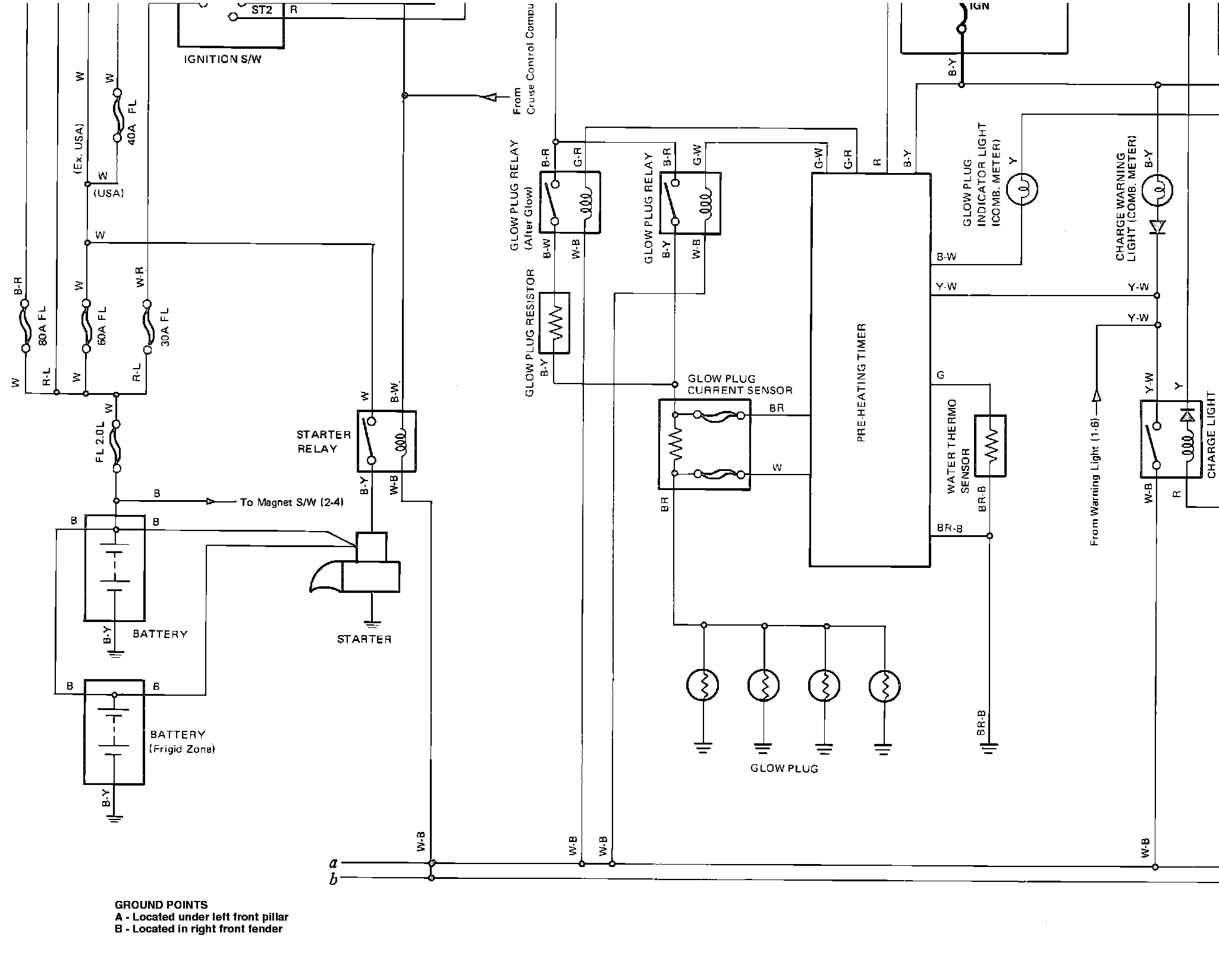

8�5�C��L��c��w����Fig. 13a Wiring Diagram (Part 8 of 8):
