Engine - 'L' Series Cylinder Block Update

REFERENCE ENGINE
NUMBER 002
DATE 3-1-85
MODEL LN44

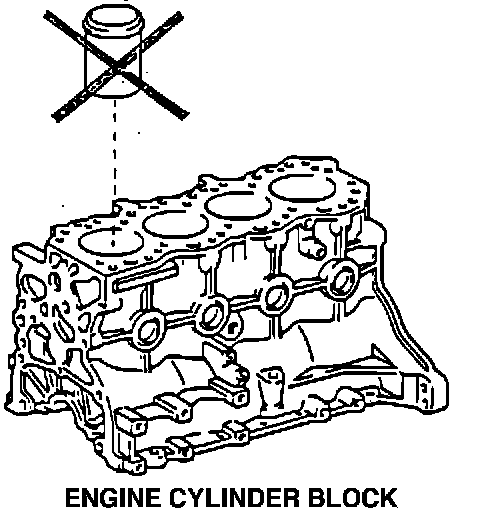

"L" Engine Cylinder Block:

For parts standardization, all replacement "L" engine cylinder blocks have been changed from a cylinder liner type to a cylinder liner-less type as in the 2L engine.

Note that this new block requires the use of revised piston rings and a different type head gasket as listed below.
PART NUMBER INFORMATION:

Previous Part Number New Part Number Part Name

*11400-54013 11400-54014 Block Assy, Short
*11401-59235 11401-59236 Block Sub-Assy, Cylinder
*11115-54011 11115-54012 Gasket, Cylinder Head
*04111-54034 04111-54035 Gasket Kit, Engine O/H
*13011-54041 13011-54042 Ring Set, Piston, Standard
*13013-54041 13013-54042 Ring Set, Piston, O/S 0.50 mm

NOTE: *Parts are interchangeable as a set only.
