Toyota Truck
>>
1985
>>
Pickup 2WD L4-2466cc DSL
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

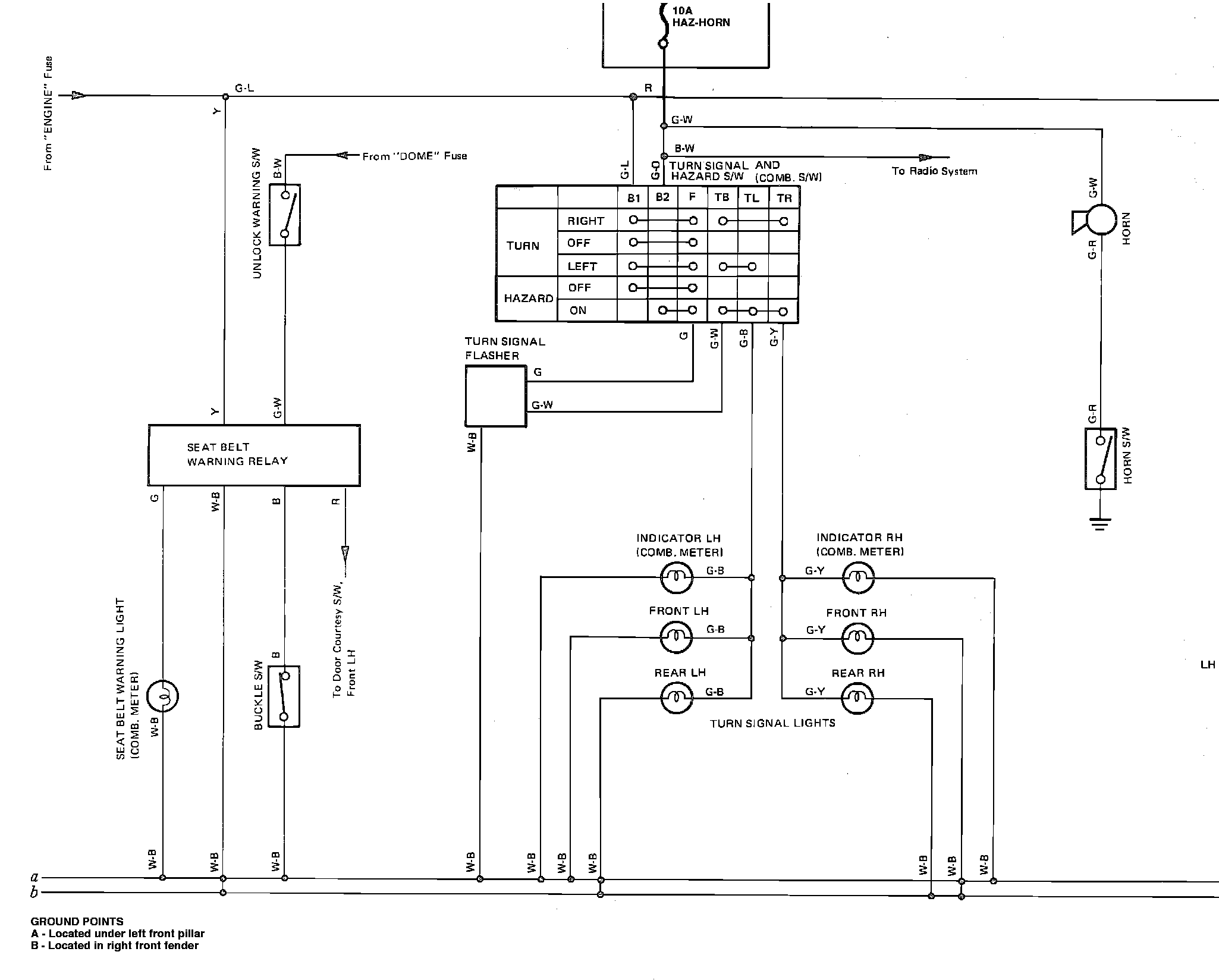

S��۾�U��I��O��Z���Fig. 13b Wiring Diagram (Part 8 of 8):
