Driveshaft - (Two-Piece) Replacement Parts Procedure

REFERENCE NVH
NUMBER 002
DATE 11-21-84
MODEL ALL

Diagnosing Driveline Vibration:

The purpose of this bulletin is to provide information concerning two-piece drive shaft replacement parts.. Individual front or rear driveshaft pieces are not balanced from the factory, therefore if individual pieces are replaced, driveshaft assembly re-balance may be necessary.

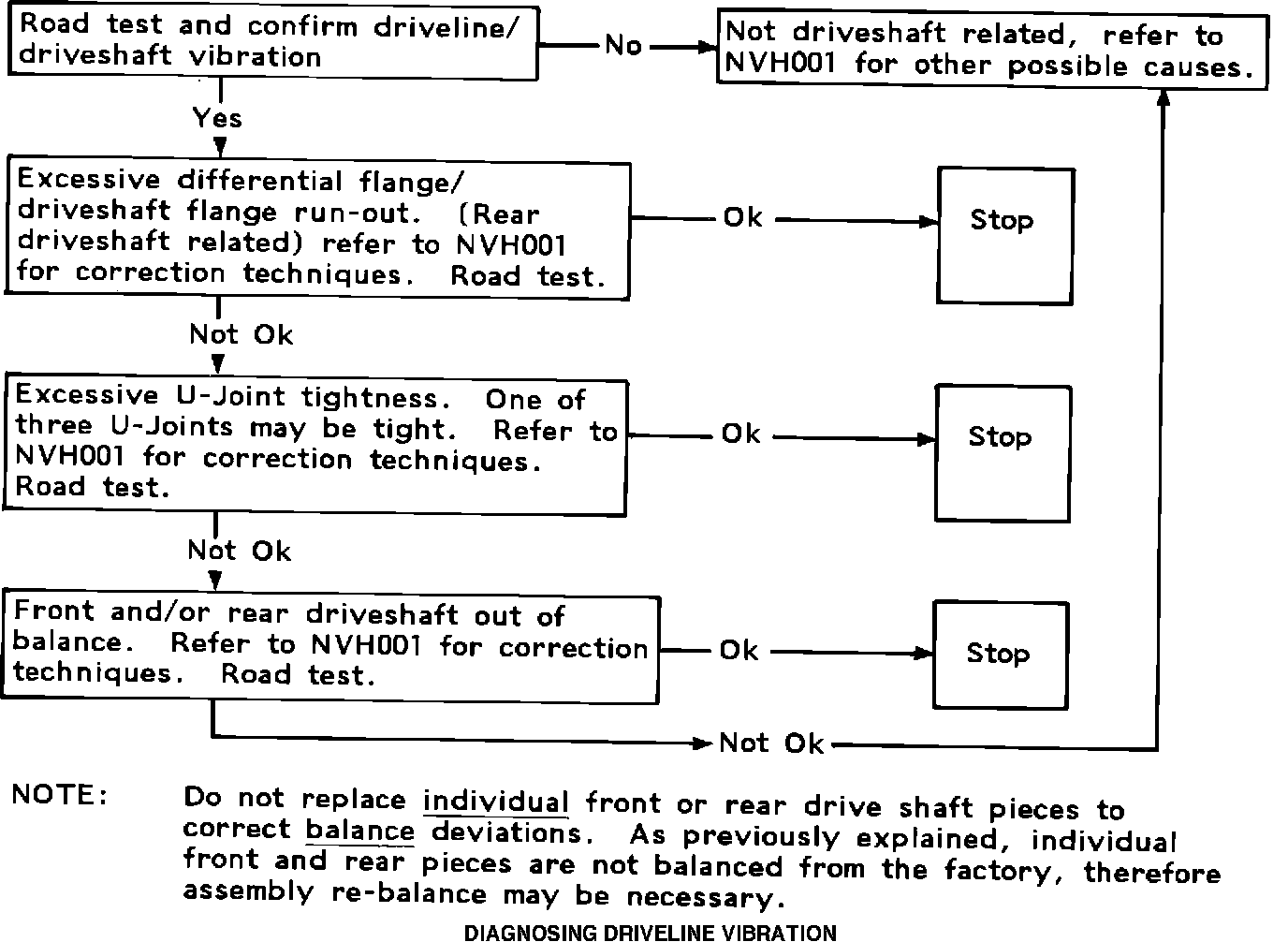

The following flow chart will assist you in diagnosing driveline vibration on vehicles utilizing a two-piece drive shaft.

Note: NVH001 is located in TSB Volume VII.
