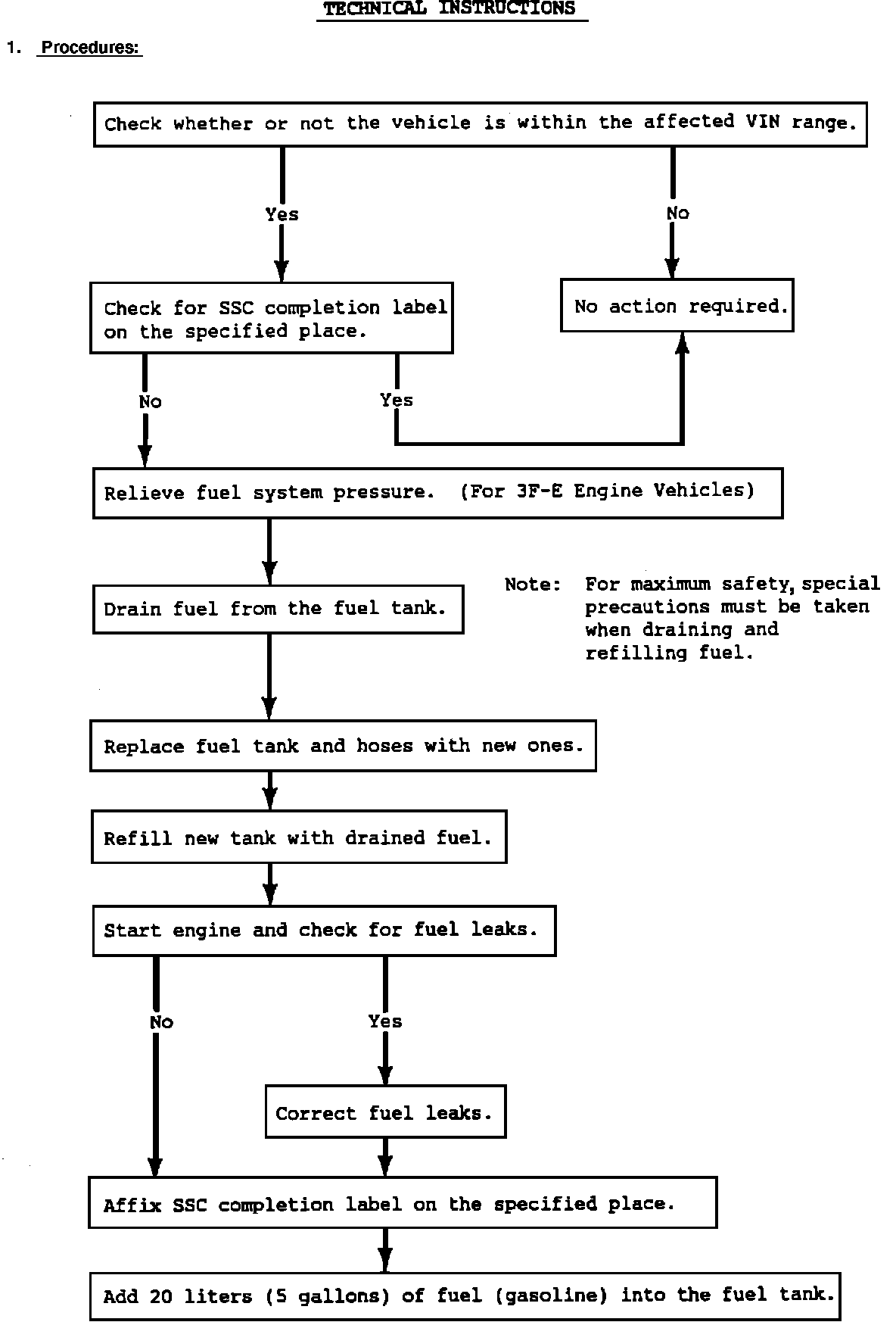

Flow Chart For Replacement, Parts, & Tools Information








II. REQUIRED PARTS:

NOTE: DO NOT ORDER ANY OF THESE PARTS THROUGH NORMAL PARTS ORDERING PROCEDURES, SEE COVER LETTER FOR INSTRUCTIONS.

For 3F-E Engine Vehicles - FJ62 Q'ty.

- Fuel Tank (P/N 04001-02160) ----- 1/vehicle
- Fuel Tank Service Kit (P/N 04001-01160) ----- 1/vehicle

The service kit (P/N 04001-01160) consists of the following parts.

Item No. Part No. Part Name Q'ty.

1 77169-14010 Gasket, Fuel Suction Tube Set 1

2 83361-20030 Gasket, Fuel Sender Gage 1

3 77213-60030 Hose, Fuel Tank Inlet 1

4 77249-60040 Hose, Fuel Emission 1

5 77249-60050 Hose, Fuel Emission 1

6 90445-22904 Hose, Fuel Tank Breather 1

7 95333-06034 Hose, Fuel 1

8 95332-10036 Hose, Fuel 1

9 96132-30600 Clip, Hose 6

10 90467-20134 Clip, Hose 2

11 96132-31000 Clip, Hose 2

12 90460-62033 Clamp, Hose 2

13 94183-00800 Nut Lock (for Stabilizer Bracket) 4





NOTE: DO NOT ORDER ANY OF THESE PARTS THROUGH NORMAL PARTS ORDERING PROCEDURES, SEE COVER LETTER FOR INSTRUCTIONS.

For 2F Engine Vehicles - FJ60 Q'ty.

- Fuel Tank (P/N 04001-03160) ----- 1/vehicle
- Fuel Tank Service Kit (P/N 04001-04160) ----- 1/vehicle

The service kit (P/N 04001-04160) consists of the following parts.

Item No. Part No. Part Name Q'ty.

1 77169-14020 Gasket, Fuel Suction Tube Set 1

2 83361-20030 Gasket, Fuel Sender Gage 1

3 77213-60030 Hose, Fuel Tank Inlet 1

4 77249-60040 Hose, Fuel Emission 1

5 77249-60050 Hose, Fuel Emission 1

6 90445-22904 Hose, Fuel Tank Breather 1

7 95333-06034 Hose, Fuel 1

8 95332-10036 Hose, Fuel 1

9 96132-30600 Clip, Hose 8

10 90467-20134 Clip, Hose 2

11 96132-31000 Clip, Hose 2

12 90460-62033 Clamp, Hose 2

13 94183-00800 Nut Lock (for Rear Stabilizer Bracket) 4

14 77250-60050 Hose, Fuel Return 1

15 77260-60060 Hose, Fuel Main 1

16 95333-06024 Hose, Fuel Return
(for non U.S. vehicles, do not use) 1

17 96132-30800 Clip, Hose 4





III. TOOLS AND EQUIPMENT:

- Standard Tools

- Razor Knife

- Garage Jack and Stands

- Safety Glasses

- Grounding Wires

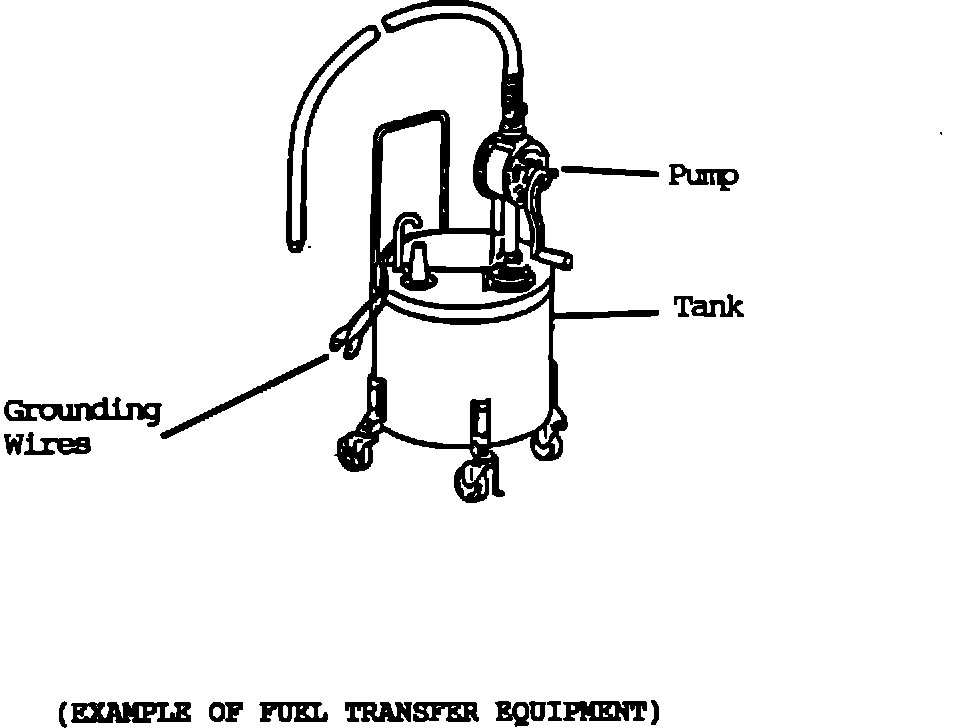

* - Fuel Transfer Equipment (with hand operated pump device)

- Gas Buggy or Five Gallon containers approved by federal, state and/or local laws

- Fire Extinguisher


* The following type of fuel transfer equipment is recommended to safely remove and refill gasoline. This type of fuel transfer equipment is available through the new Toyota Approved Equipment Program, see Page G-58 in your Toyota Approved Dealer Equipment Catalog.
