Toyota Truck
>>
1985
>>
Landcruiser 4WD L6-4227cc 2F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum Hose Diagram
Vacuum Hose Diagram

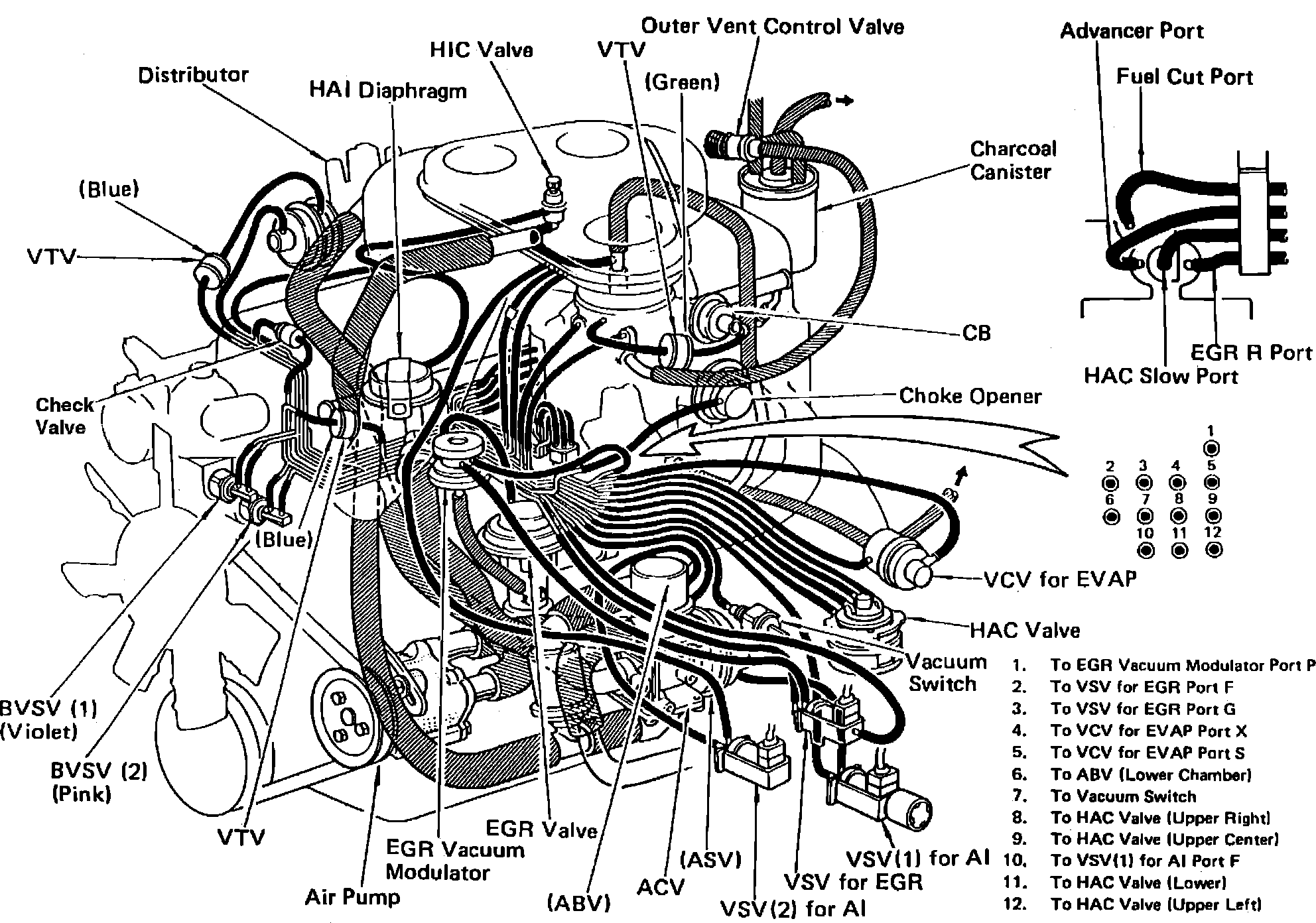

Vacuum Hose Diagram:
