Electronic Stability Program
>>

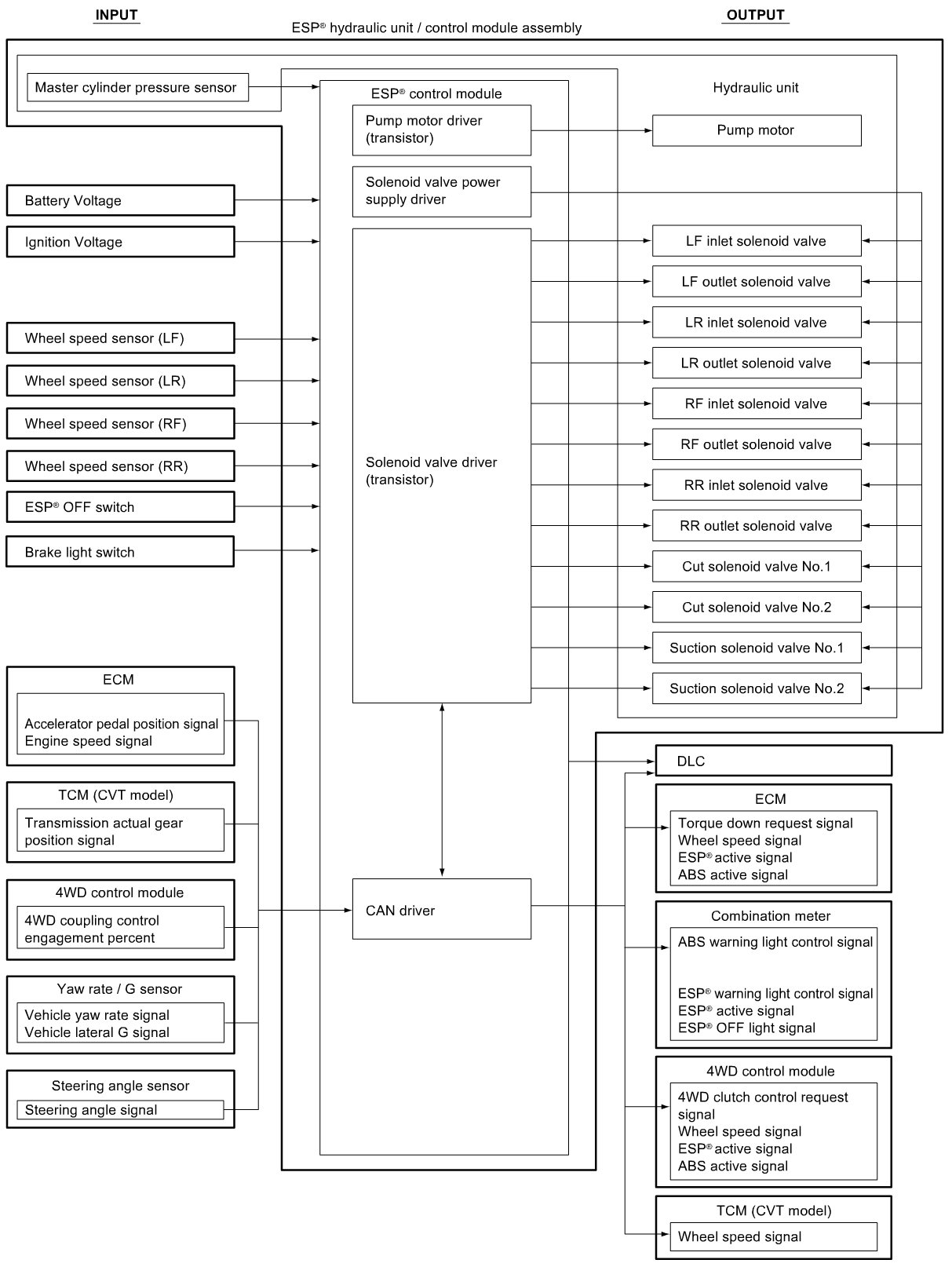

ESP Input / Output Block Diagram
ESP Input / Output Block Diagram
ESP(R) Input / Output Block Diagram
