Home
>>
Suzuki
>>
2012
>>
SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

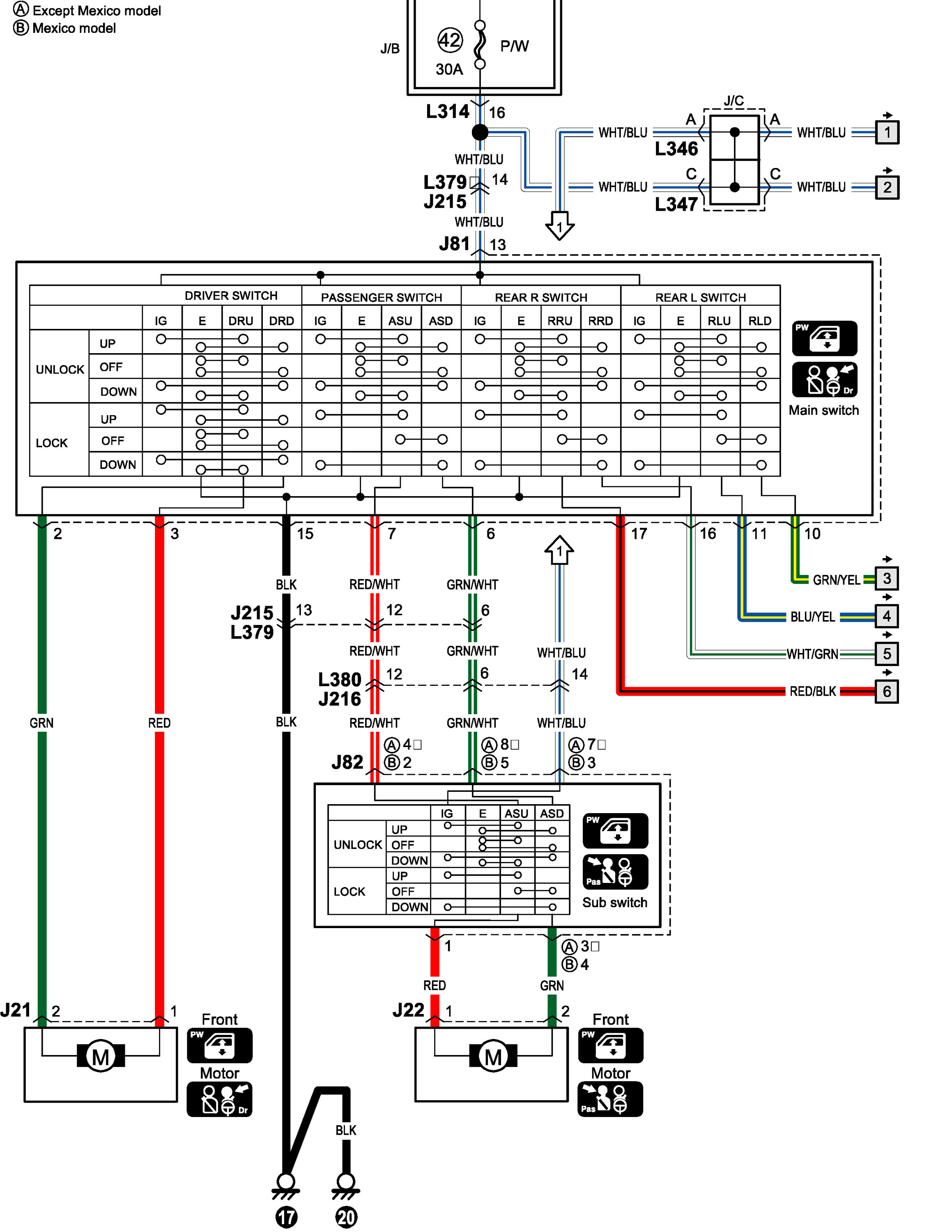

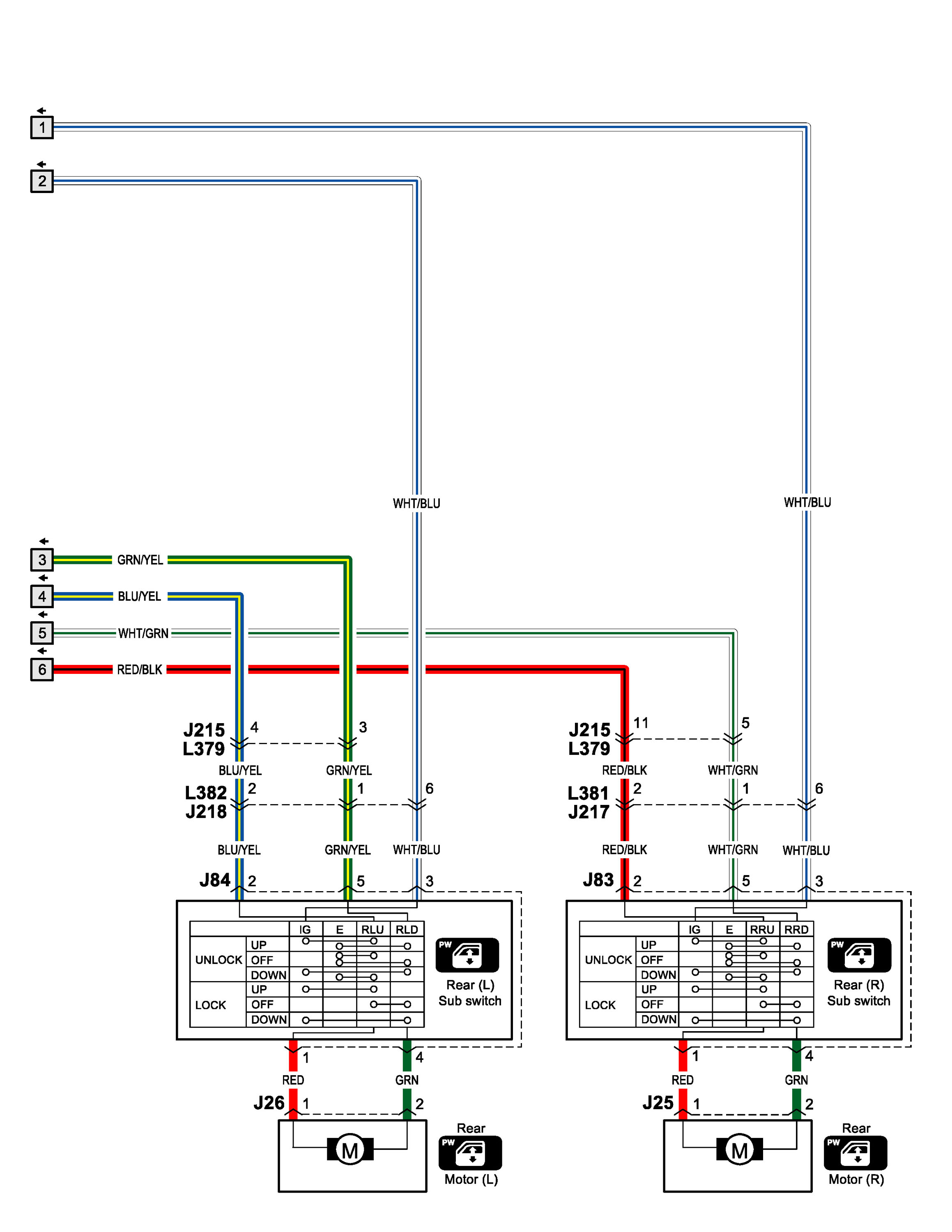

B-4 Power Window Circuit Diagram
