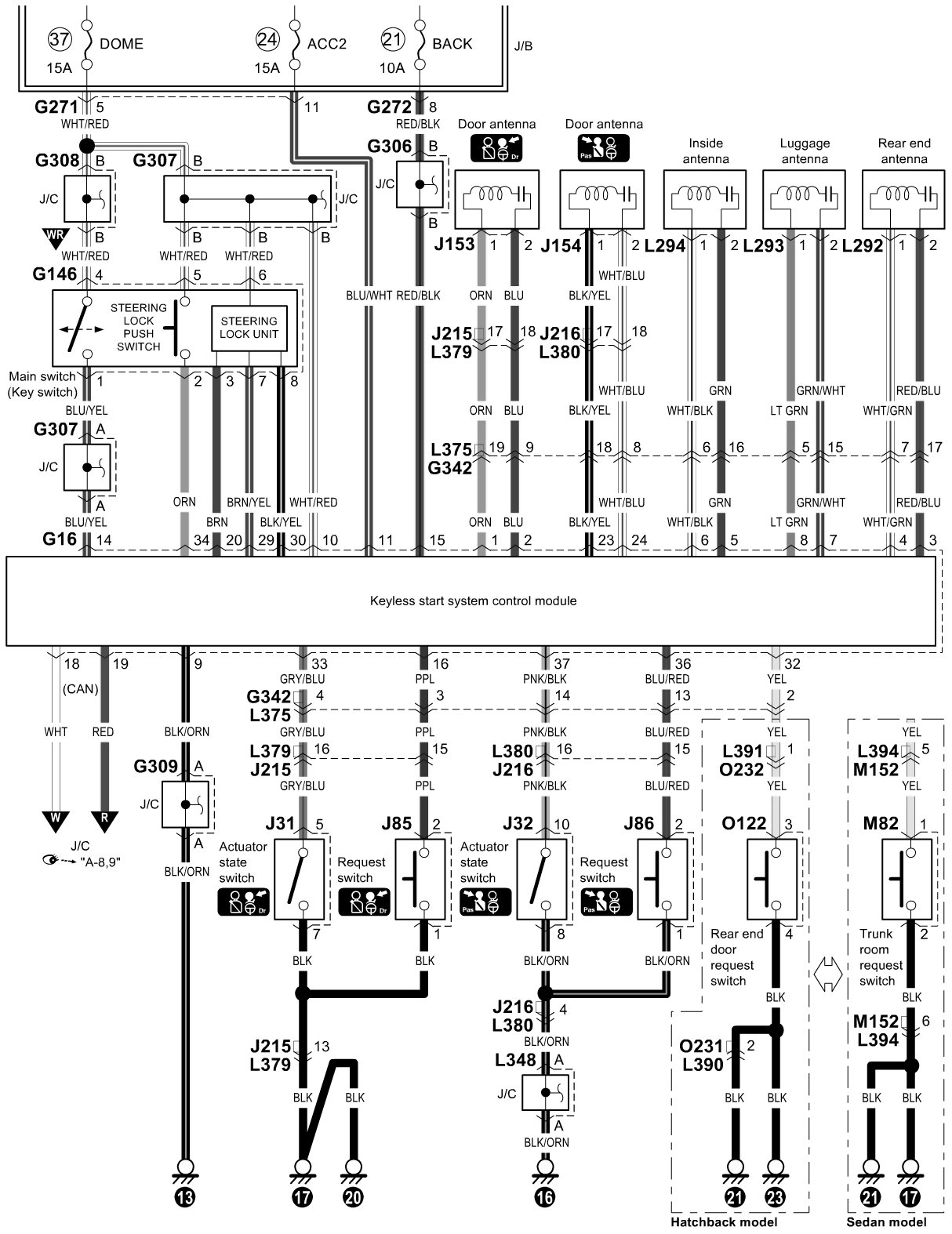

B-9 Keyless Start System Circuit Diagram
B-9 Keyless Start System Circuit Diagram
B-9 Keyless Start System Circuit Diagram
