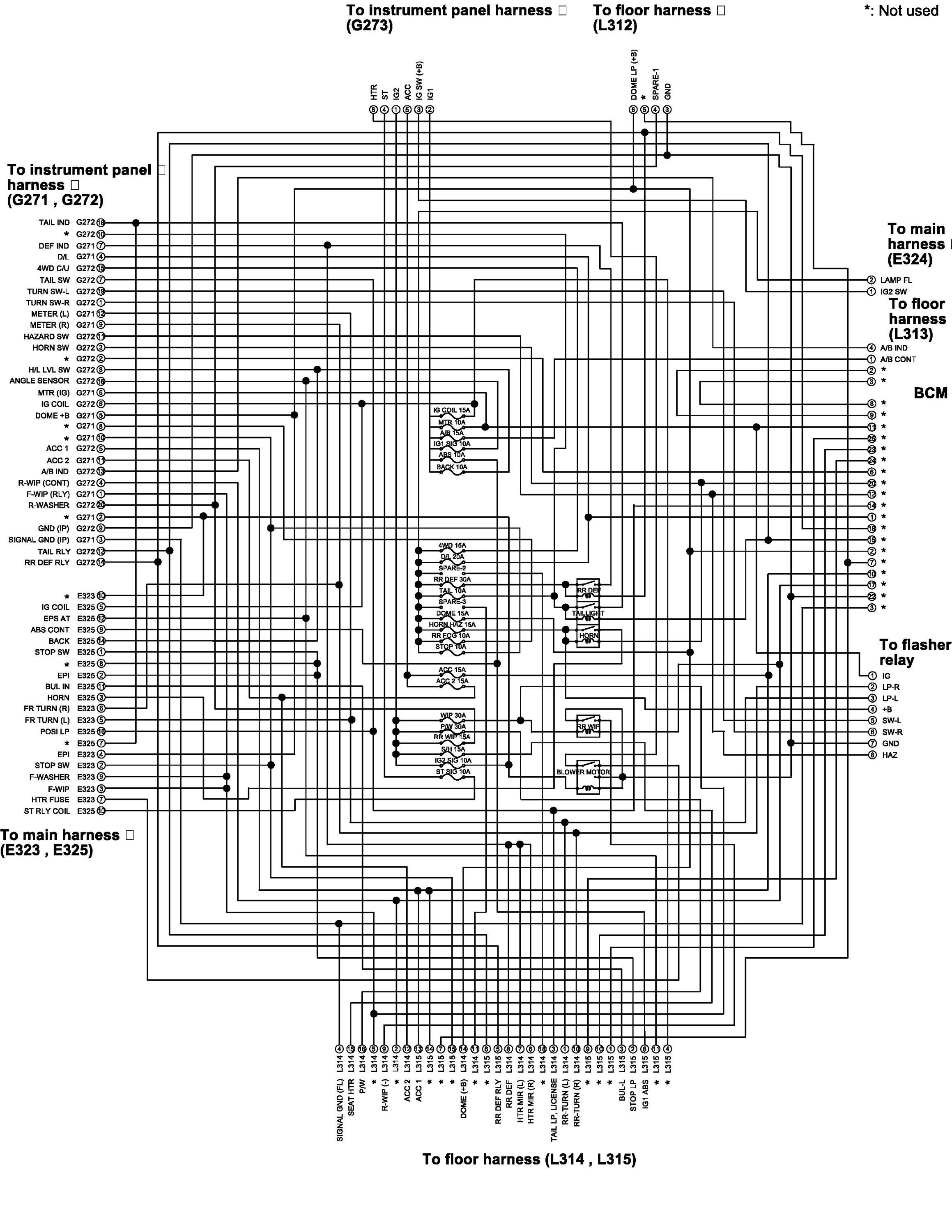

J/B Inner Circuit (Overview)
J/B Inner Circuit (Overview)
J/B Inner Circuit (Overview)
Abbreviations
