A-6 CVT Control System Circuit Diagram

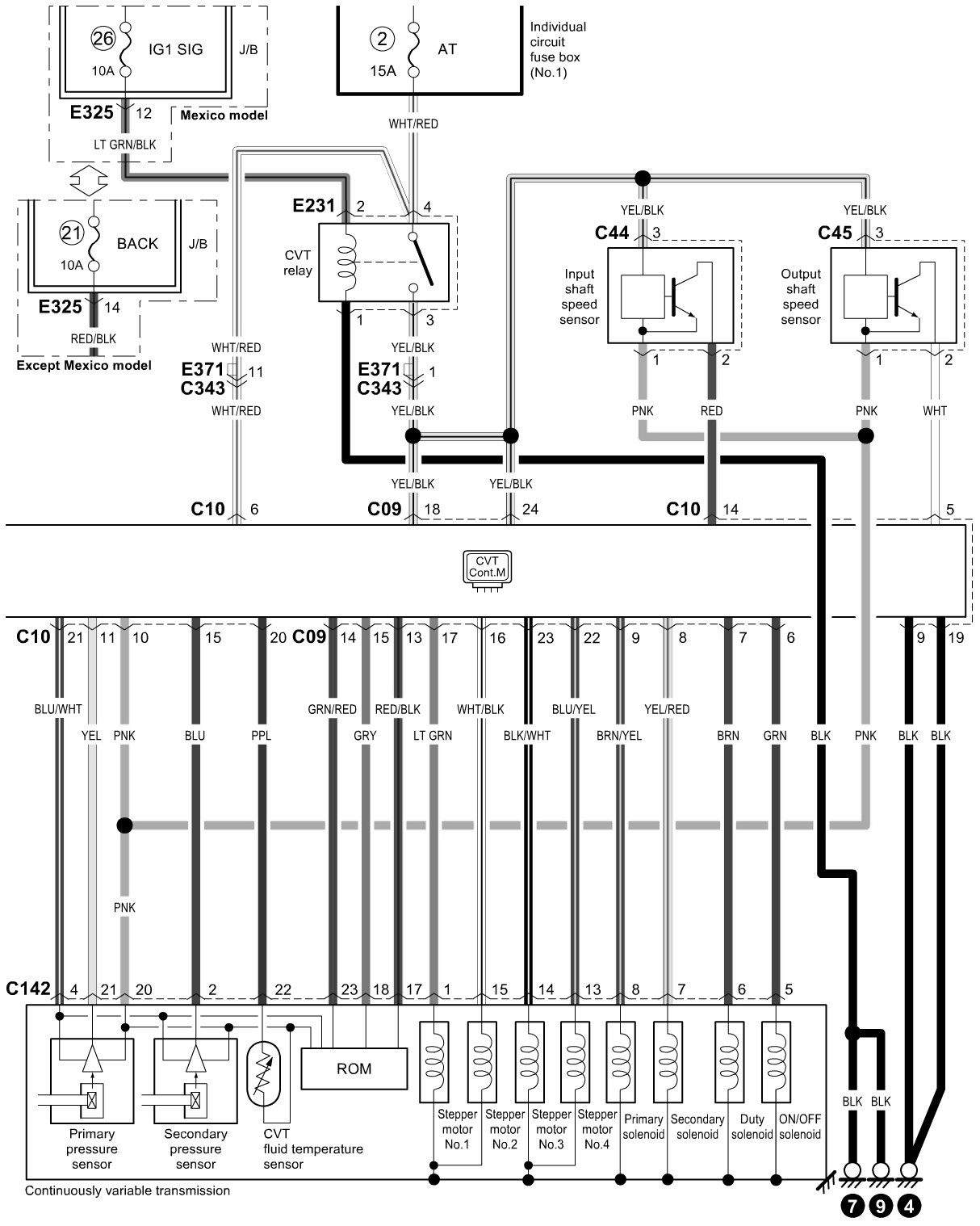

A-6 CVT Control System Circuit Diagram

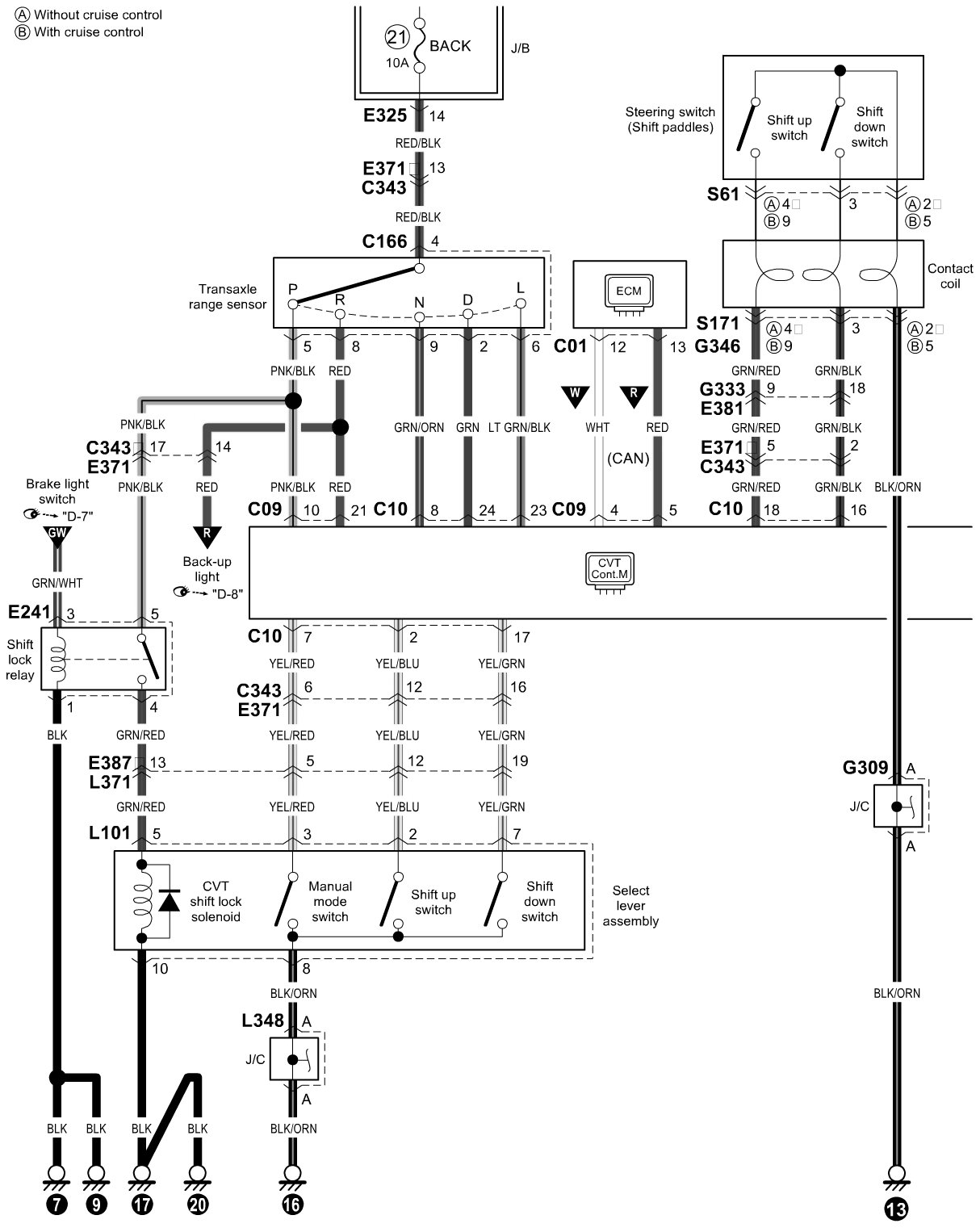

A-6 CVT Control System Circuit Diagram
