Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2012
>>
Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Exploded Views
Exploded Views

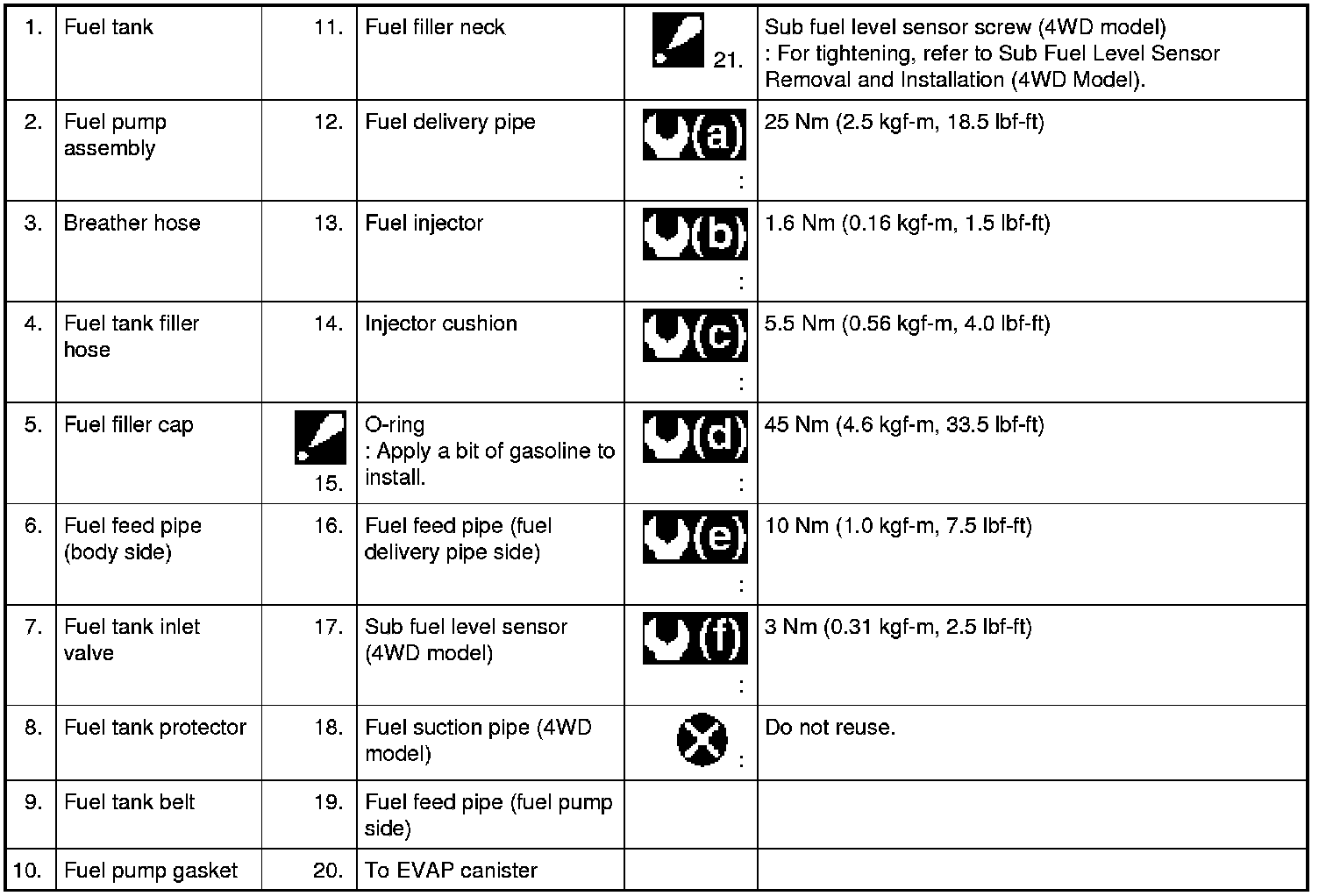

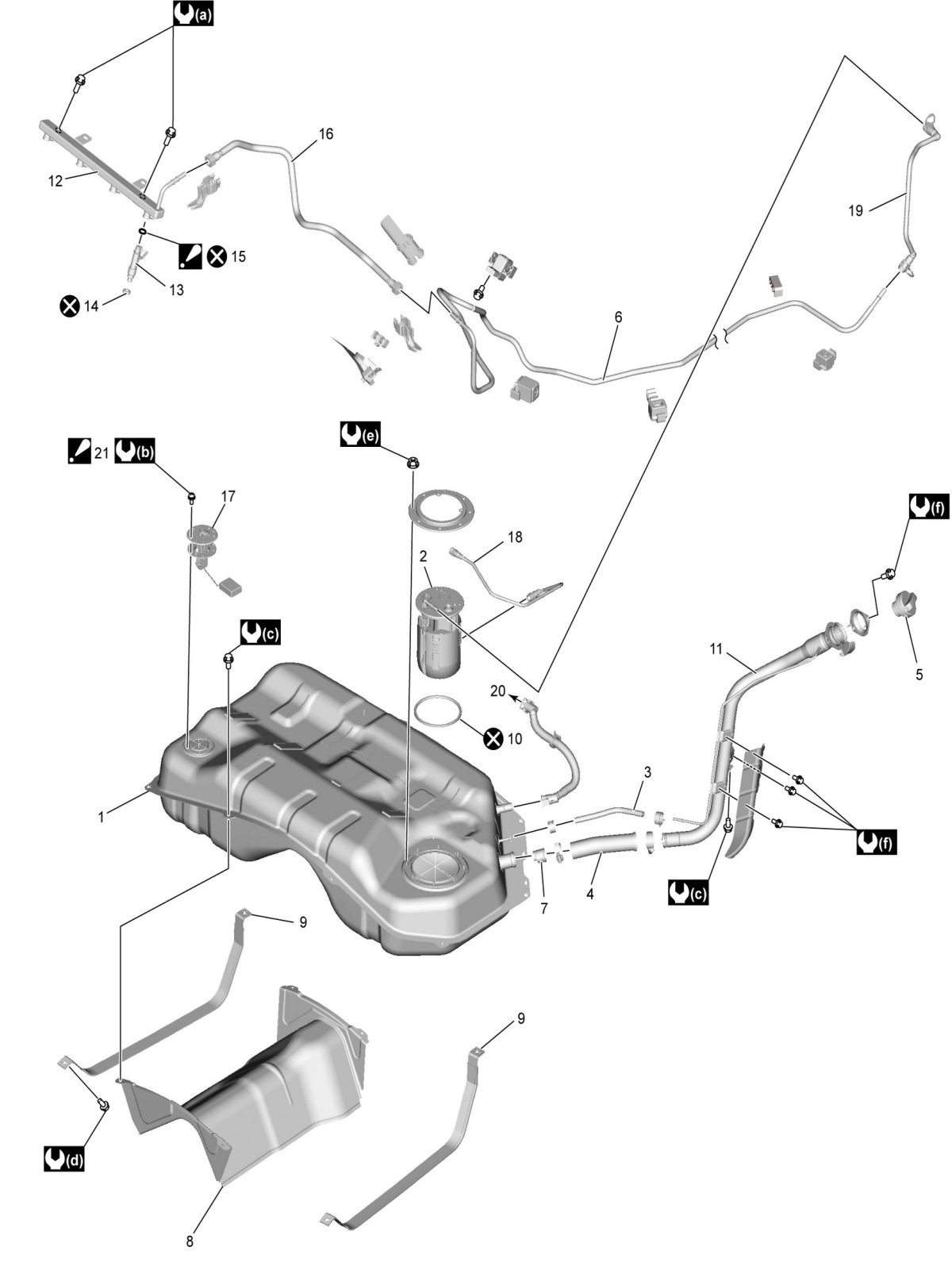

Fuel System Components
Sub Fuel Level Sensor Removal and Installation (4WD Model)
