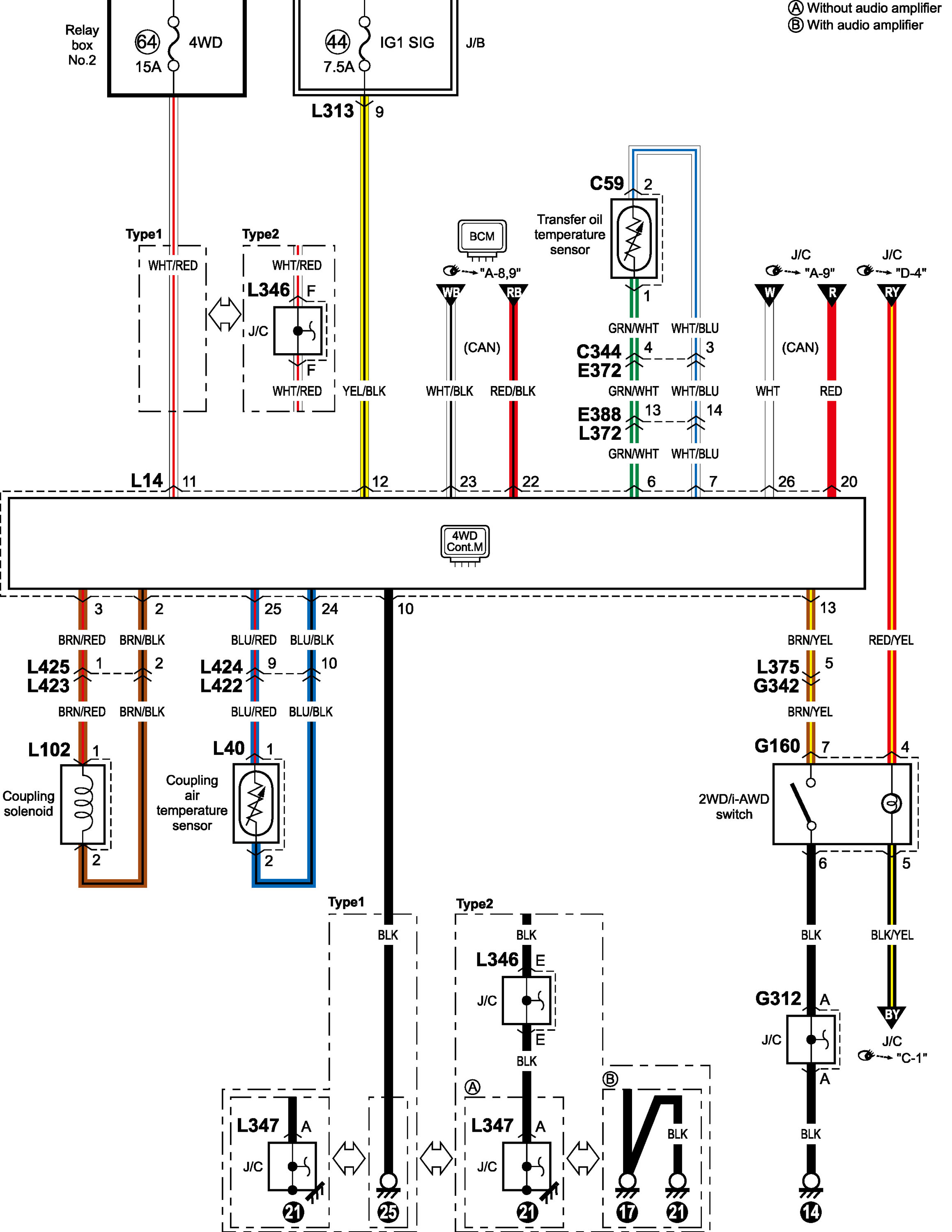

A-10 4WD Control System Circuit Diagram
A-10 4WD Control System Circuit Diagram
A-10 4WD Control System Circuit Diagram
