Home
>>
Suzuki
>>
2012
>>
Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
System Diagram

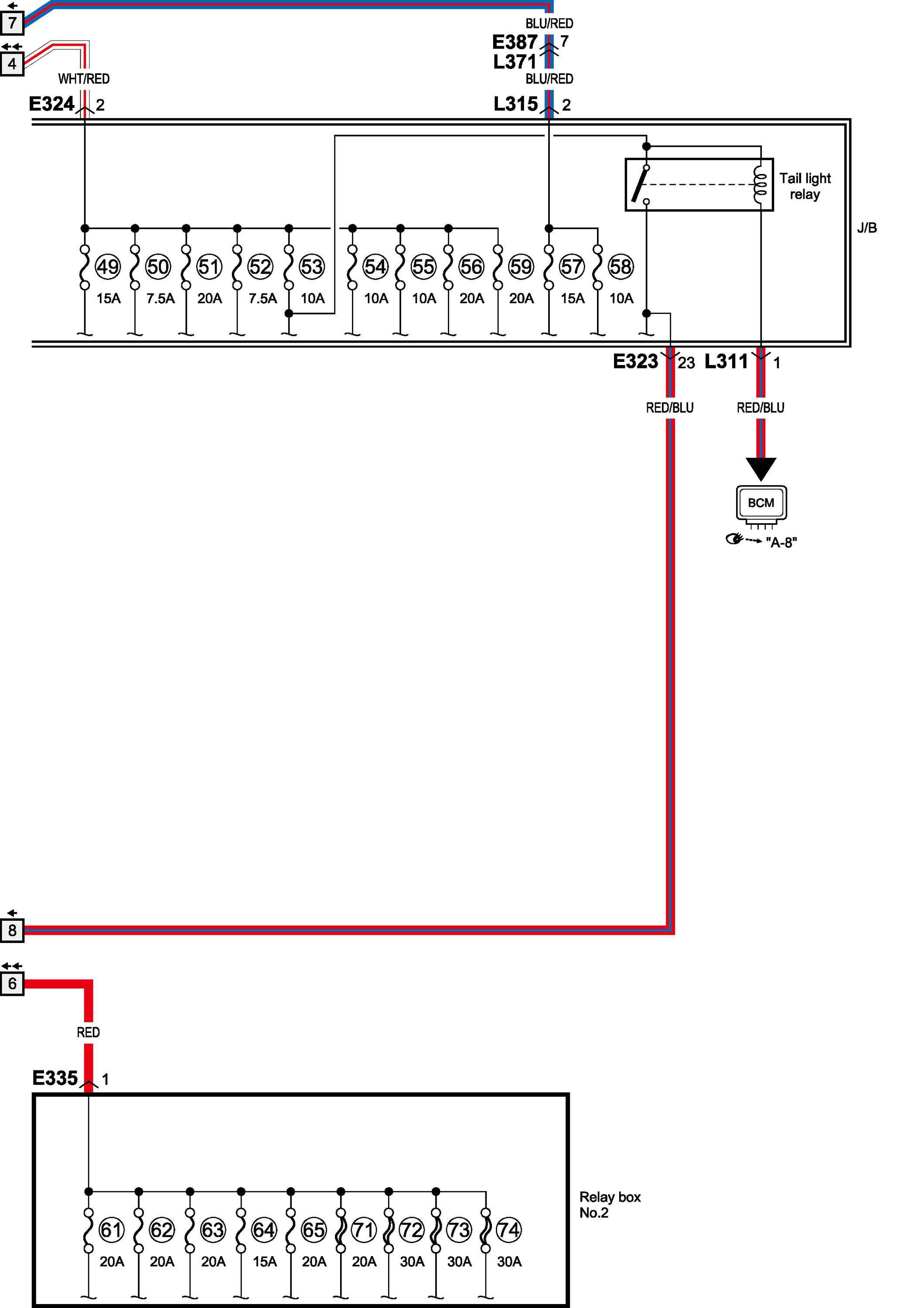

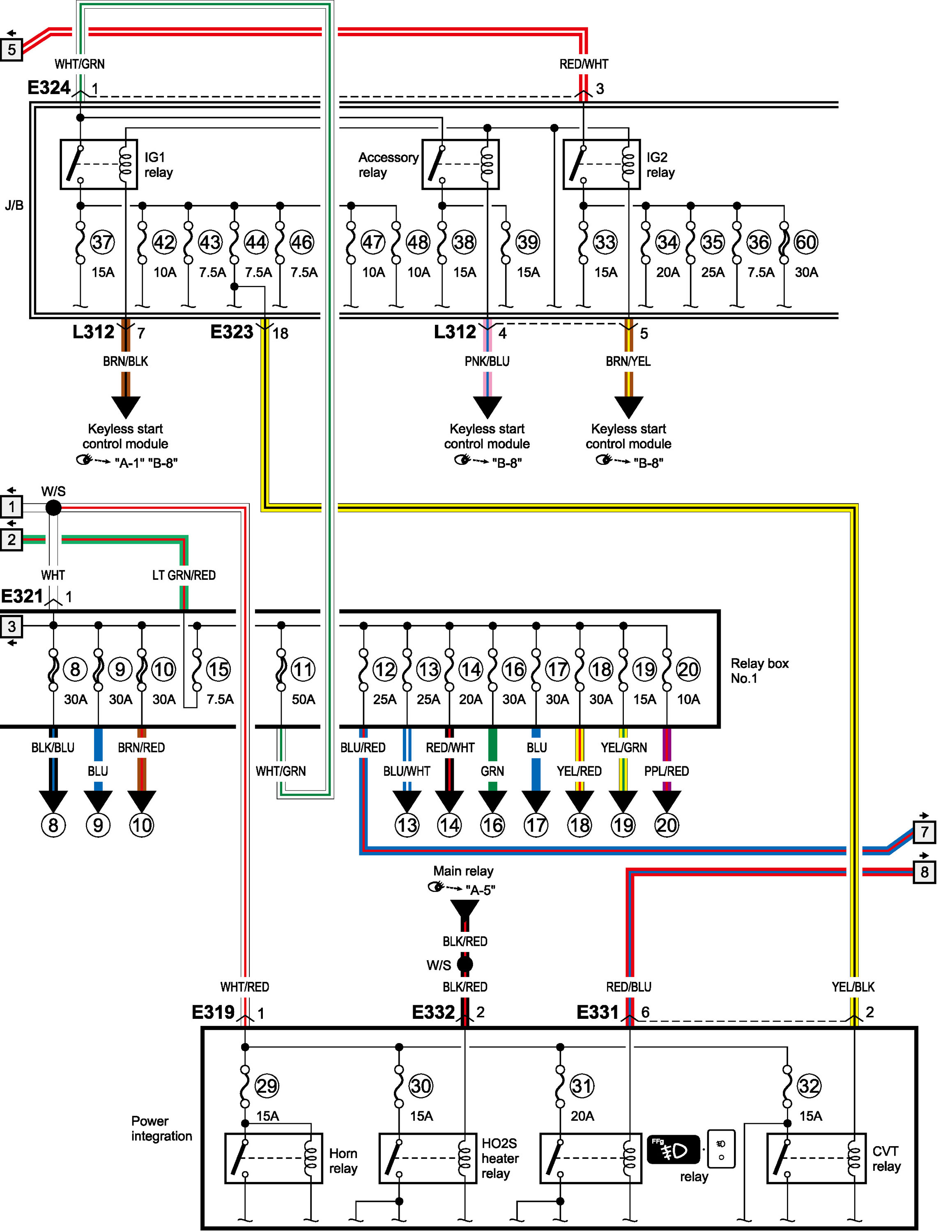

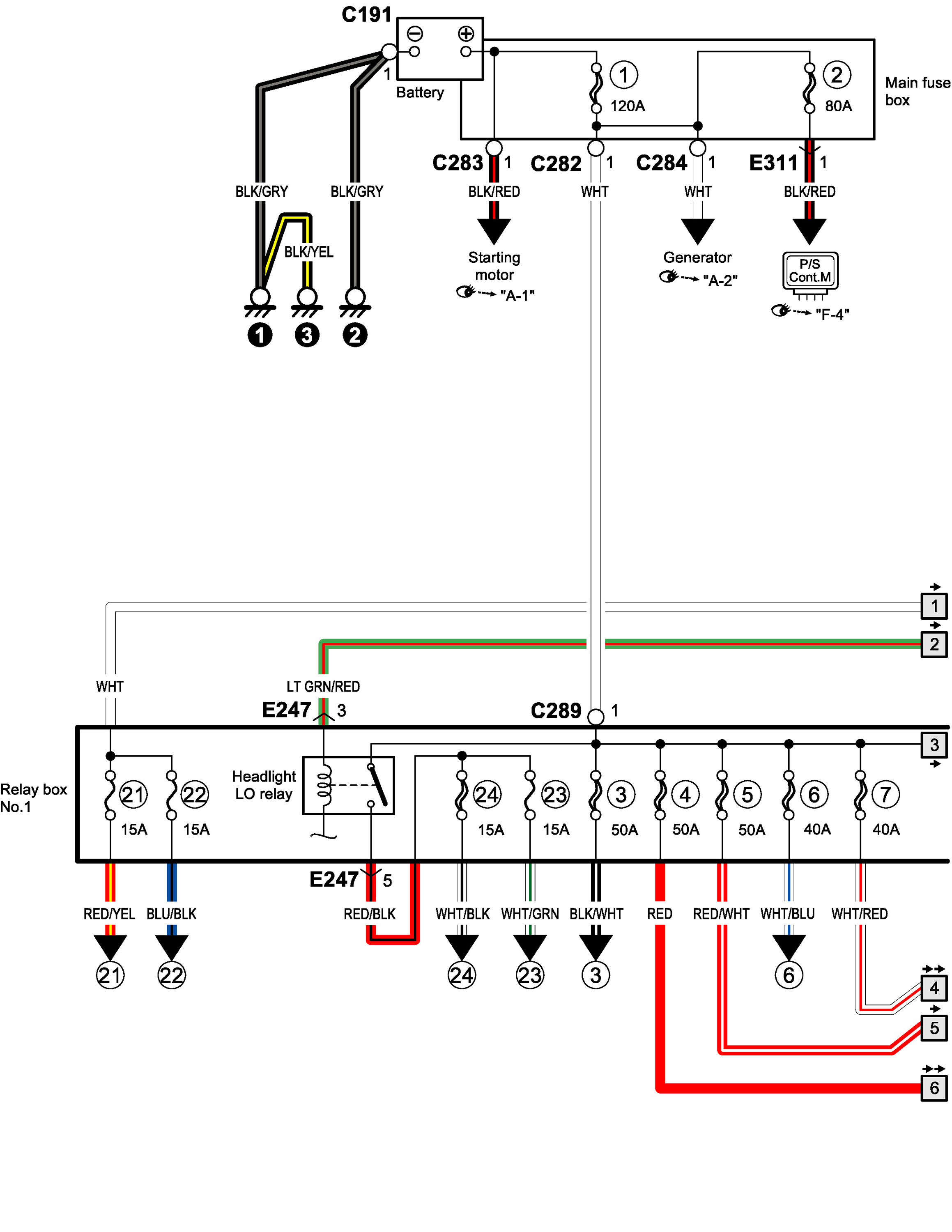

Power Supply Diagram
ESP(R): ESP is a registered trademark of Daimler AG.
