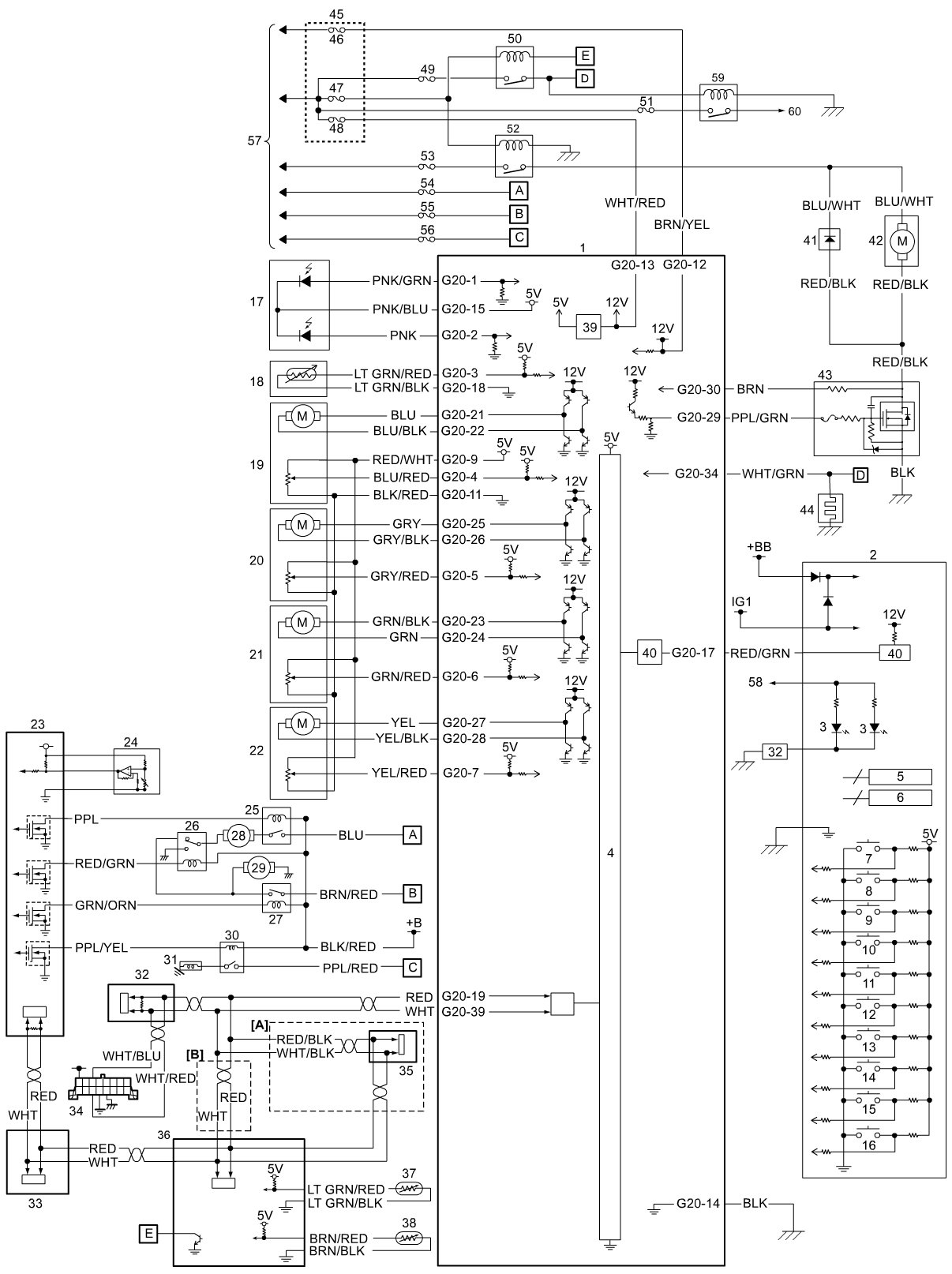

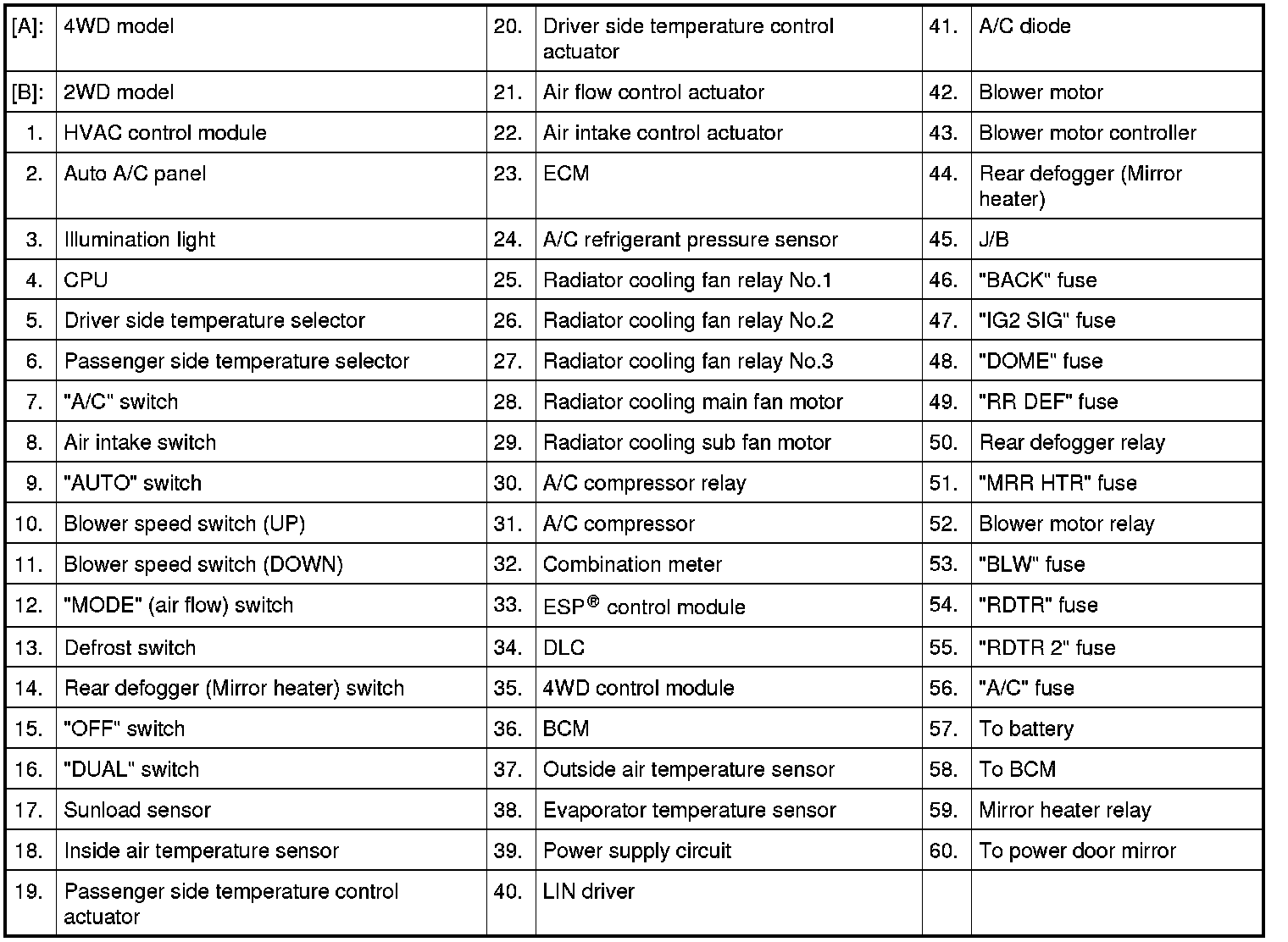

HVAC Control System Circuit Diagram
HVAC Control System Circuit Diagram
HVAC Control System Circuit Diagram
