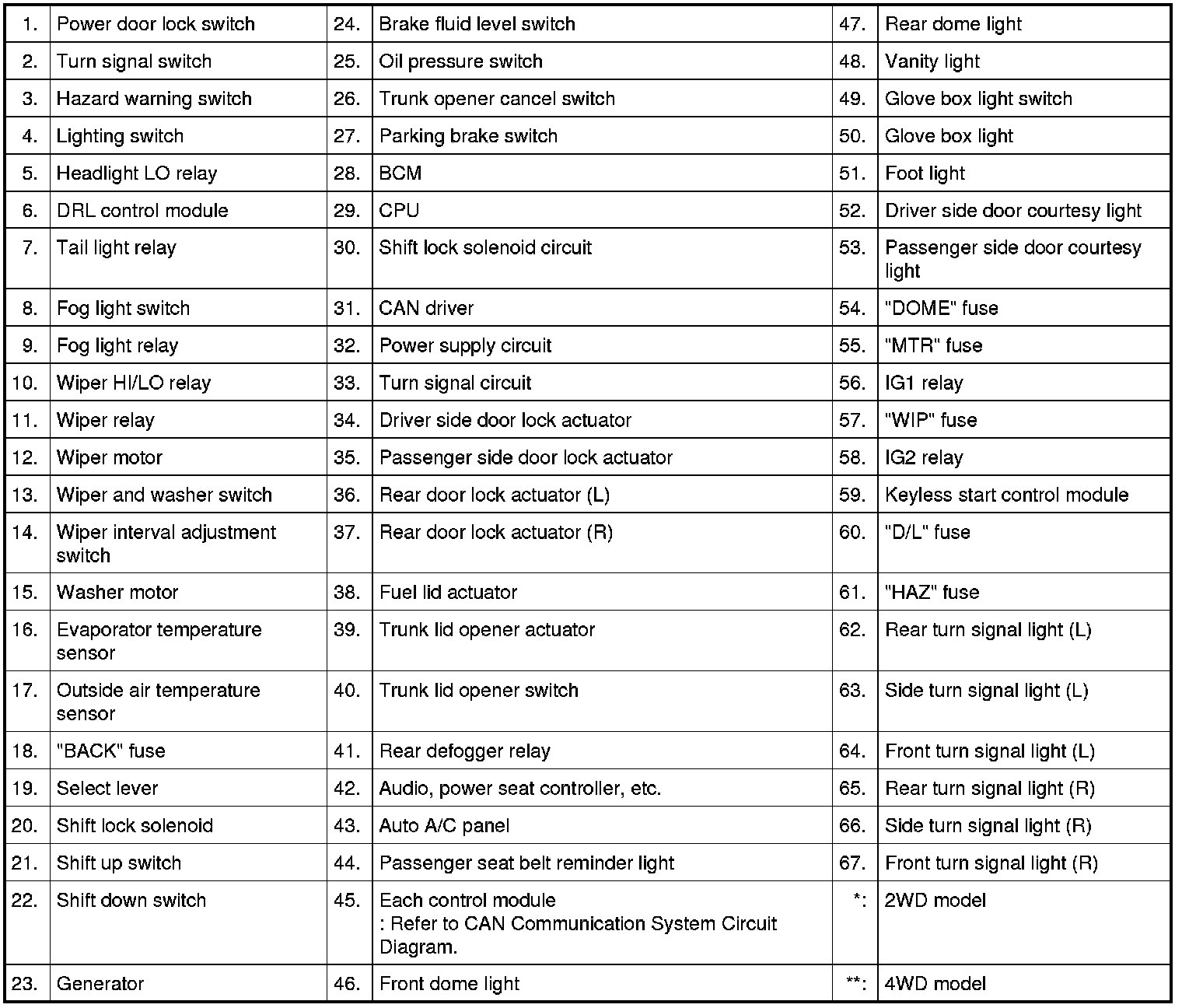

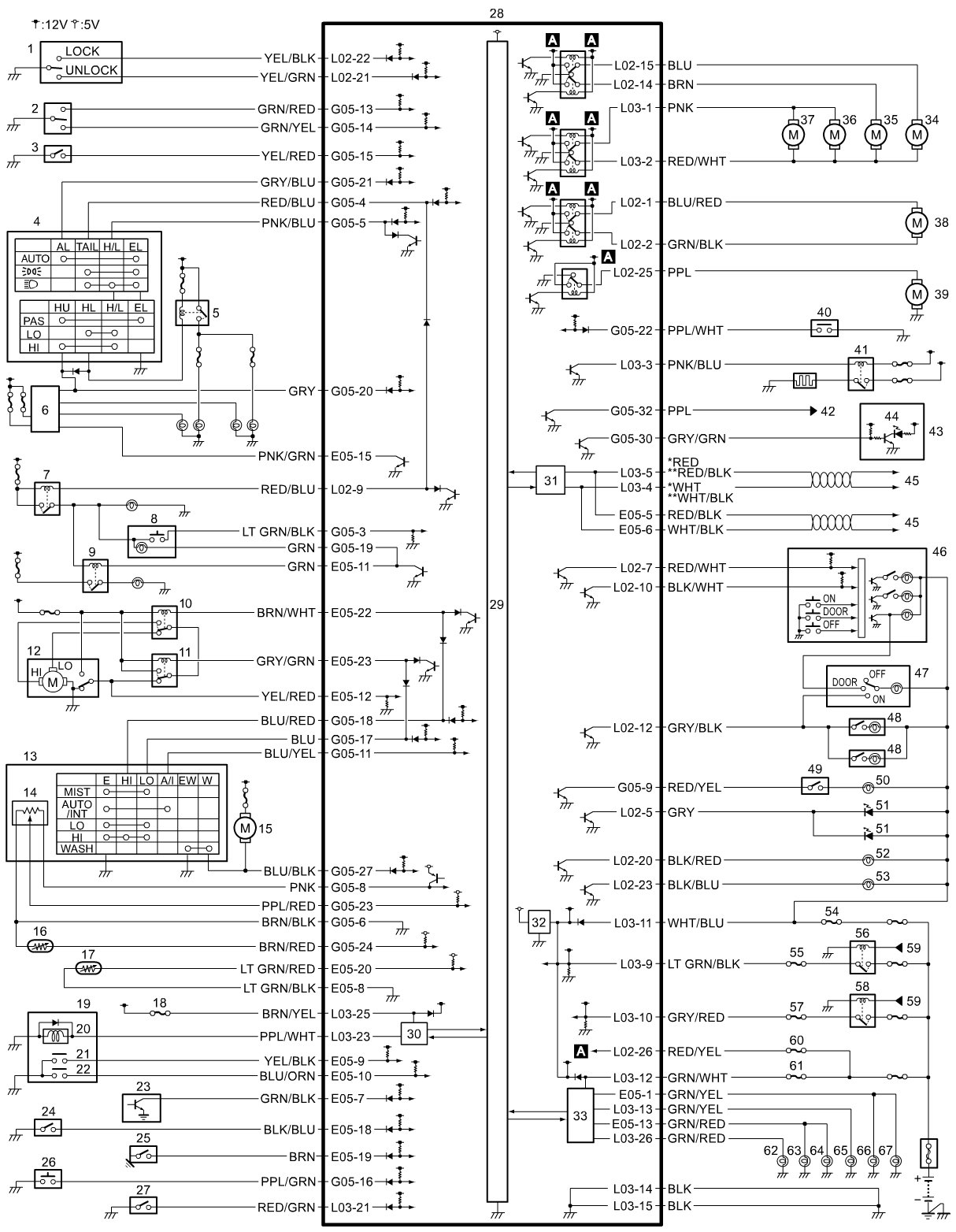

Body Electrical Control System Circuit Diagram
Body Electrical Control System Circuit Diagram
Body Electrical Control System Circuit Diagram
CAN Communication System Circuit Diagram
