Home
>>
Suzuki
>>
2011
>>
SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

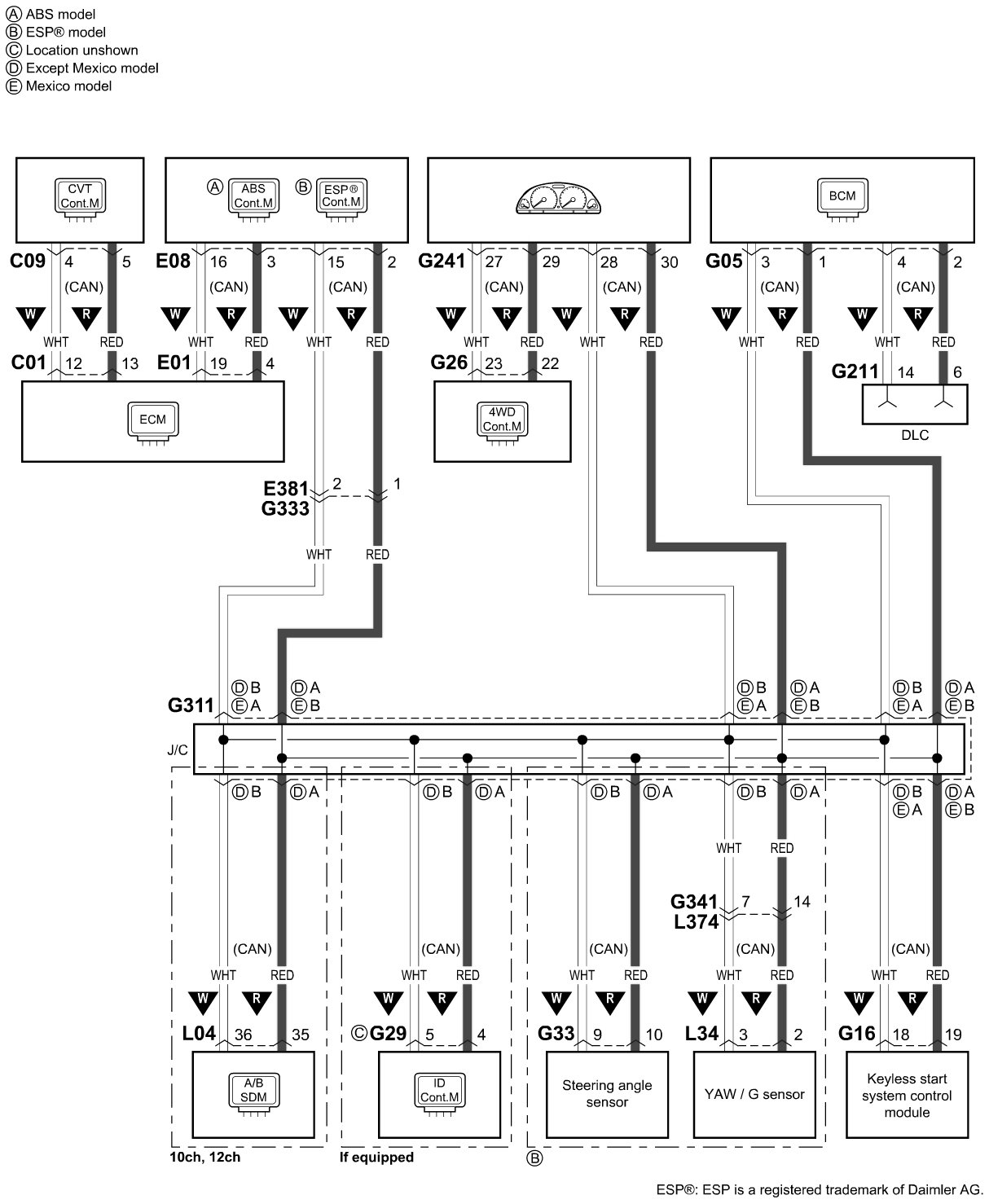

A-9 CAN Circuit Diagram
