Suzuki
>>
2011
>>
Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Description and Operation
>>

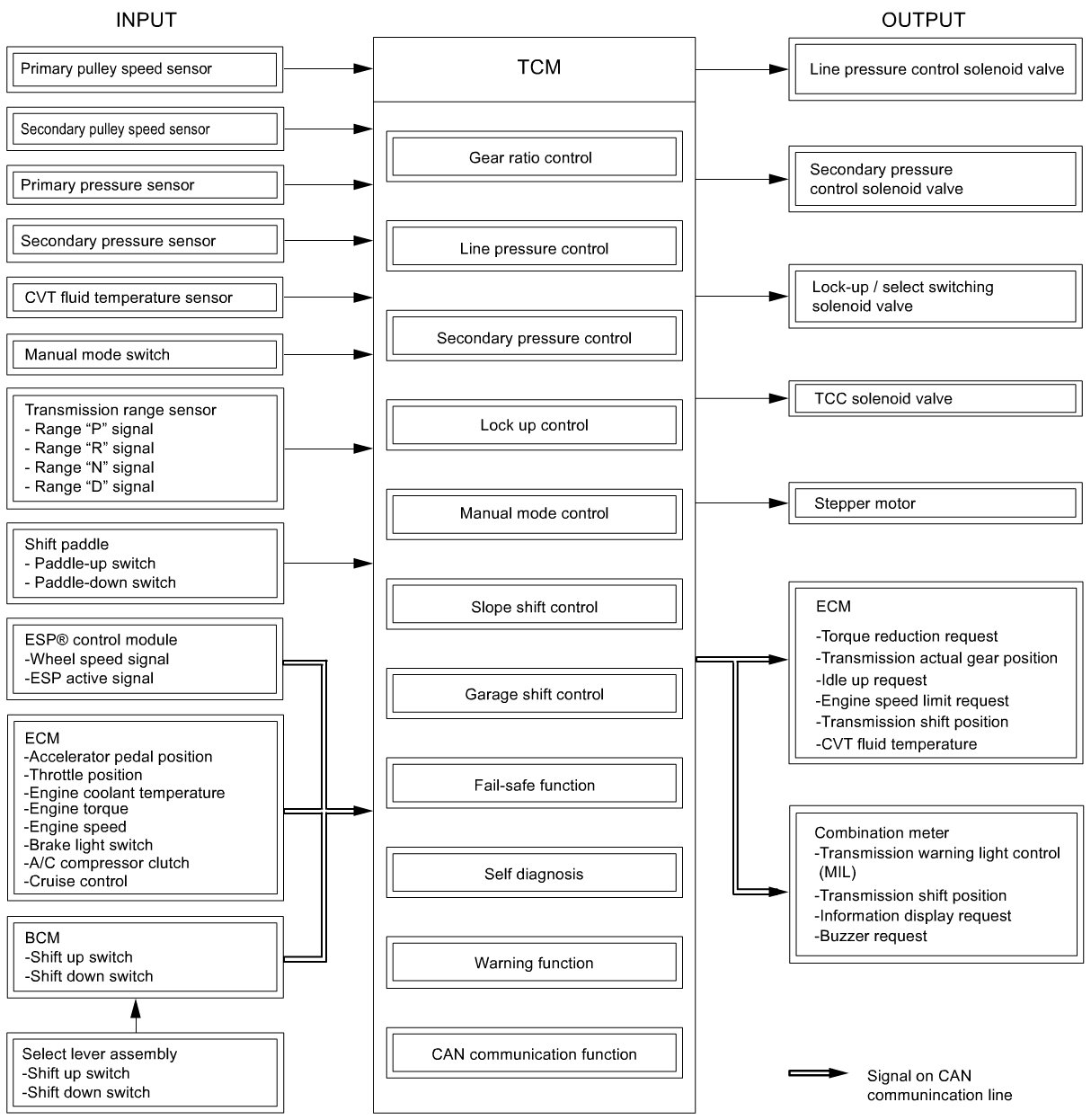

Electronic Shift Control Input / Output Diagram
Electronic Shift Control Input / Output Diagram
Electronic Shift Control Input / Output Diagram
