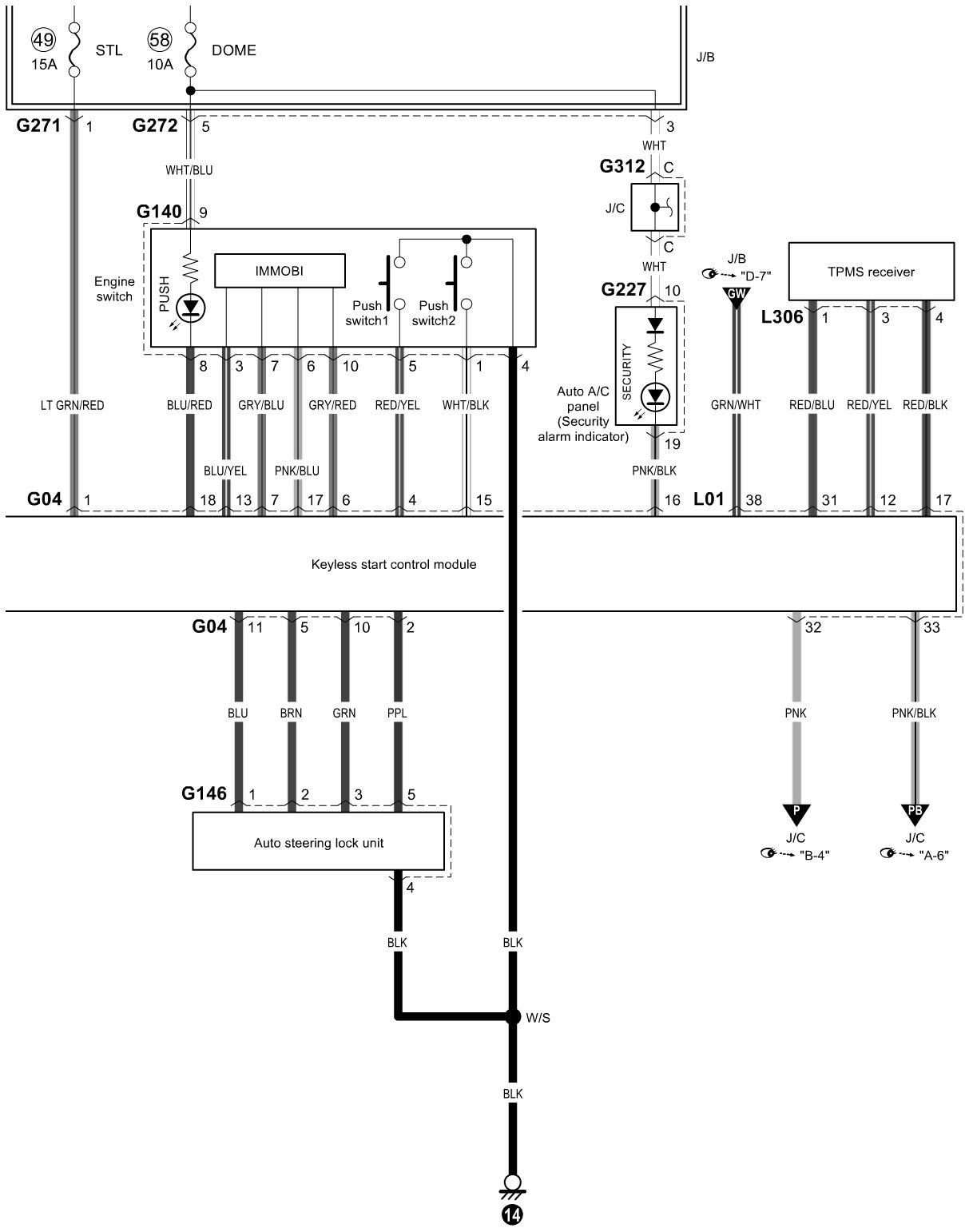

B-8 Keyless Start System Circuit Diagram

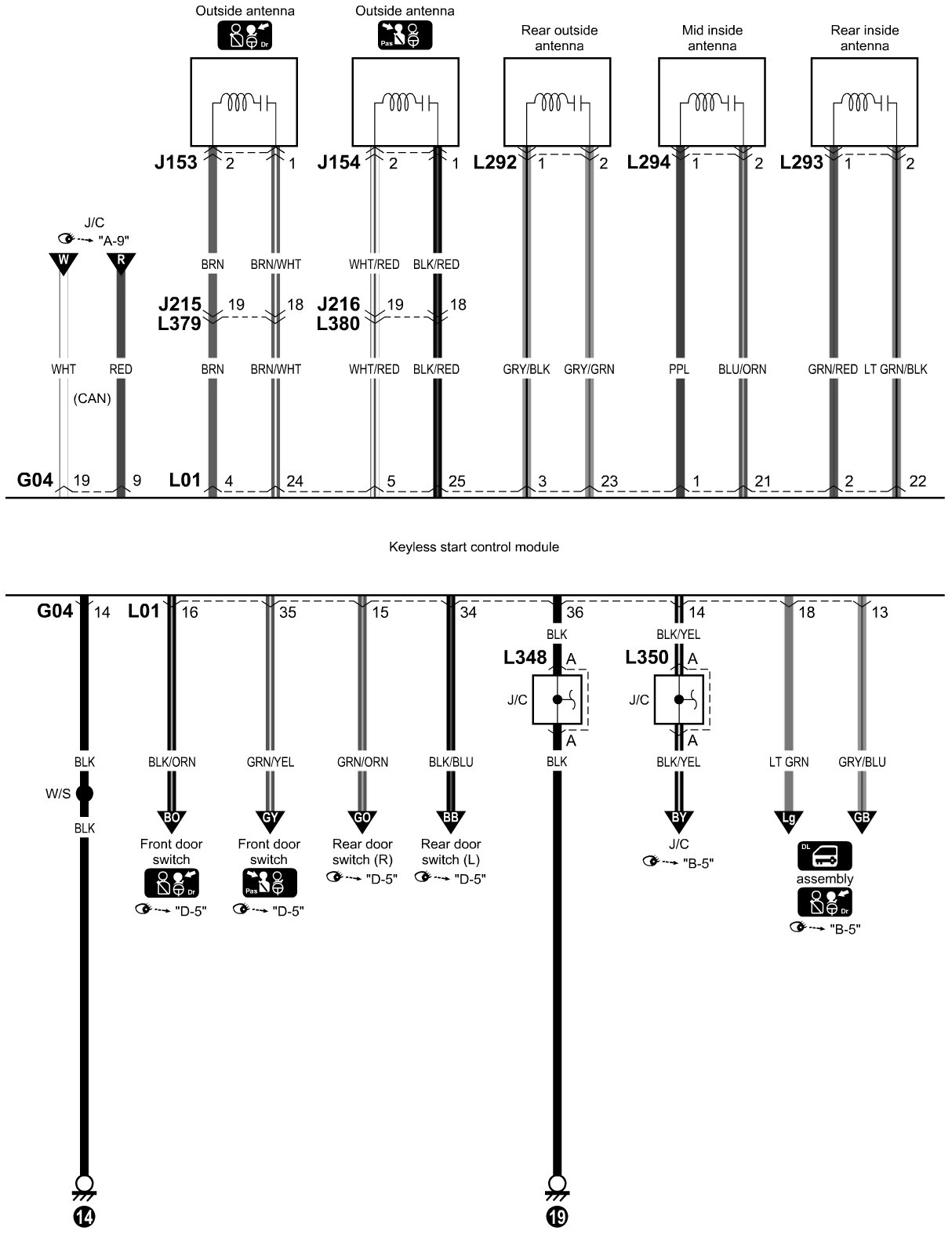

B-8 Keyless Start System Circuit Diagram

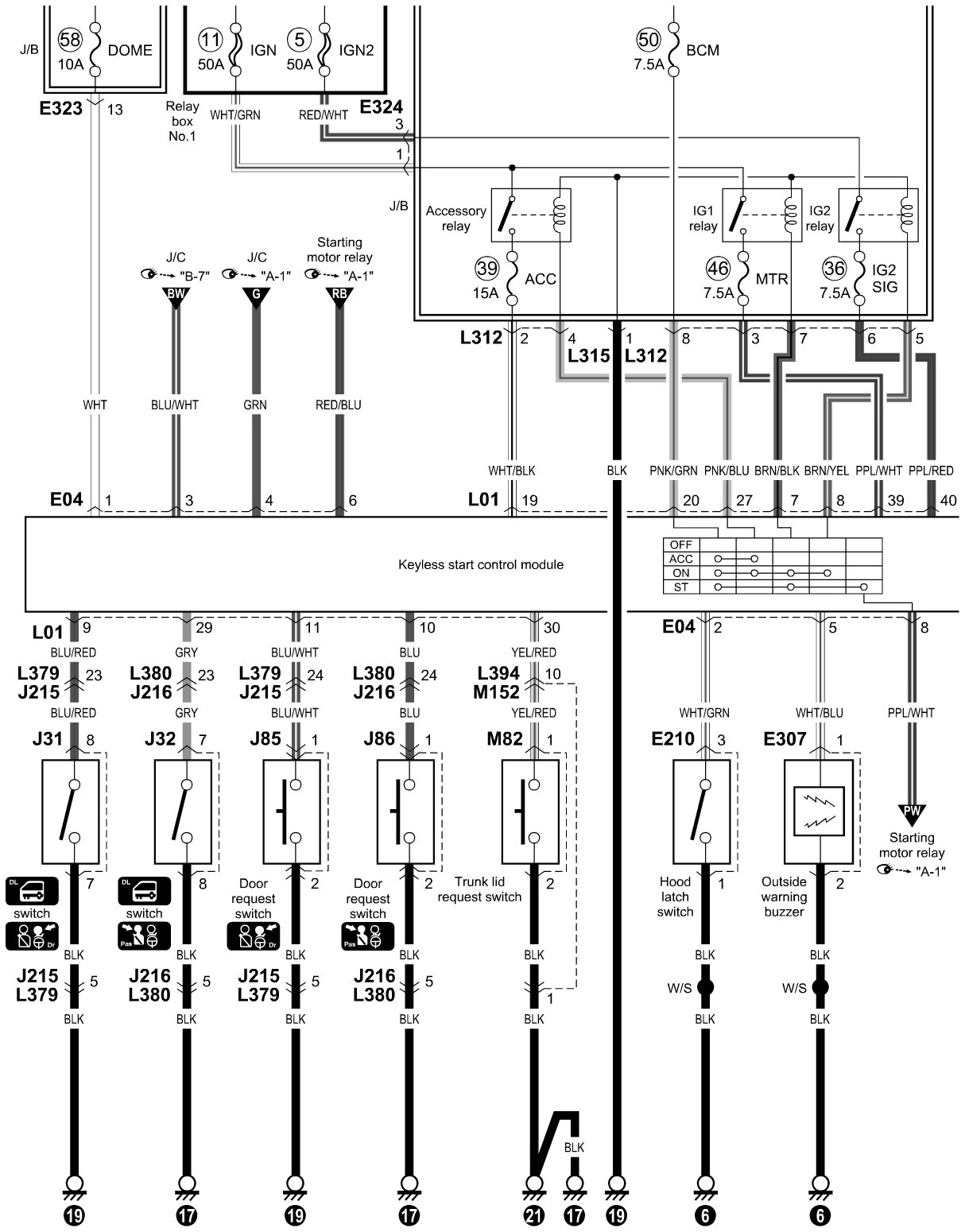

B-8 Keyless Start System Circuit Diagram
