Home
>>
Suzuki
>>
2011
>>
Kizashi AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Stability Program
Electronic Stability Program

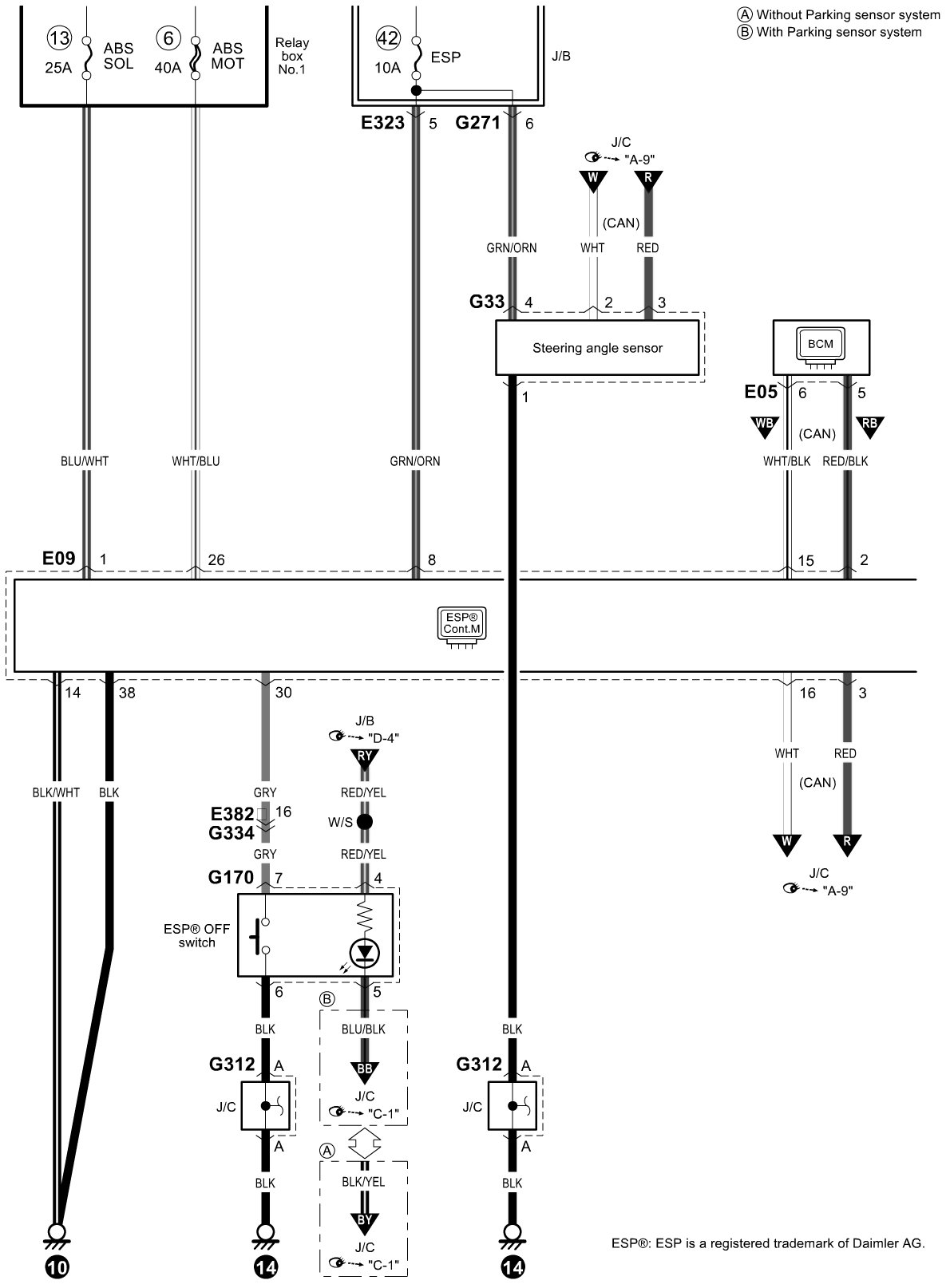

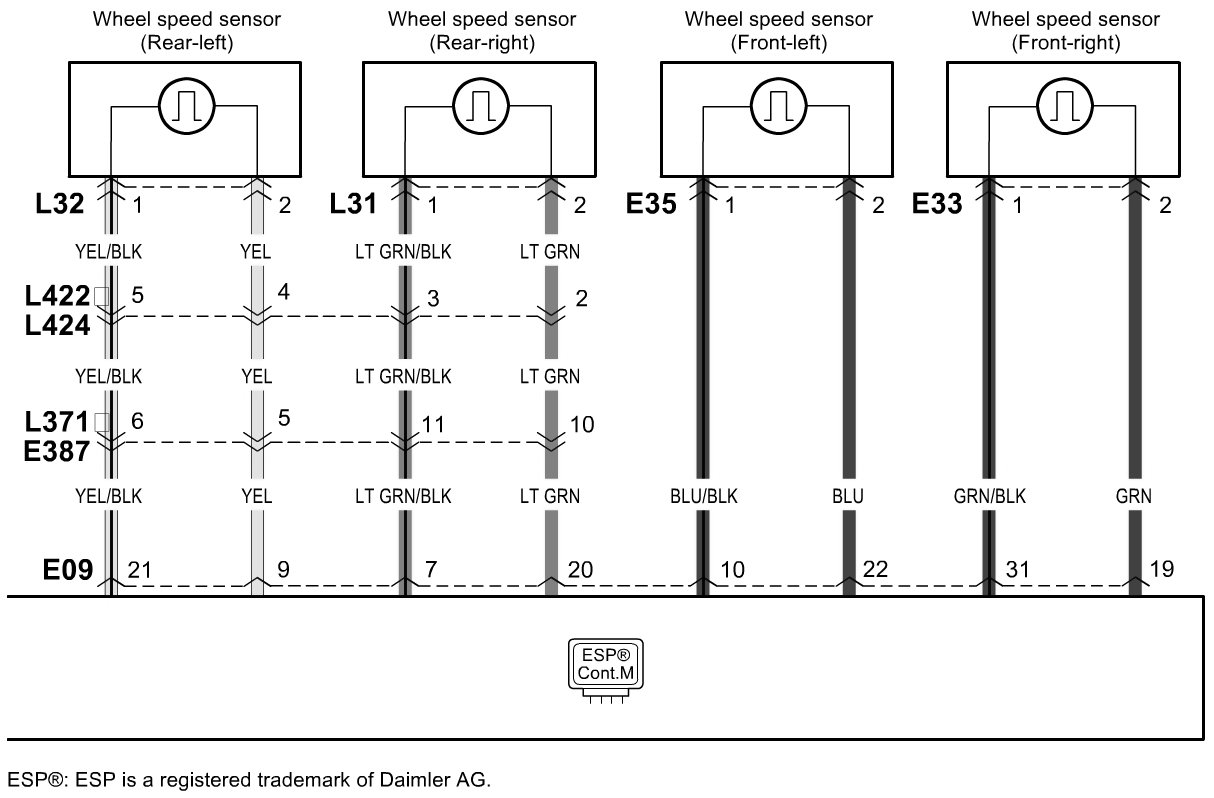

F-3 Electronic Stability Program System Circuit Diagram
