Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2010
>>
SX4 4WD L4-2.0L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Clockspring Assembly / Spiral Cable
>>
Testing and Inspection
>>
Advanced Air Bag
Advanced Air Bag
Contact Coil Cable and Its Circuit Check

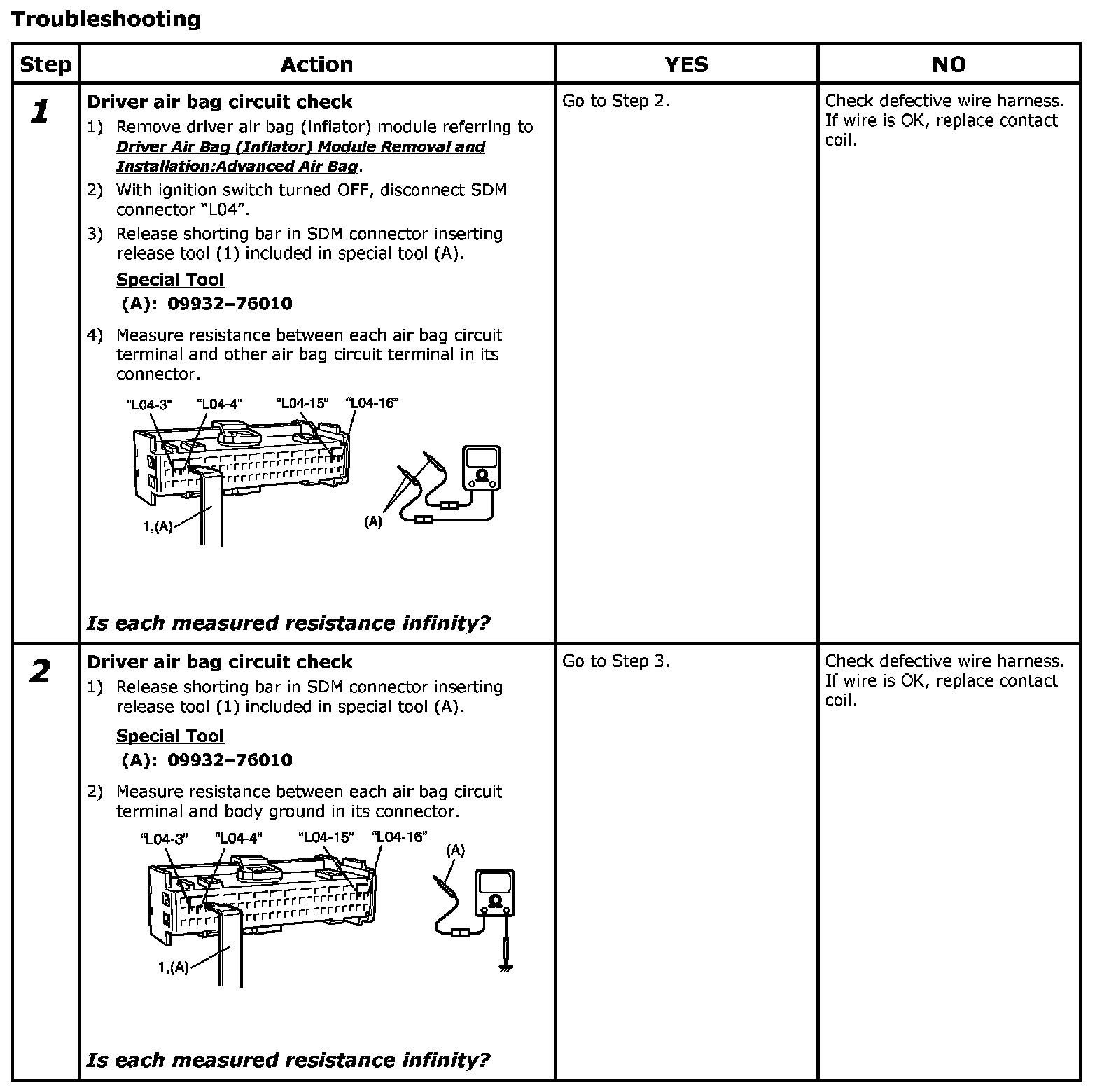

Step 1-2:

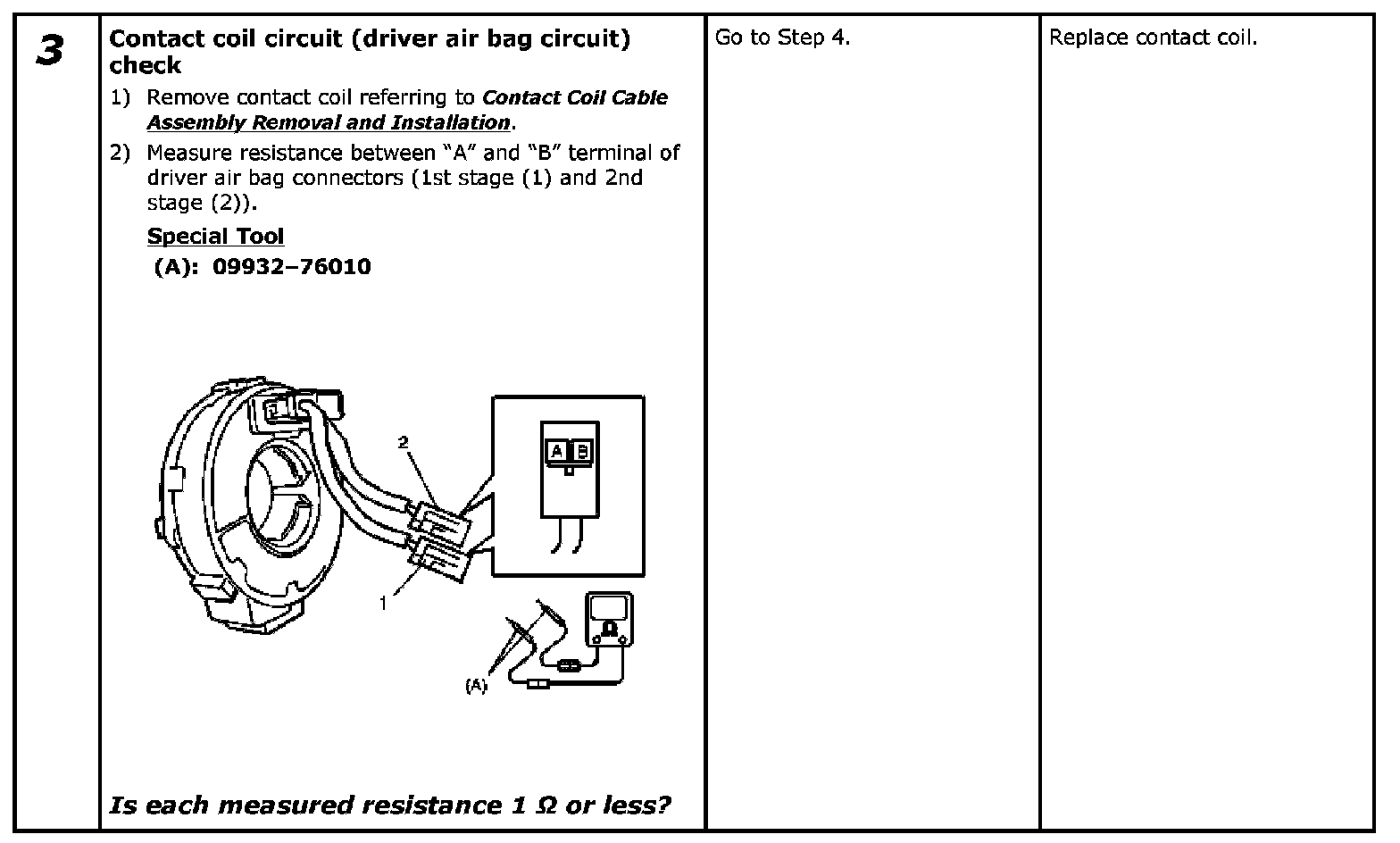

Step 3:

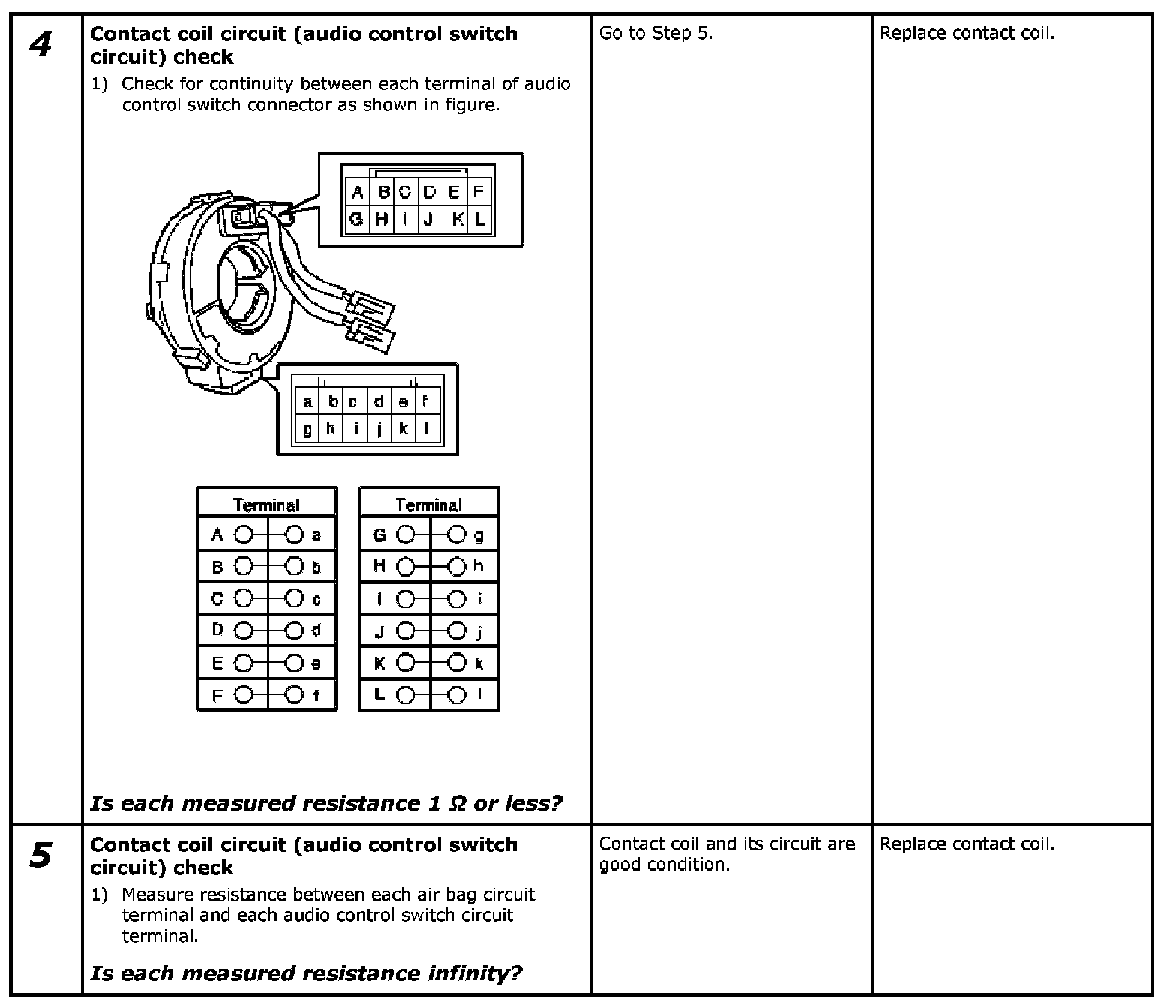

Step 4-5:
