Tie-Rod End Initial Position Setting

Tie-Rod End Initial Position Setting

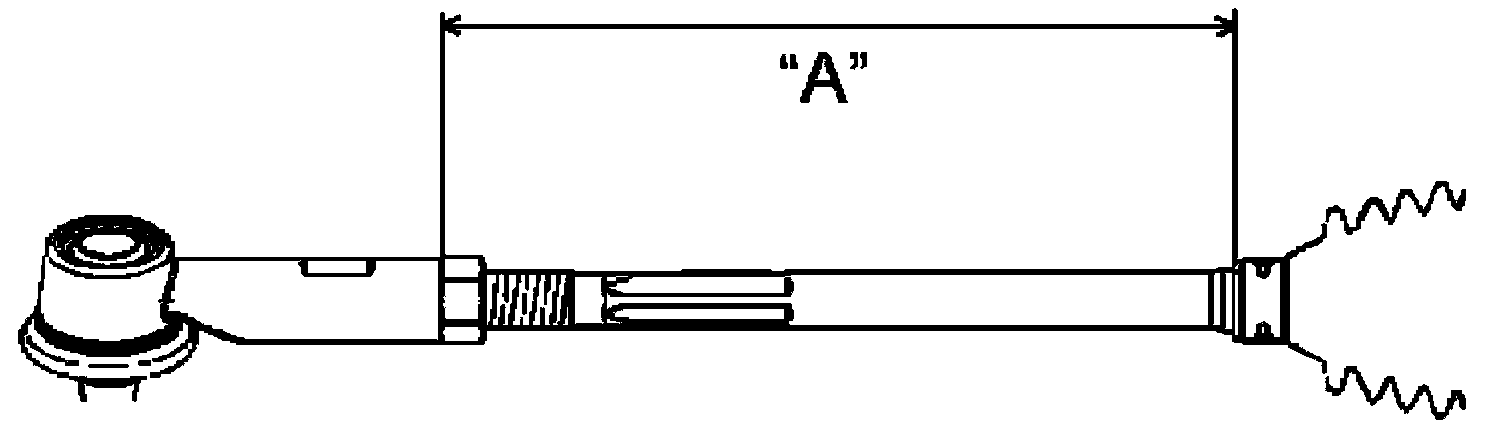

Set tie-rods to following specified length "A".

Initial position of tie-rod end "A"
: Approx. 201 mm (7.91 in.)
