Electronic Power Steering System (EPS)

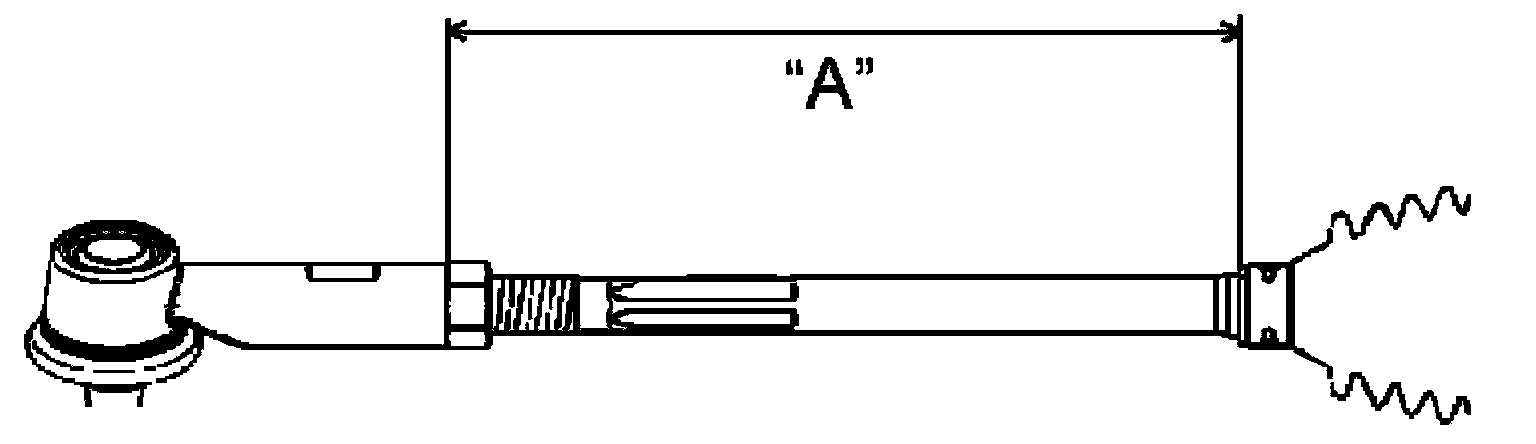

Tie-Rod End Initial Position SettingSet tie-rods to following specified length "A".
Initial position of tie-rod end "A"
Driver side: Approx. 195 mm (7.68 in.)
Passenger side: Approx. 233 mm (9.17 in.)
Set tie-rods to following specified length "A".
Initial position of tie-rod end "A"
Driver side: Approx. 195 mm (7.68 in.)
Passenger side: Approx. 233 mm (9.17 in.)
