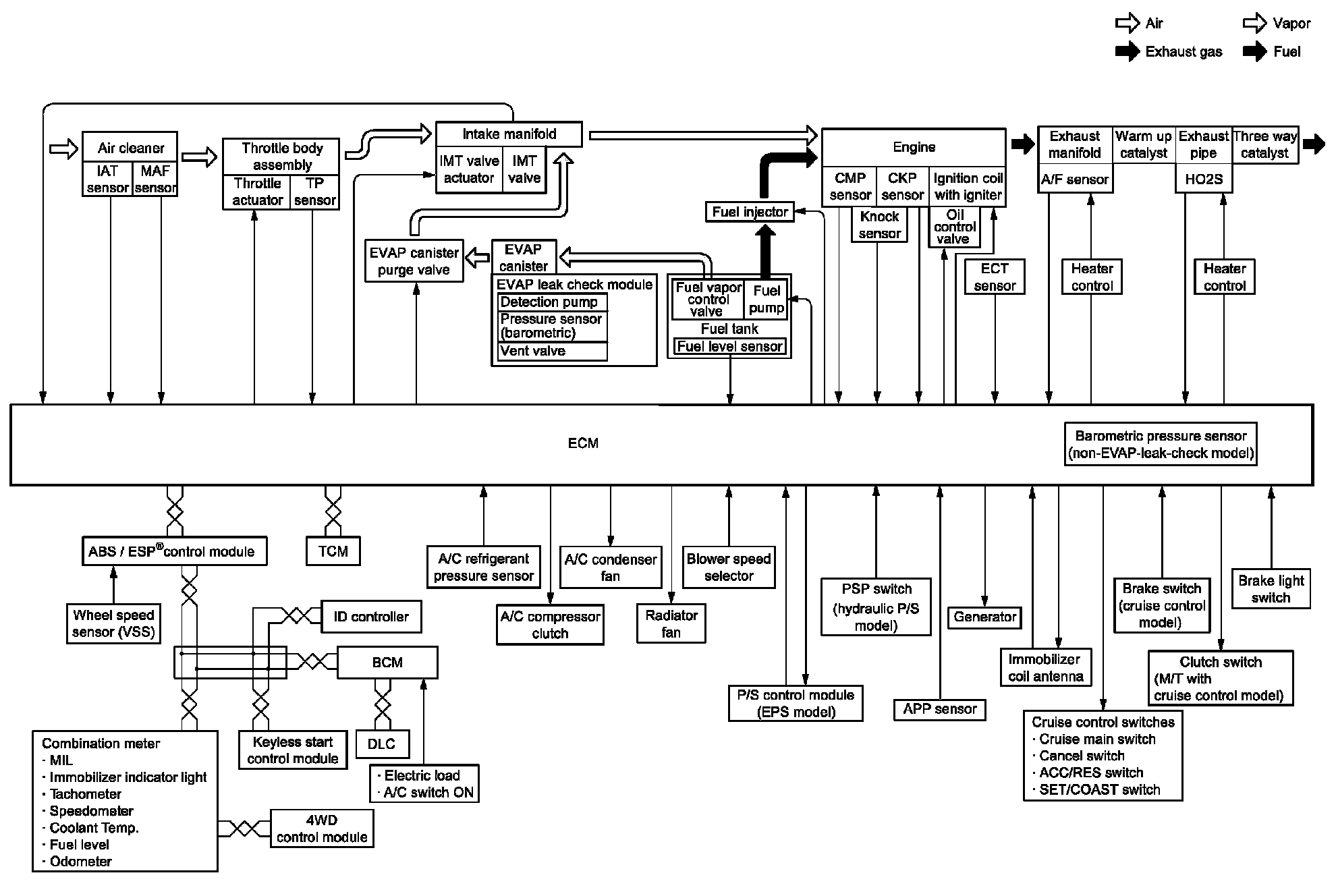

Engine and Emission Control System Flow Diagram
Engine and Emission Control System Flow Diagram
Engine and Emission Control System Flow Diagram
Engine and Emission Control System Flow Diagram:
