Radiator Cooling Fan Control System Circuit Diagram

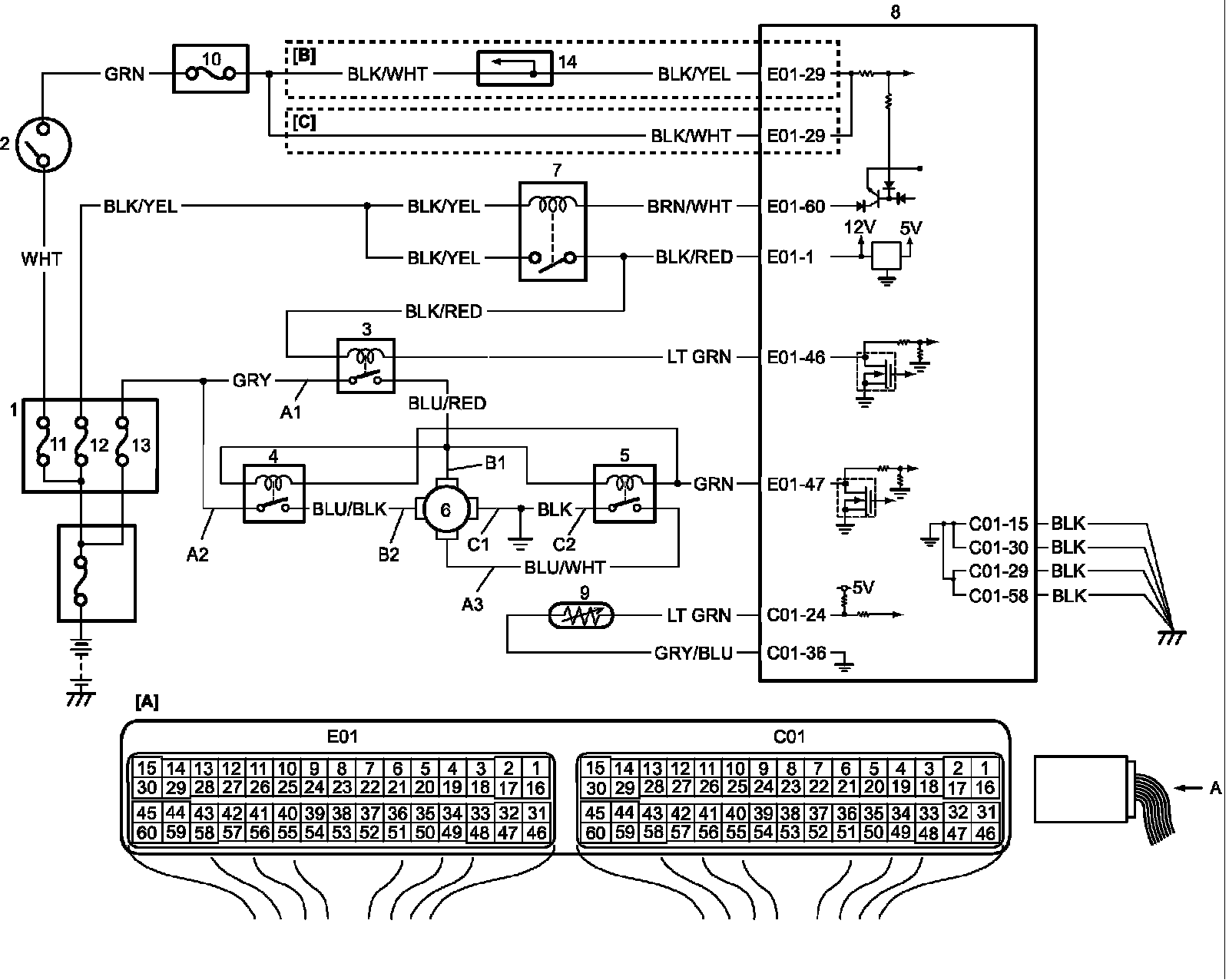

Radiator Cooling Fan Control System Circuit Diagram

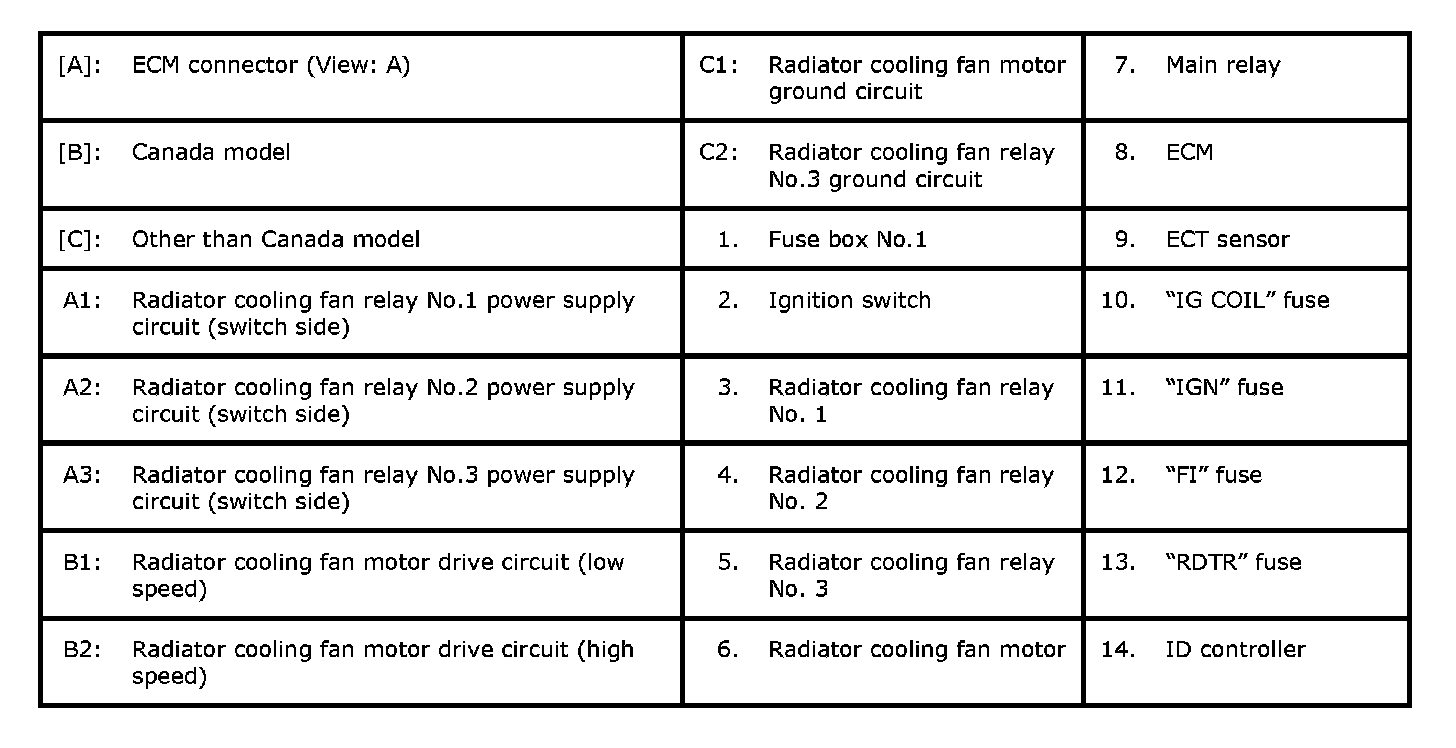

Radiator Cooling Fan Control System Circuit Diagram
