Radio/Stereo: Service and Repair

Audio Unit Removal and Installation (If Equipped)

Removal
1. Disconnect negative (-) cable at battery.

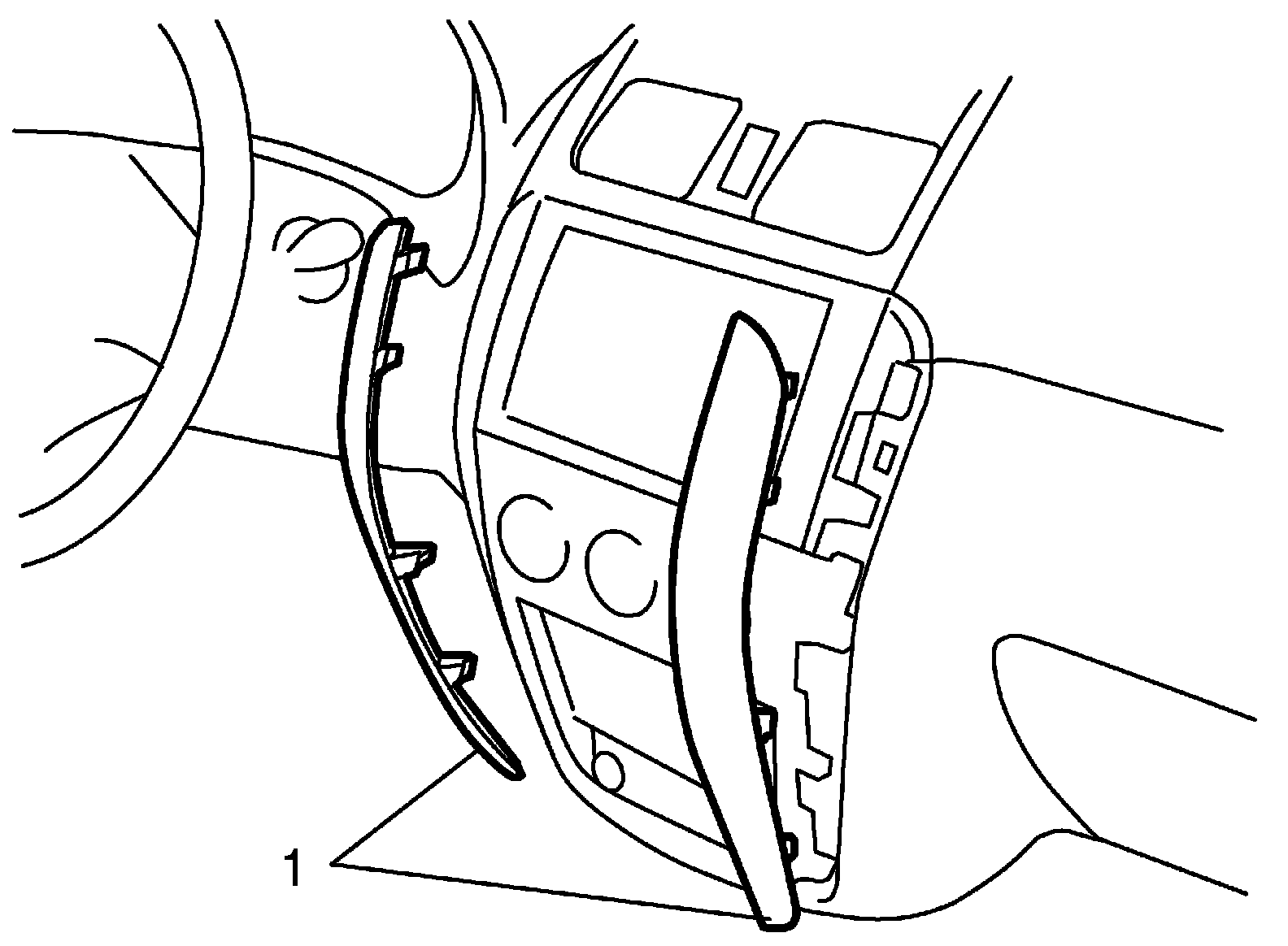

2. Remove instrument panel center garnish trims (1).

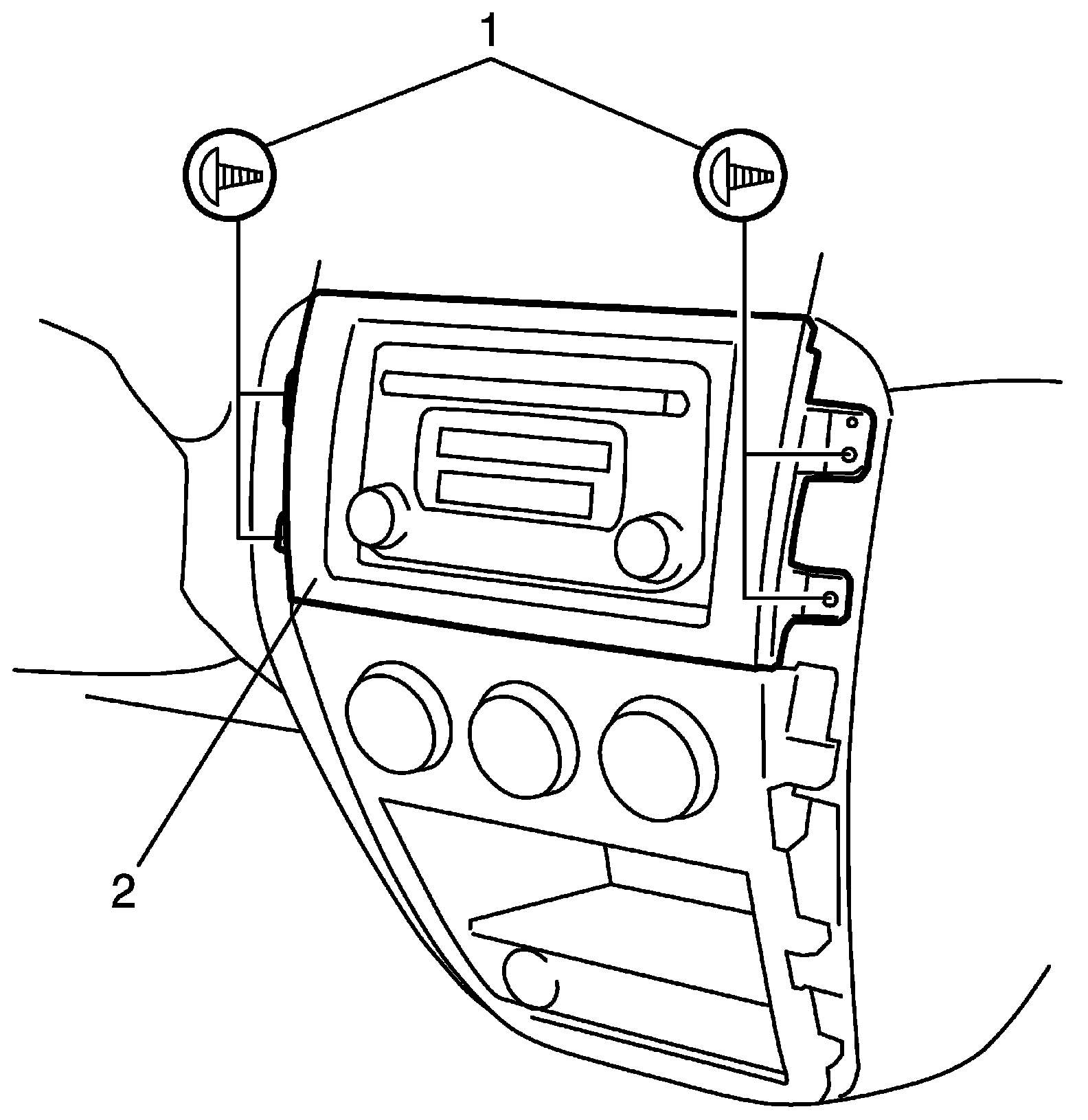

3. Remove 4 mounting screws (1).
4. Disconnect electrical connectors from audio unit.
5. Remove audio unit (2) from instrument panel.






Installation
Reverse removal procedure.
