HVAC Control System Circuit Diagram
HVAC Control System Circuit Diagram
HVAC Control System Circuit Diagram

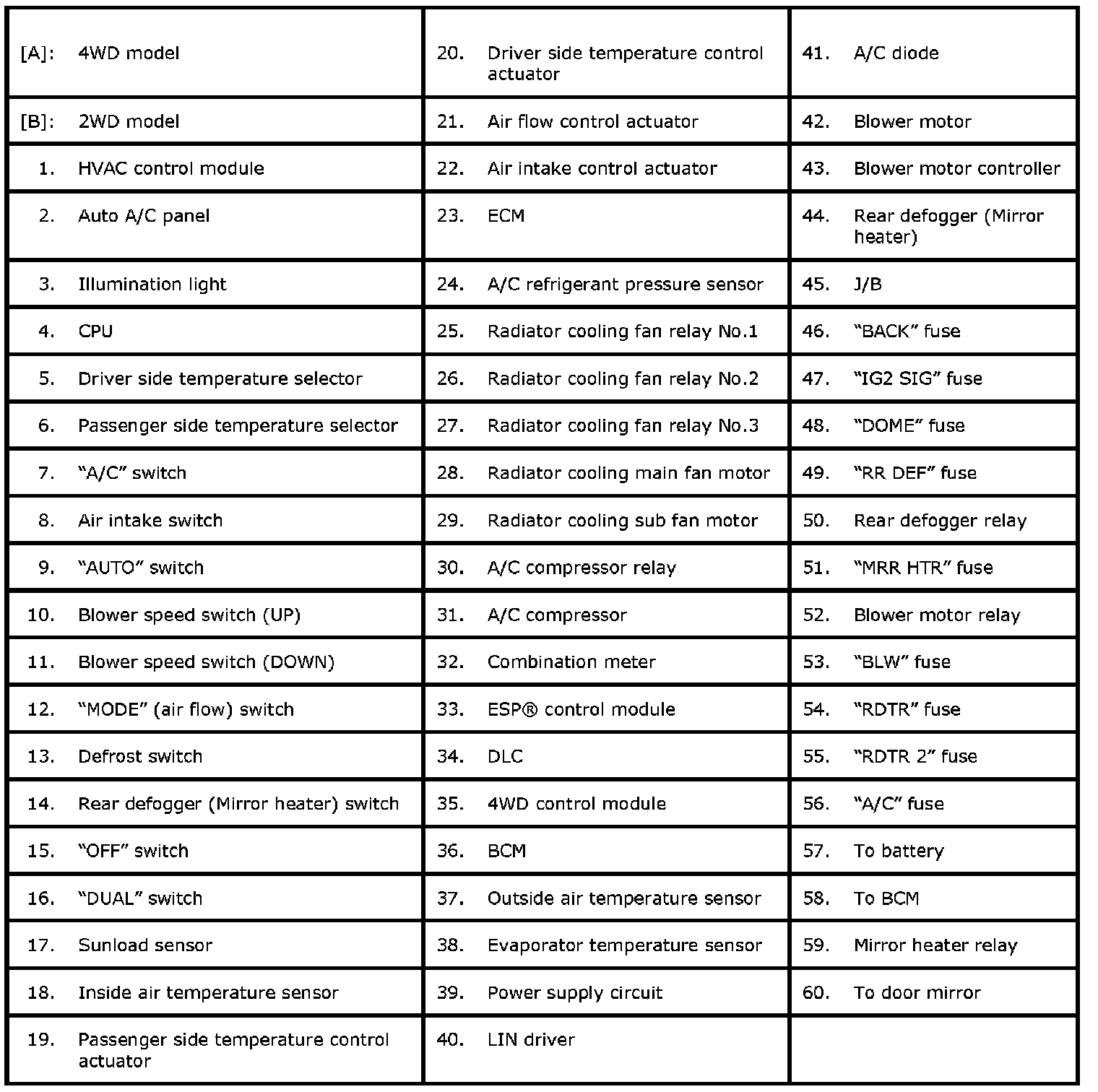

HVAC Control System Circuit Diagram (Part 1):
HVAC Control System Circuit Diagram (Part 2):
