Sun Roof System Circuit Diagram
Sun Roof System Circuit Diagram
Sun Roof System Circuit Diagram

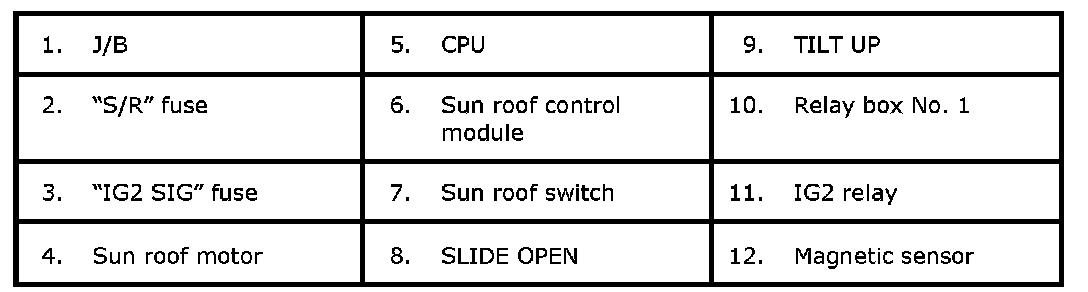

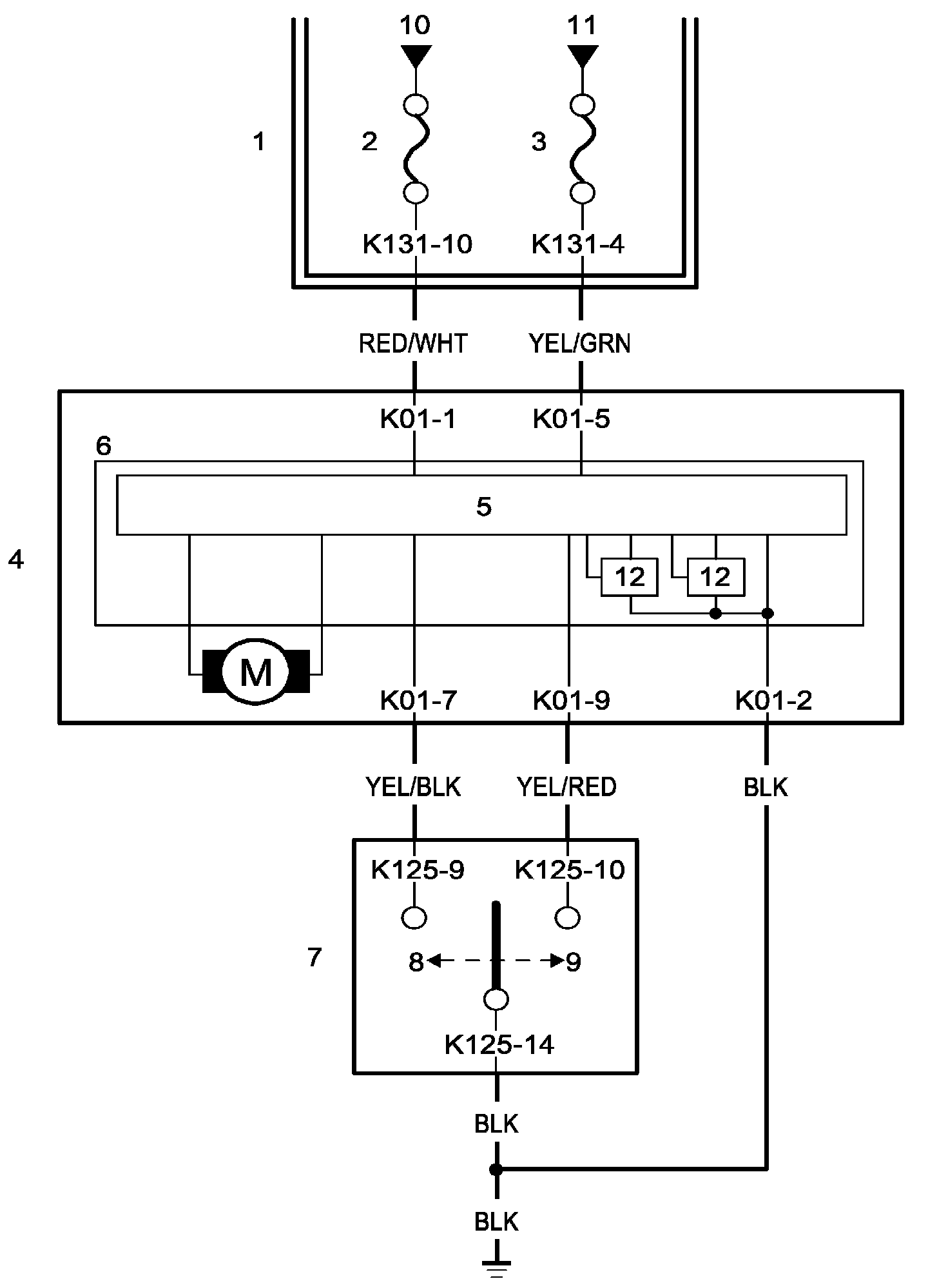

Sun Roof System Circuit Diagram:
