Air Bag System

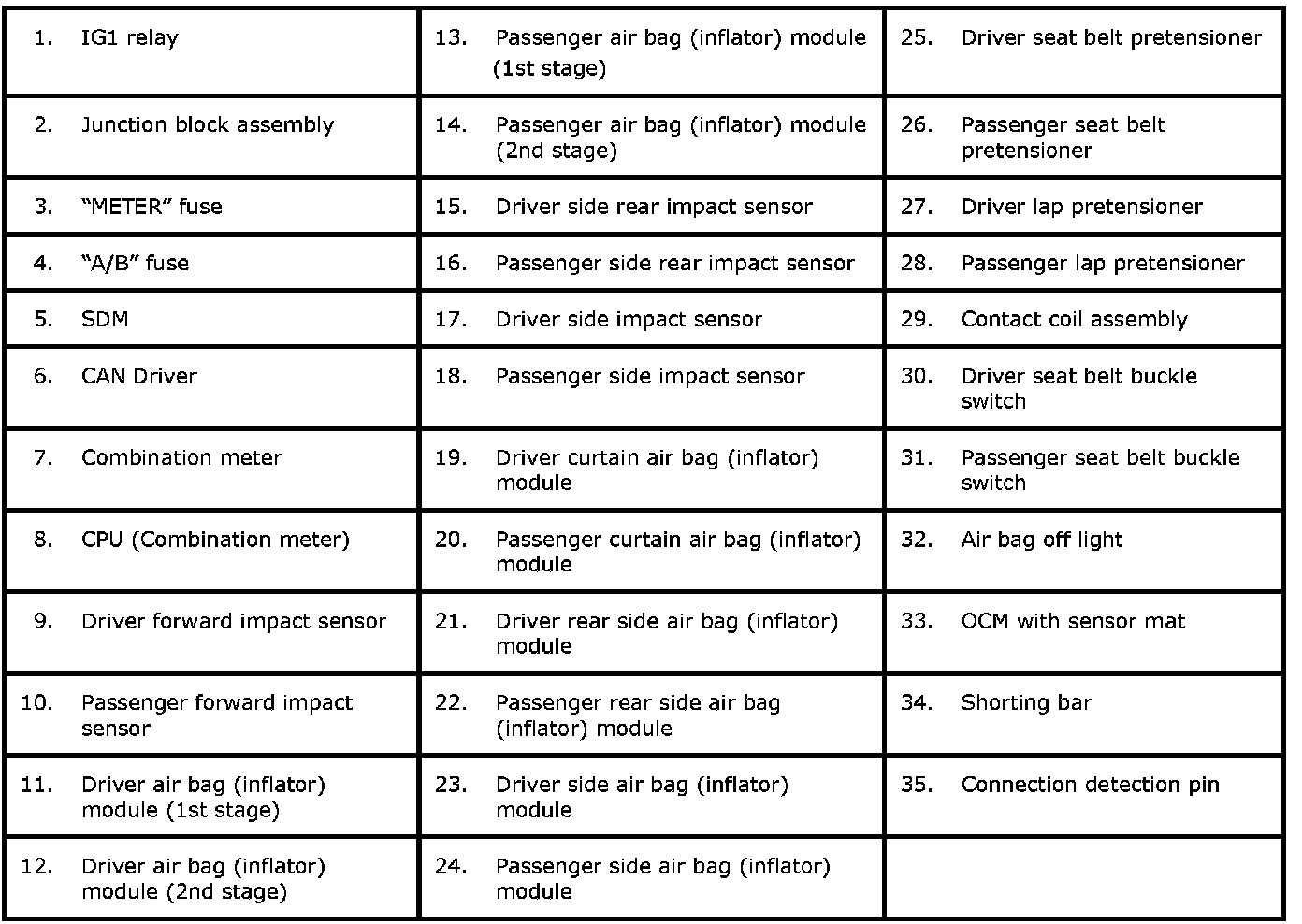

Air Bag System Wiring Circuit DiagramAir Bag System Wiring Circuit Diagram 1:
Air Bag System Wiring Circuit Diagram 2:

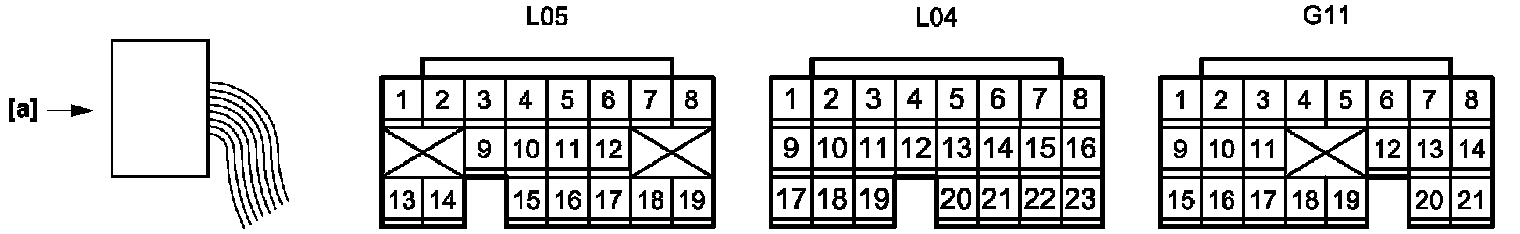

Terminal arrangement of SDM connector

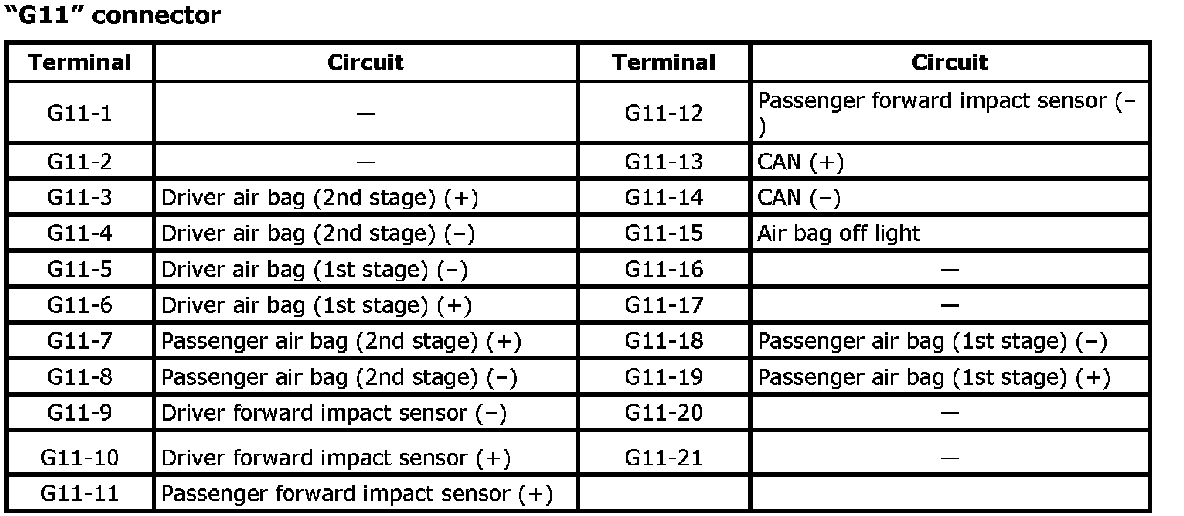

"G11"connector

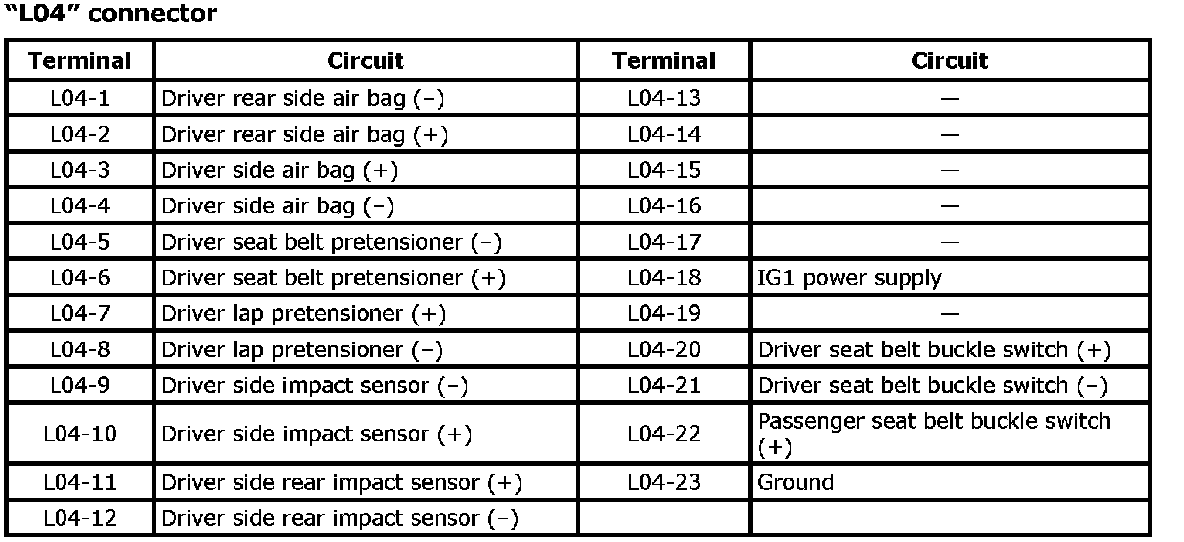

"L04"connector

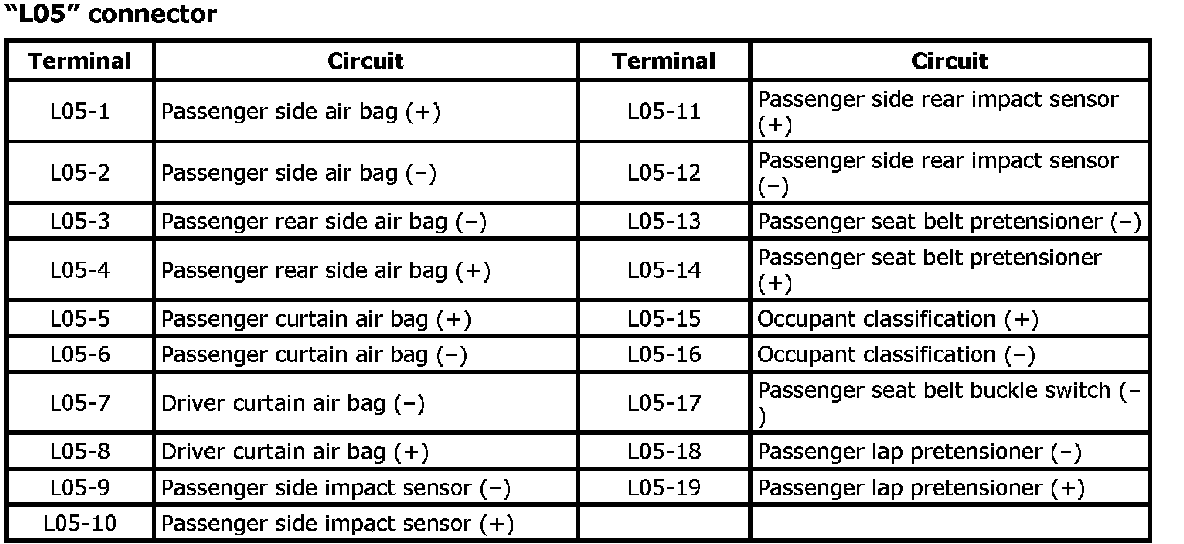

"L05"connector
Terminal arrangement of SDM connector
"G11"connector
"L04"connector
"L05"connector
