Home
>>
Suzuki
>>
2010
>>
Kizashi FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
System Diagram
System Diagram

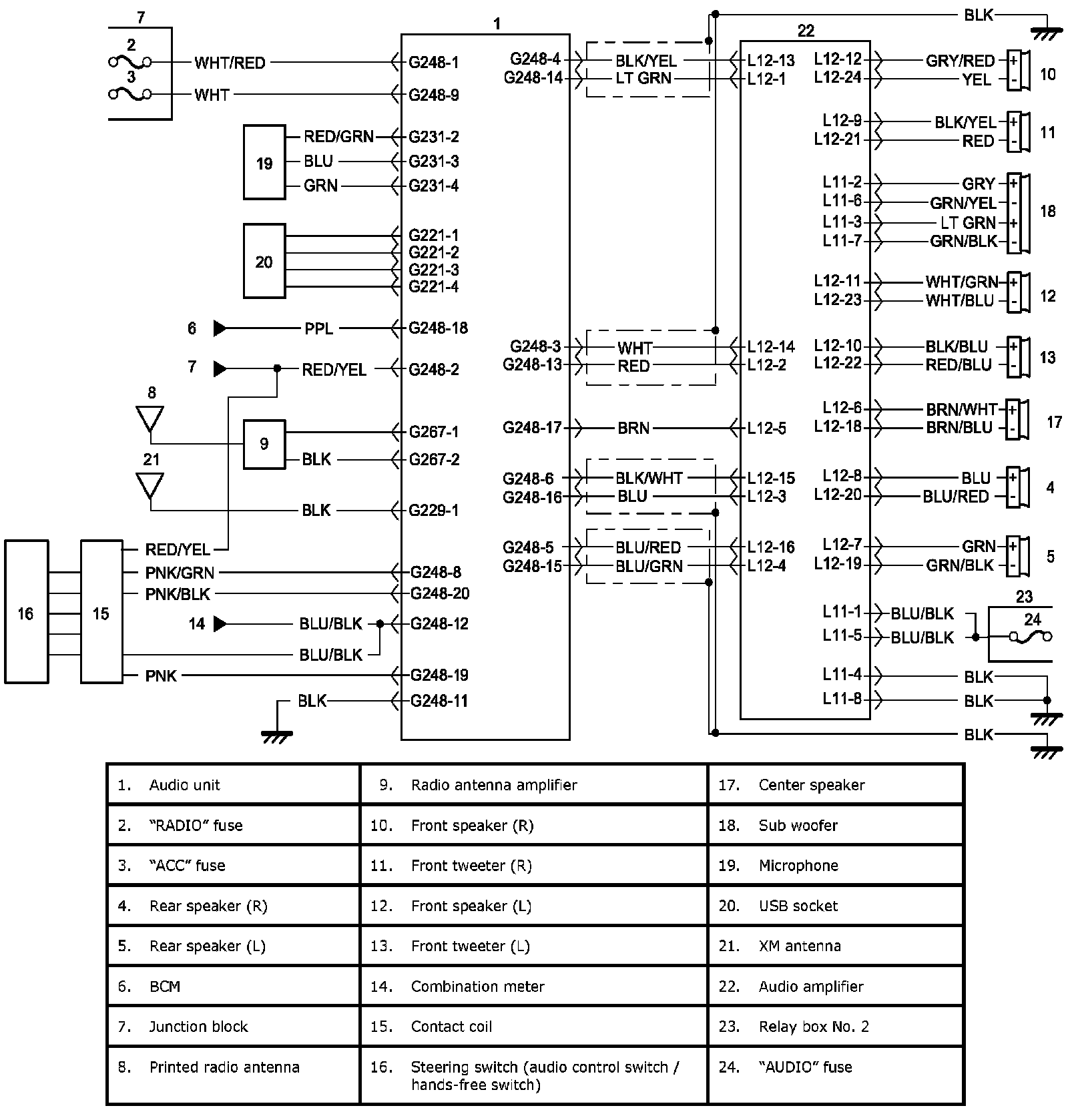

Audio System Circuit Diagram
Without Audio Amplifier
With Audio Amplifier
