Brake Pedal Free Height Inspection
Check brake pedal free height. If it is not within specification, check and adjust the following items.
^ Brake light switch position.
^ Brake booster for installation.
^ Length of brake booster push rod.

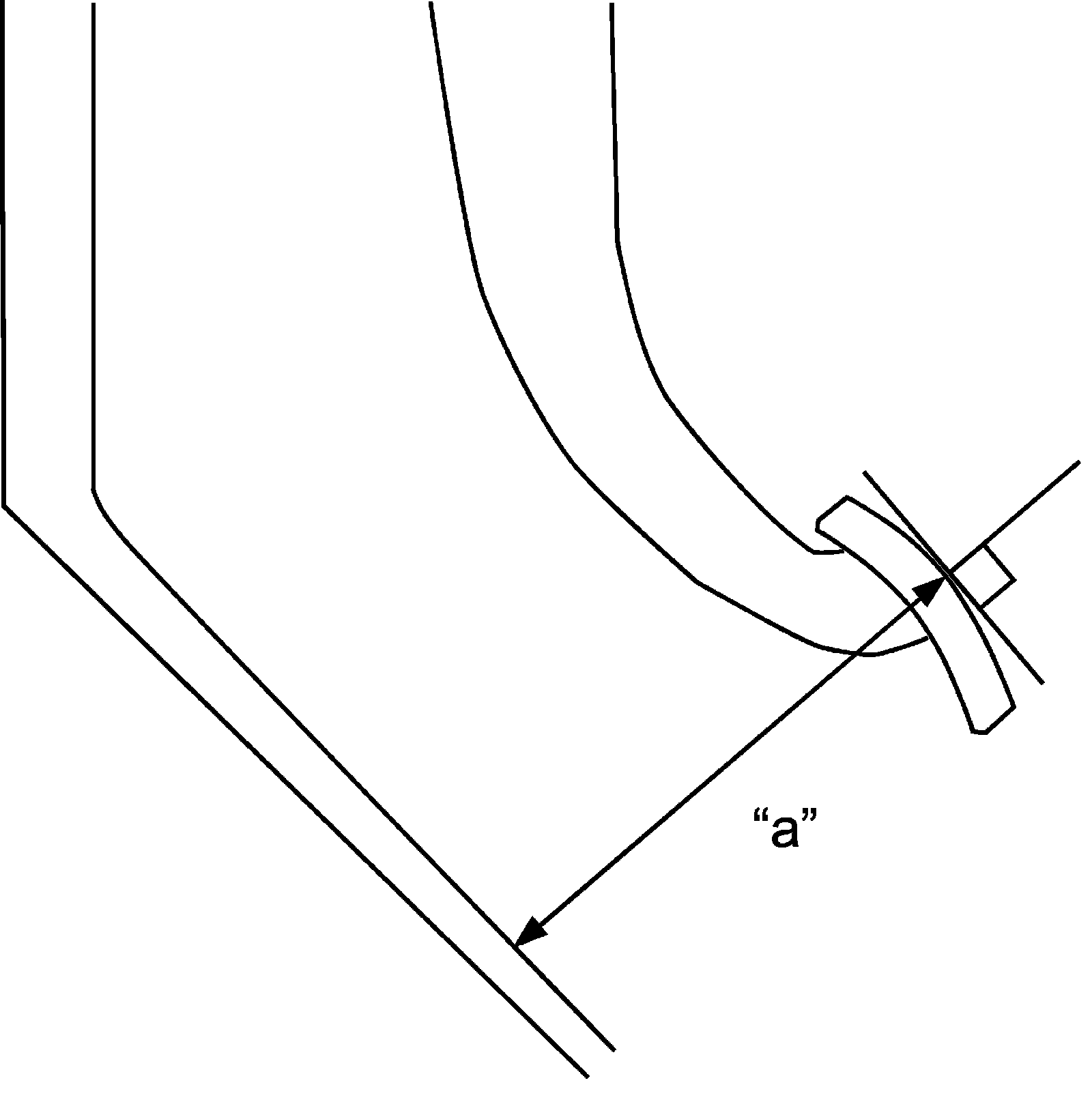

Brake pedal free height "a" from carpet
140 - 160 mm (5.51 - 6.30 in.)
