Underbody Cover: Service and Repair

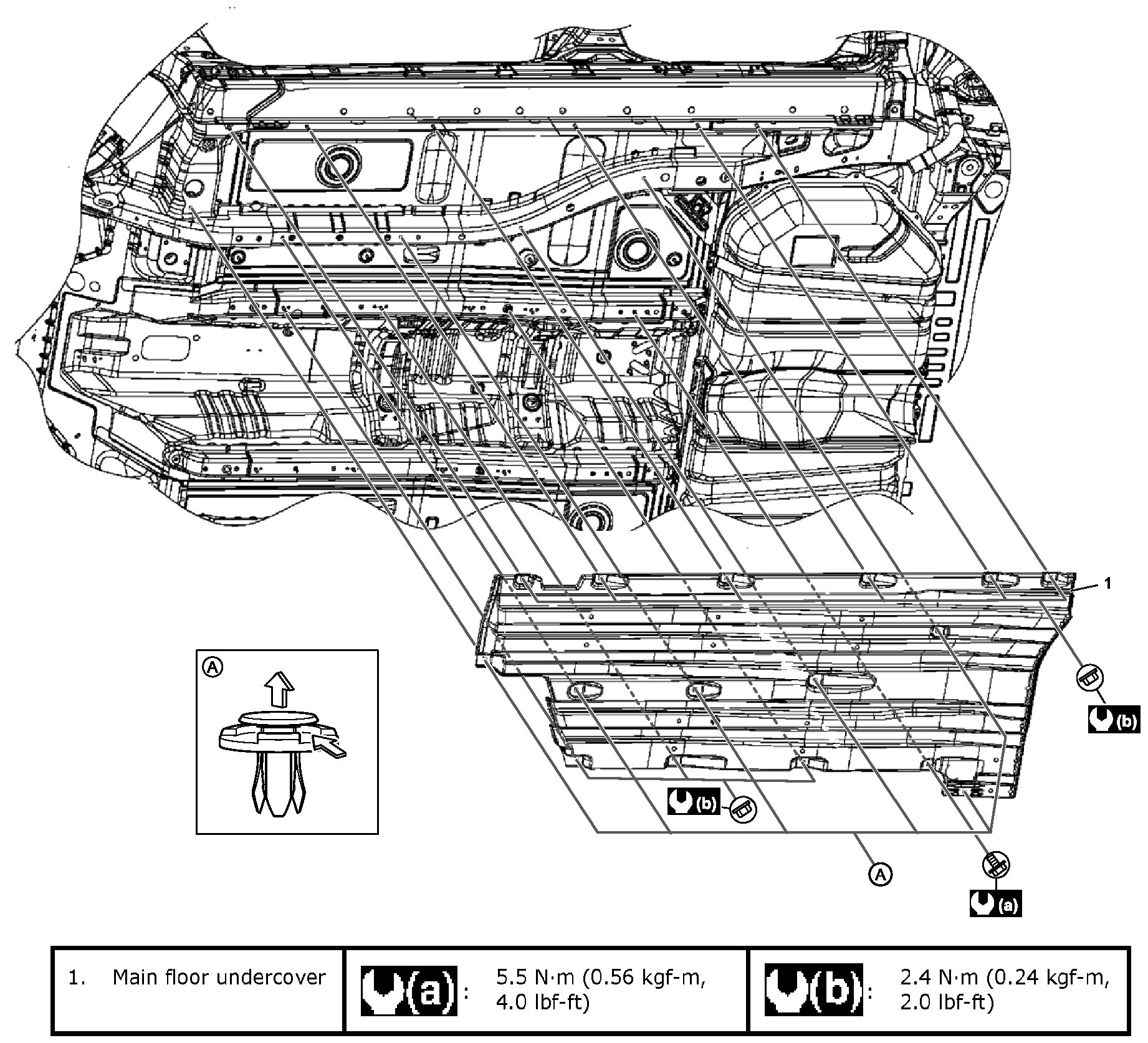

Main Floor Undercover Removal And Installation

Remove and install parts referring to figure.
