Home >> Suzuki >> 2010 >> Kizashi FWD L4-2.4L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1850

B1850

DTC B1850

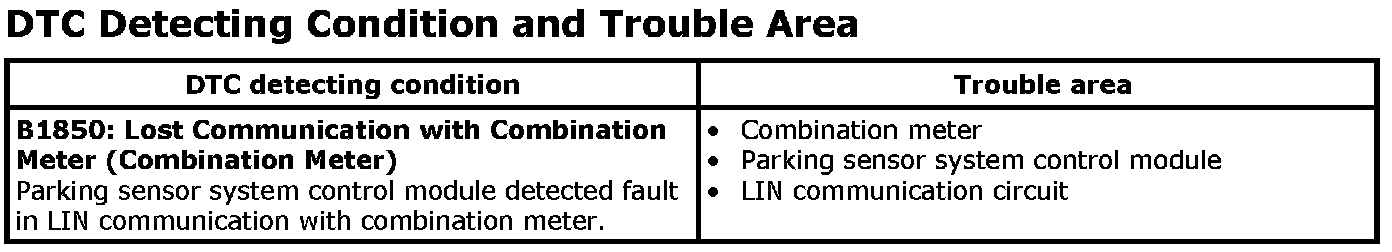

DTC Detecting Condition and Trouble Area

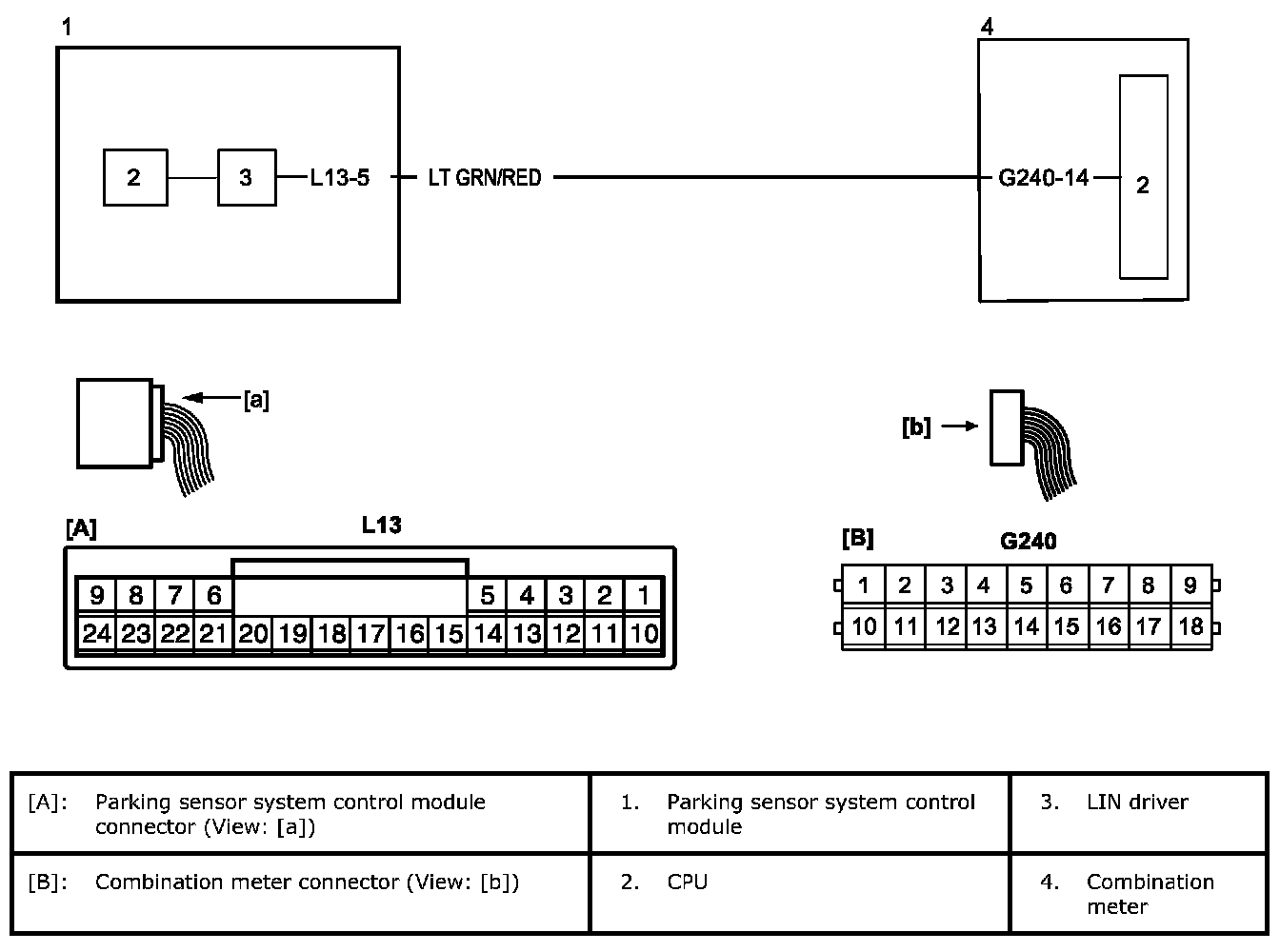

Circuit Diagram


Circuit Diagram:

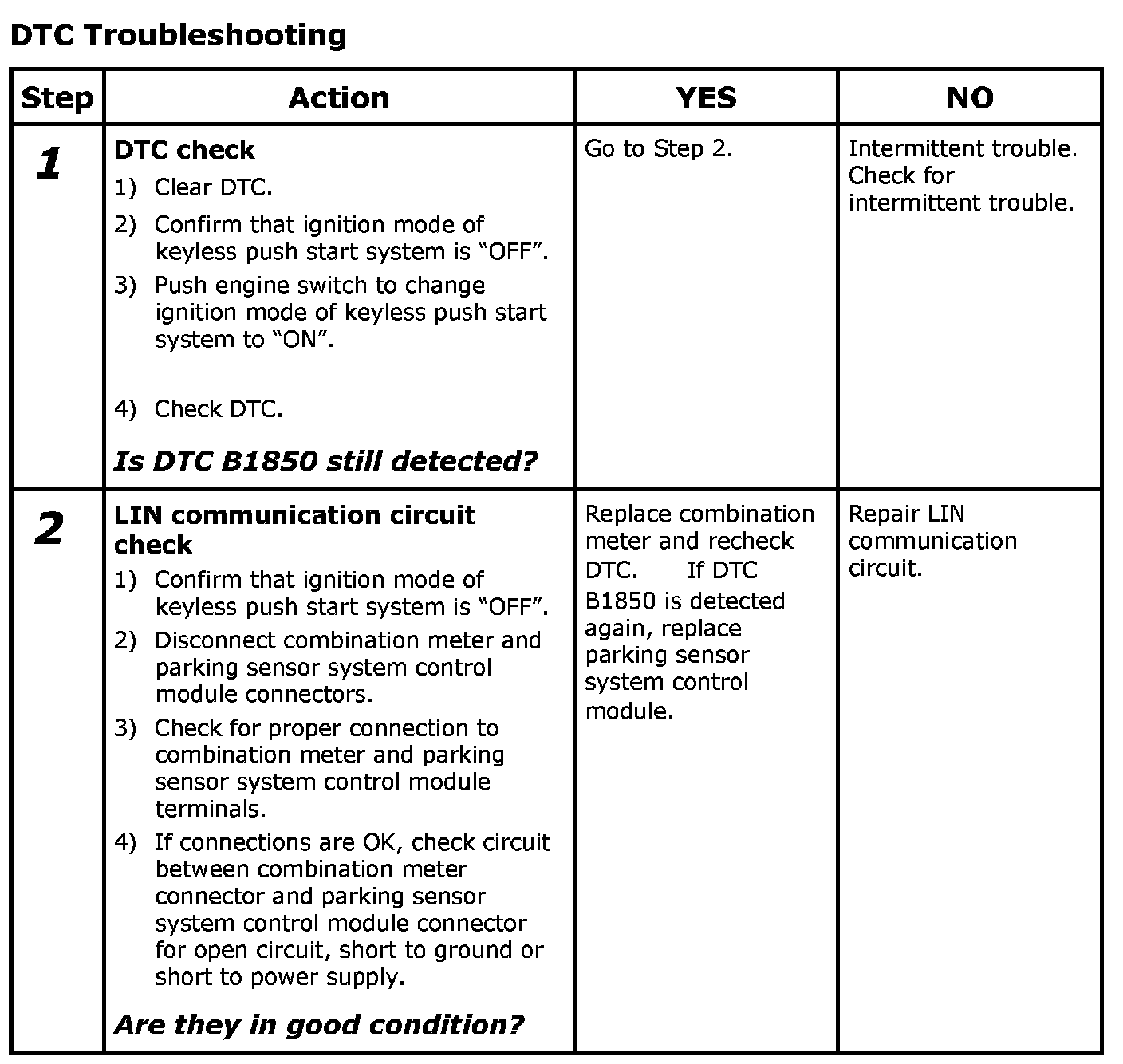

DTC Troubleshooting


Step 1-2:
