B1810

DTC B1810

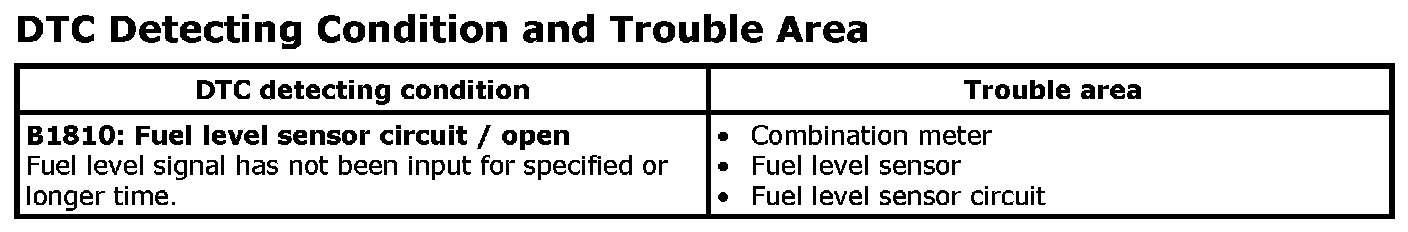

DTC Detecting Condition and Trouble Area

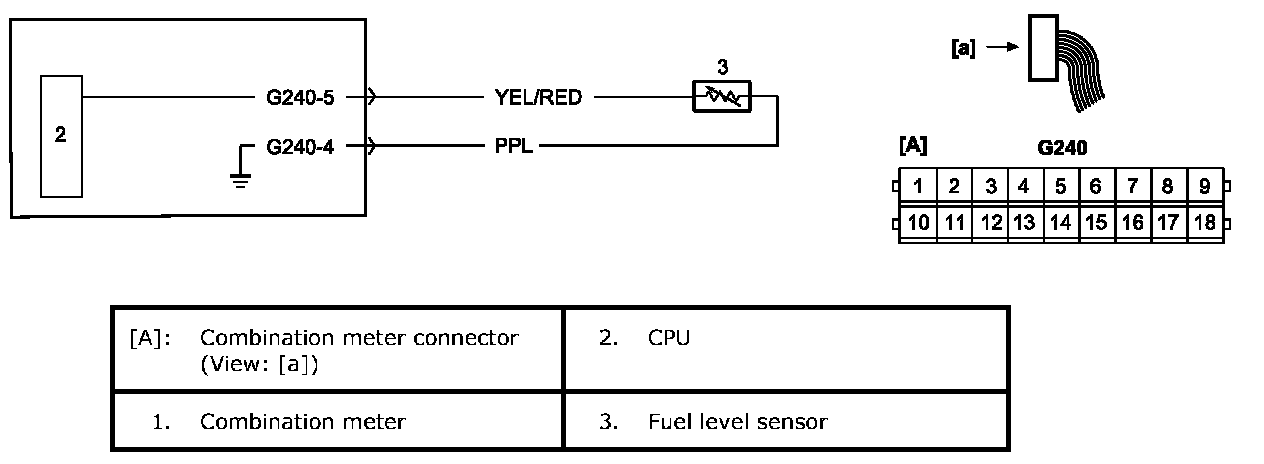

Circuit Diagram


Circuit Diagram:

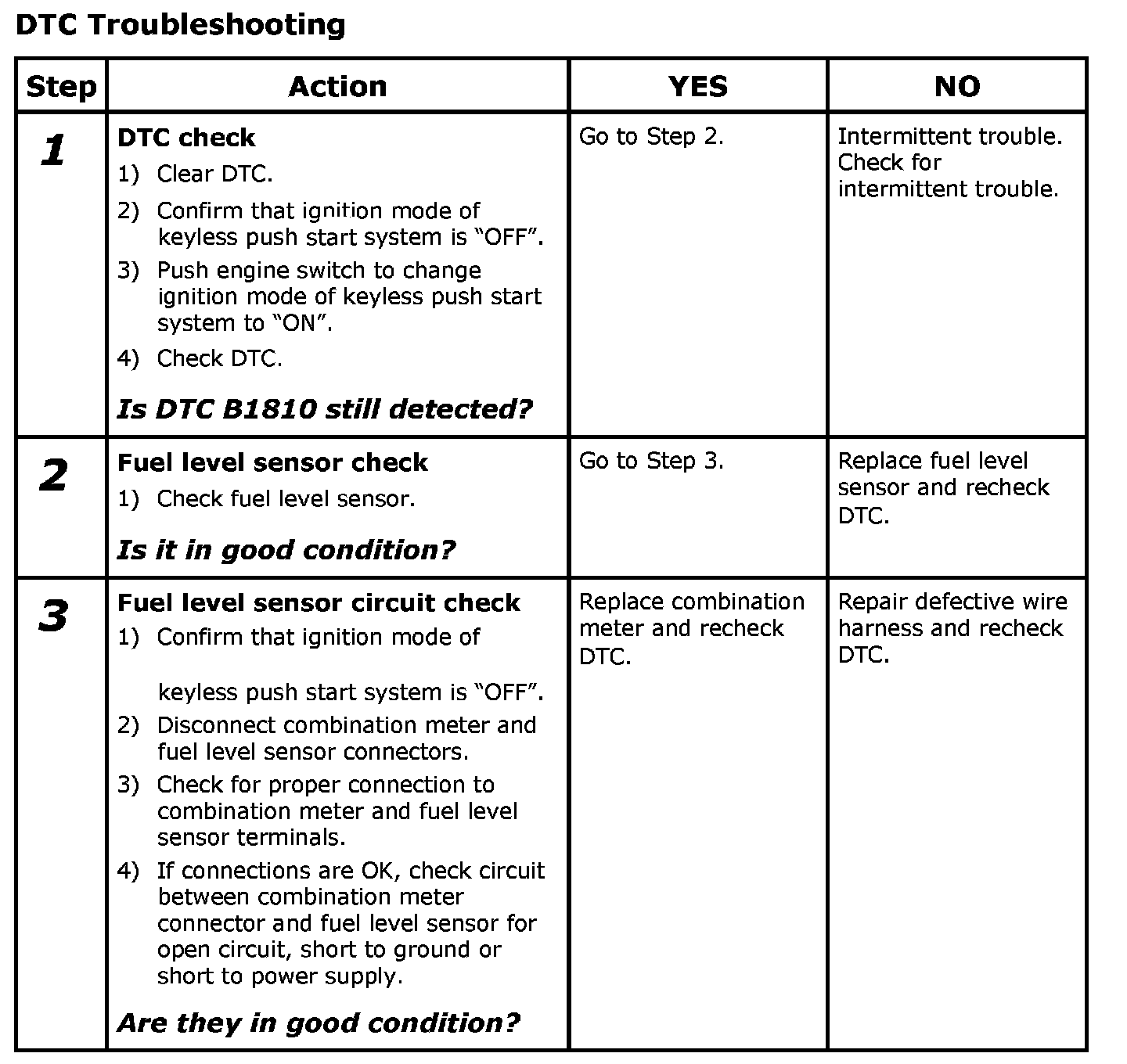

DTC Troubleshooting


Step 1-3:
