B1802

DTC B1802

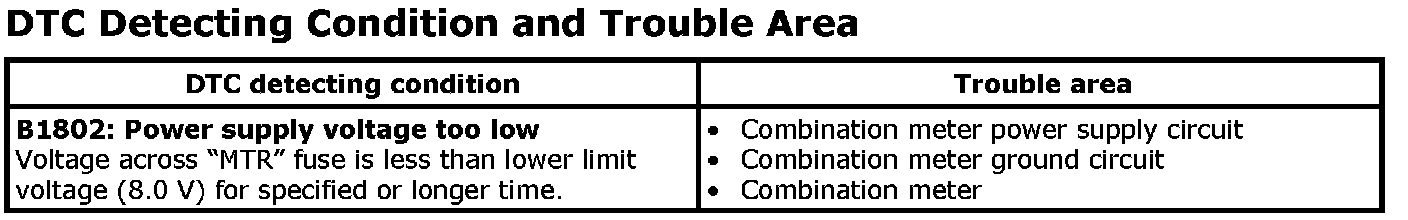

DTC Detecting Condition and Trouble Area

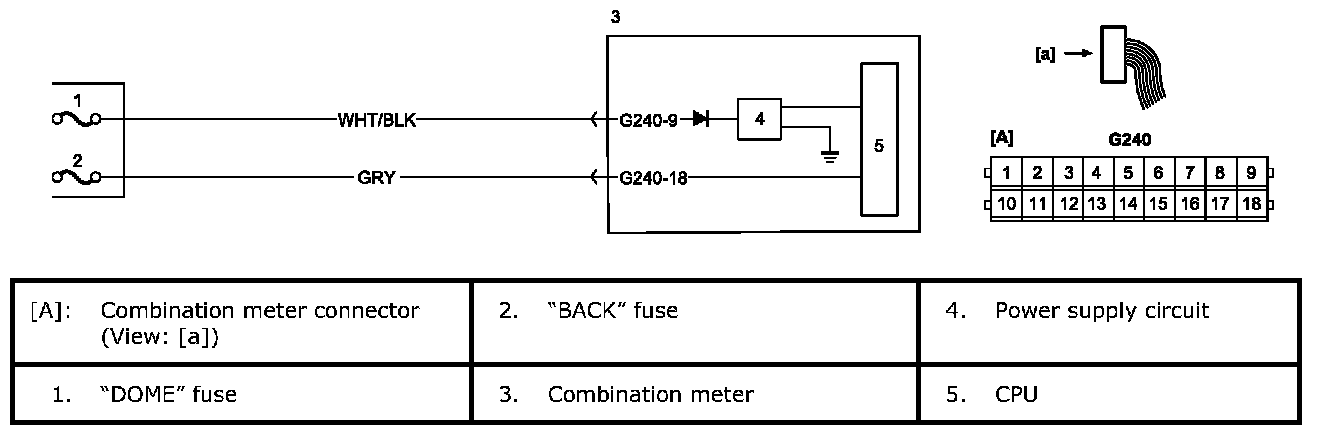

Circuit Diagram


Circuit Diagram:

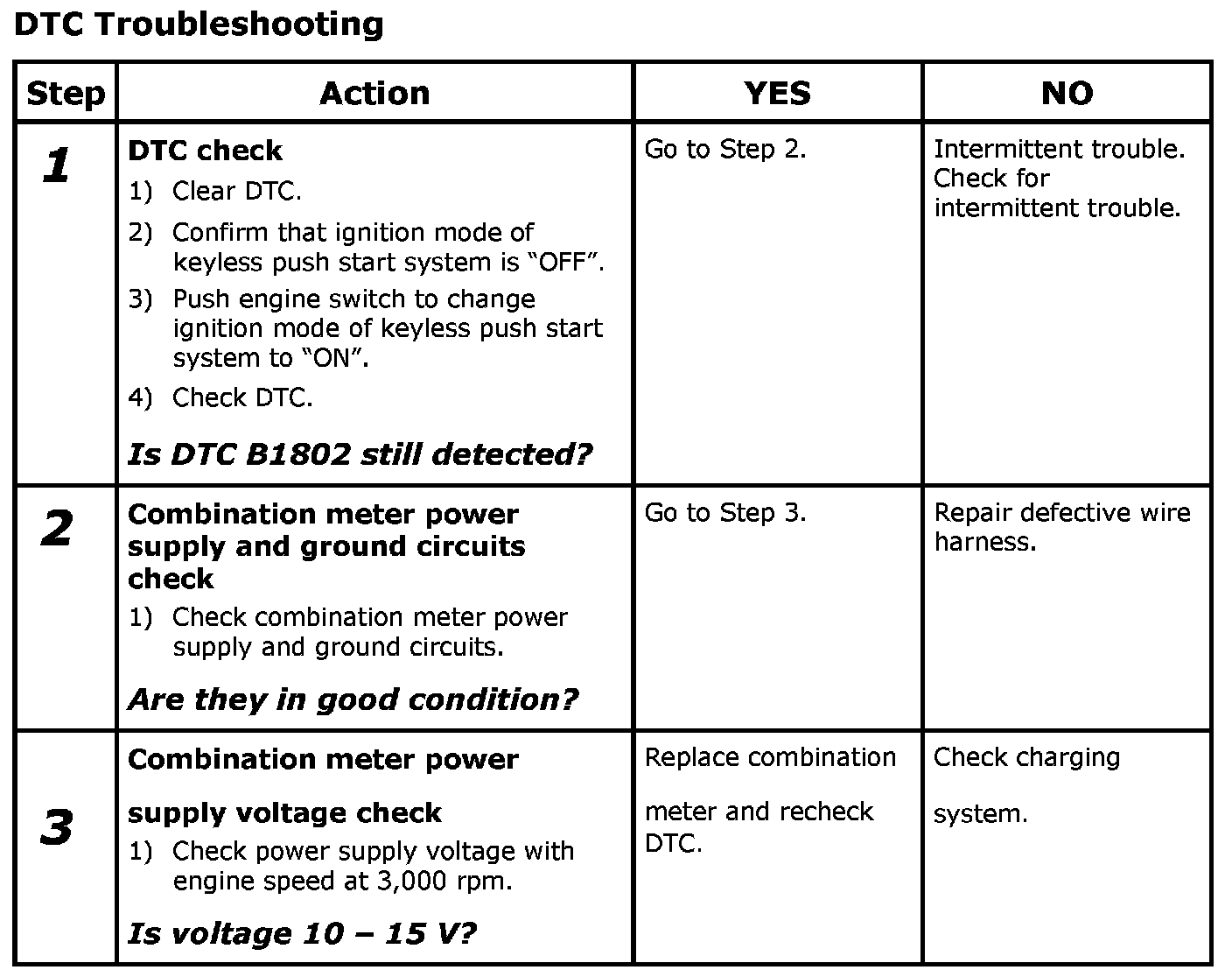

DTC Troubleshooting


Step 1-3:
