B1544

DTC B1544

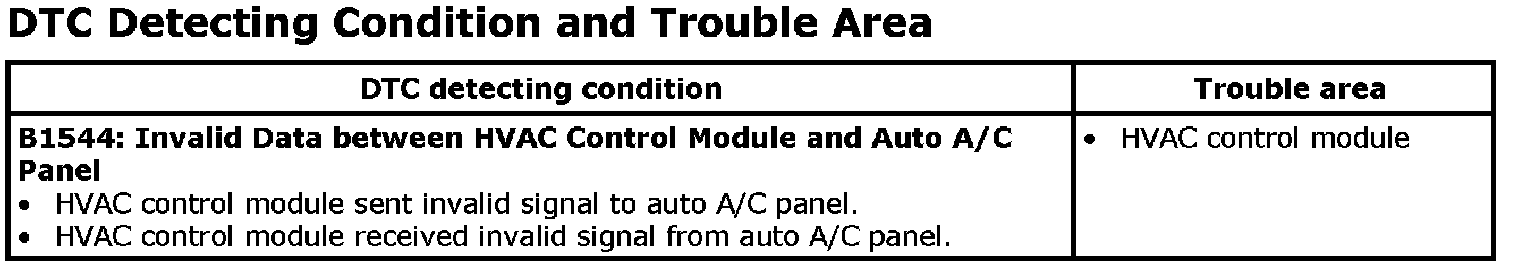

DTC Detecting Condition and Trouble Area






DTC Confirmation Procedure
1. Start engine and operate A/C system.

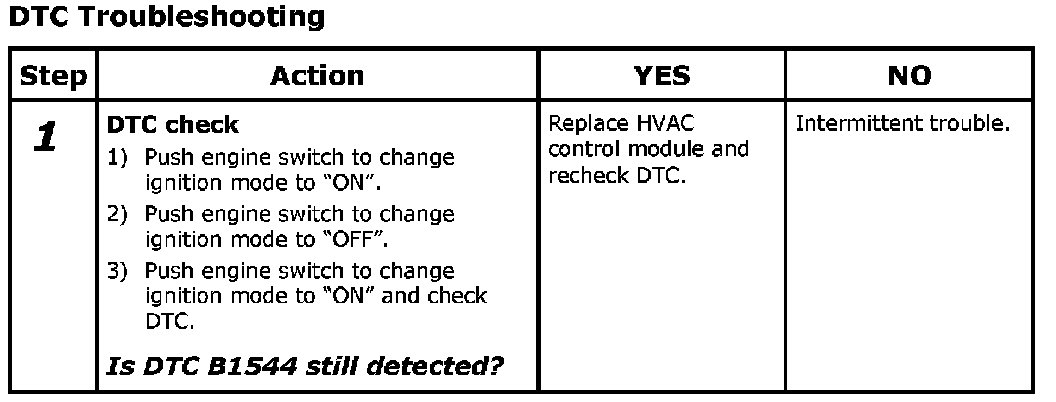

DTC Troubleshooting

Step 1:
